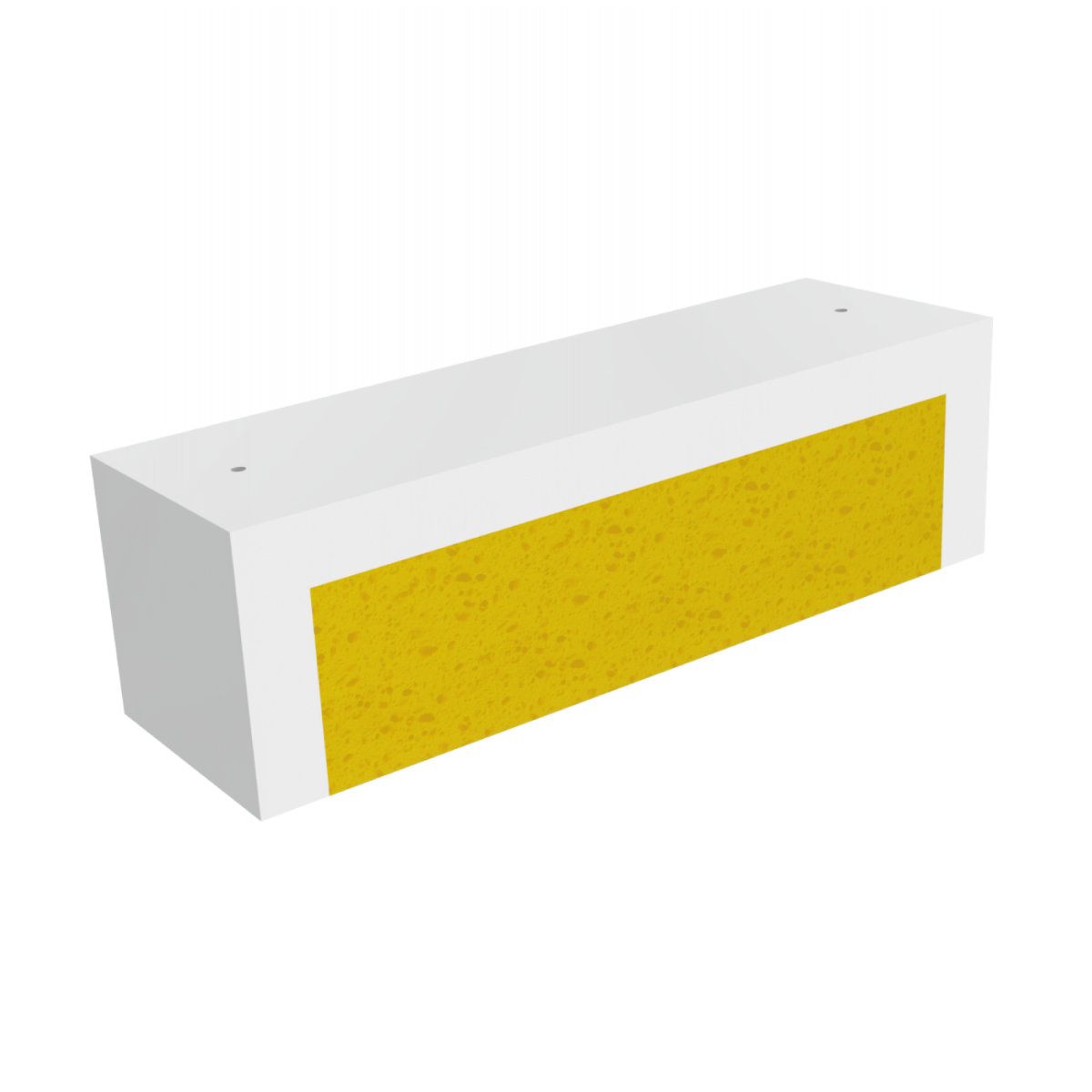

illustrative picture
KPS_PO_90_EN
| Código EAN | 8595568936097 |
| Elcodigo aduanero | 68069000 |
| Peso | 5,85 kg/pcs |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimensión A | 630 mm |
| Dimensión B | 200 mm |
| Dimensión C | 160 mm |
| Para la anchura de la bandeja | 500 - 550 mm |
| Para la altura de la bandeja | 60 mm |

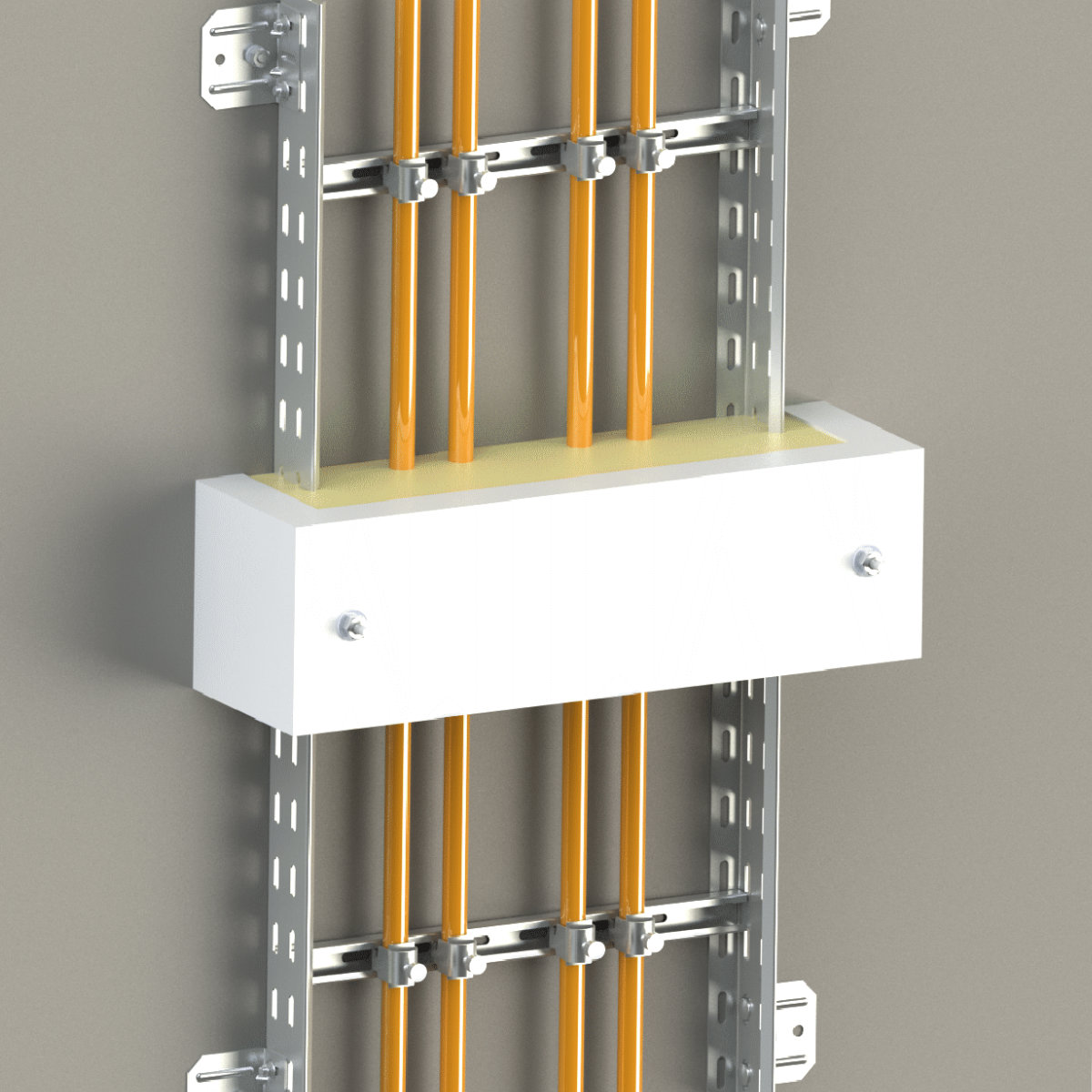

Note for system with maintained functionality in fire:
KPS cover includes insulation wool and a cartridge with insulation cement. Anchoring to the base material using MS KPS mounting kit. One mounting kit needs to be ordered for cover installation.
You find more information in the catalogue Systems with maintained functionality in fire.
