illustrative picture
SSU_EN
| Código EAN | 8595568938077 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,01 kg/pcs |
| Tratamiento superficial | Zn+Mg+Al galvanizing |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,5 mm |
| Cantidad de tornillos para la conexión | 8 |
| Dimensión H | 100 mm |
| Para la altura de la bandeja | 110 mm |

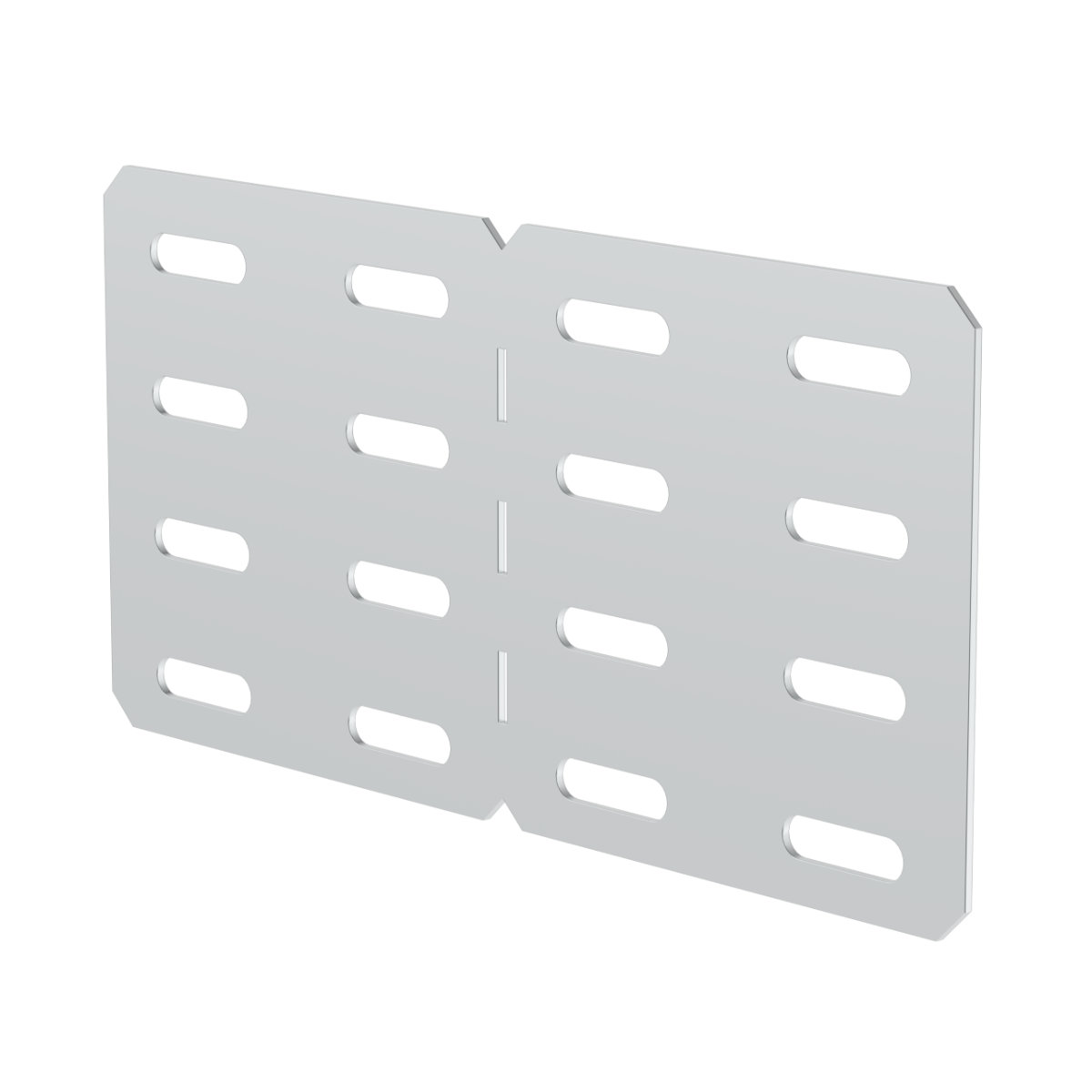

Angle couplings are used to create any angle, mainly for connecting in places of a slight bend in the route or for creating arcs of large radii or bypassing columns and pillars. The connection is performed using the bolts NSM 6X10. These items can also be ordered in a varnished version.
