illustrative picture
| Código EAN | 8595568940759 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,3298 kg/unidad |
| Tratamiento superficial | Stainless steel AISI 304 |
| Corresponde a las normas | ČSN EN 61537 |
| Carga máxima | 130 kg |
| Dimensión A | 270 mm |
| Dimensión B | 64 mm |
| Para la anchura de la bandeja | 250 mm |

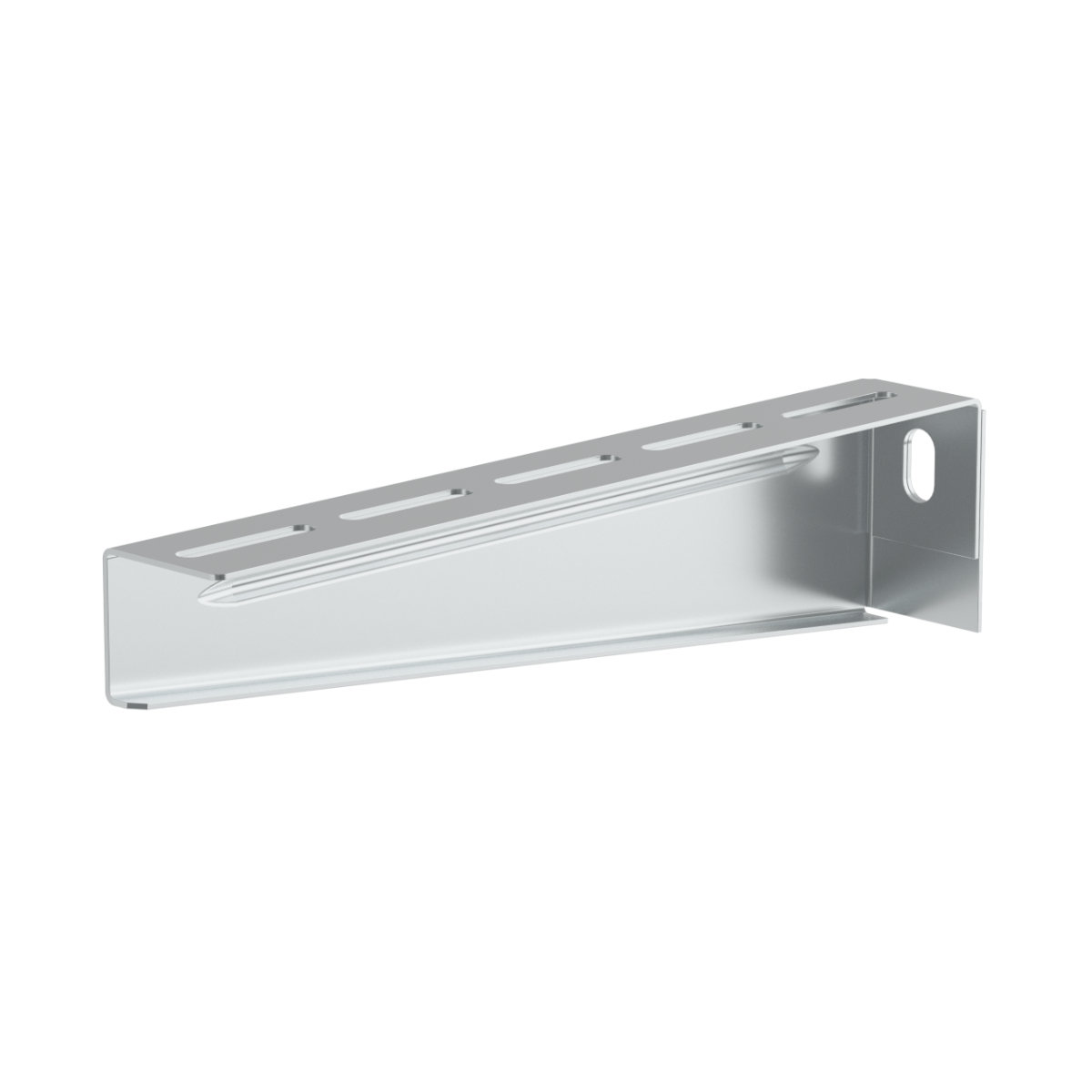

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
INOXDS_EN
