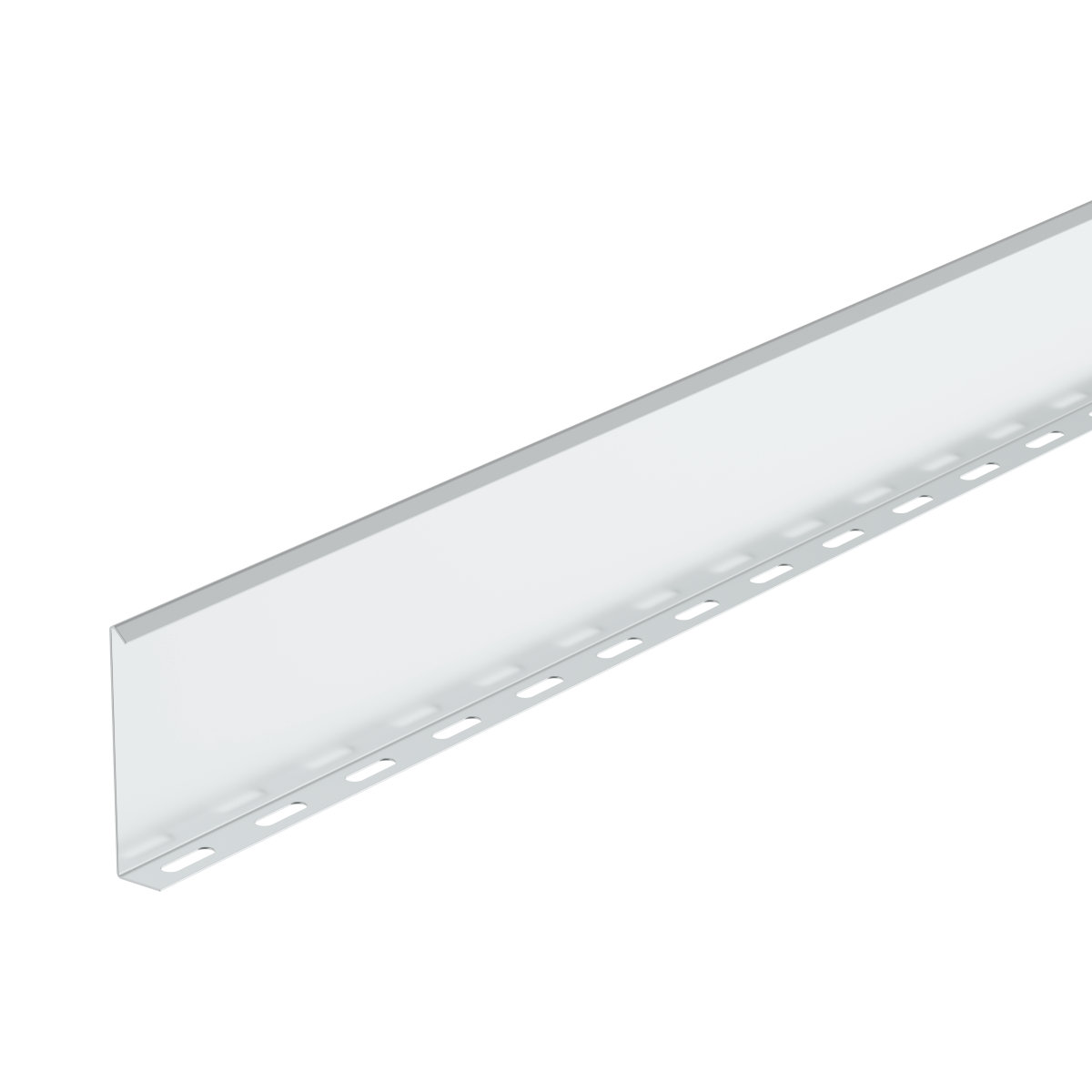

illustrative picture
To download 3D models, please login or create an account and request access.
NPZ_EN
| Código EAN | 8595568942418 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,6950 kg/m |
| Tratamiento superficial | Magnelis® |
| Resistencia térmica | -50 - 150 °C |
| Longitud | 2000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1 mm |
| Cantidad de tornillos para la conexión | 4 |
| Dimensión H | 94 mm |
| Para la anchura de la bandeja | 125 - 250 mm |
| Para la altura de la bandeja | 100 mm |
The fixing of the partition is carried out by bolts NSM 6X10. The partition serves to spatial separation of cables and ducting of different networks and functions. As well as it serves to separation of particular kinds of ducting from the viewpoint of electric compatibility. For this purpose there is recommended to use the lid and by this to create the closed shielded space.
