Código EAN8595568942227
Elcodigo aduanero85369010
Peso0,7641 kg/unidad
Ensayo de hilo incandescente650 °C
Protección mecánicaIK07
Ancho126 mm
Altura126 mm
Profundidad48 mm
Funcionalidad en fuegoP90-R, E90, PS90
Clase de protecciónIP40
Estándares de resistencia al fuegoČSN 73 0895, DIN 4102-12, STN 92 0205

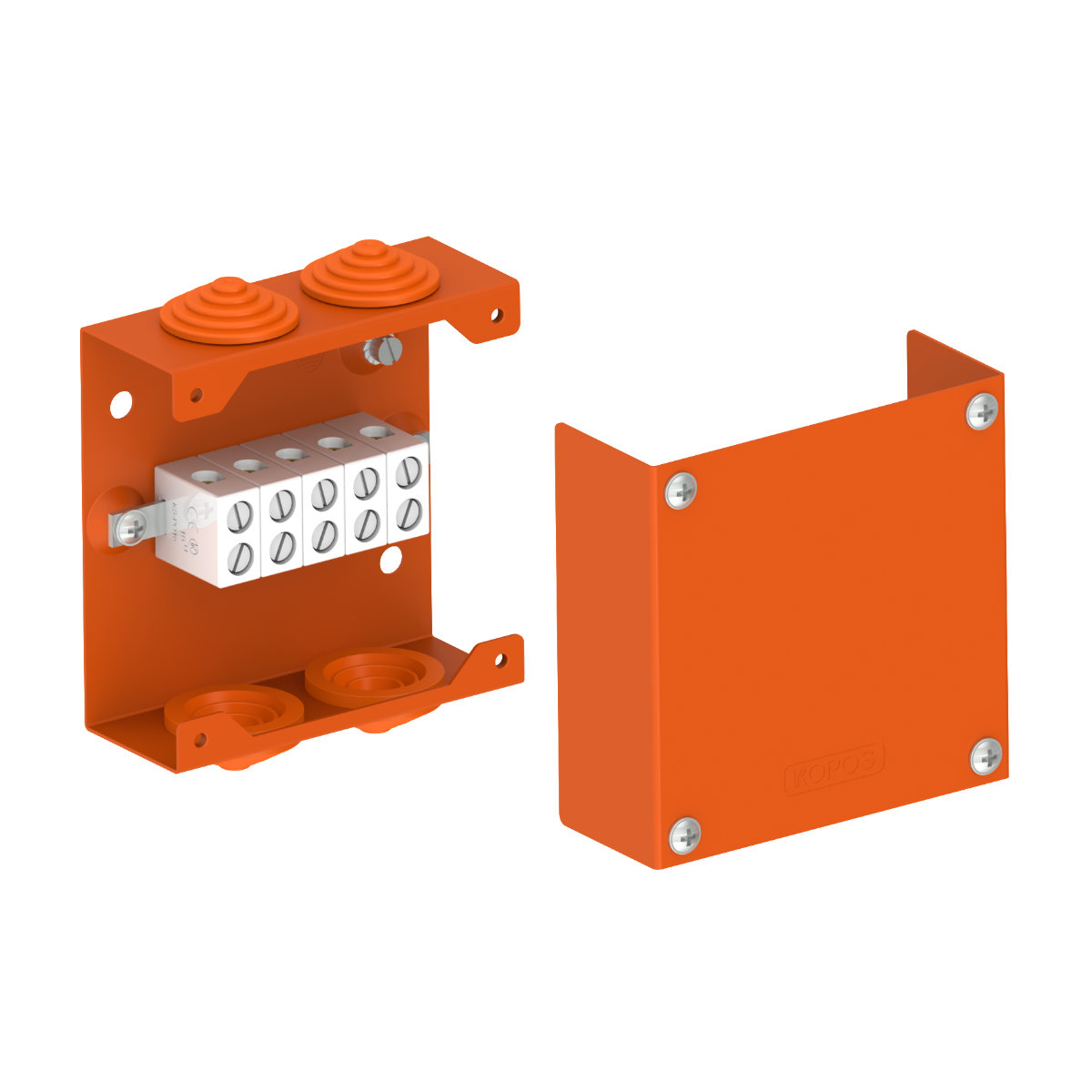

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with power cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
