Código EAN | 8595057615908 |
Elcodigo aduanero | 39259020 |
Peso | 0,36 kg/m |
Color | white |
Material | PVC |
Material sin plomo | yes |
Autoextinguible | 30 s |
Resistencia térmica | -5 - 60 °C |
Ensayo de hilo incandescente | 850 °C |
Resistencia al impacto | 1 J |
Antibacterial | yes |
Ancho | 63 mm |
Altura | 24,5 mm |
Longitud | 2,6 m |
Área interior | 560 mm2 |
Comprensión The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
Áreas con el peligro de explosión Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
Clase de reacción al fuego | A1 - F |
Clase de protección | IP 40 |
Corresponde a las normas | ČSN EN 50 085-1 |
La descripción del embalaje | package - carton |

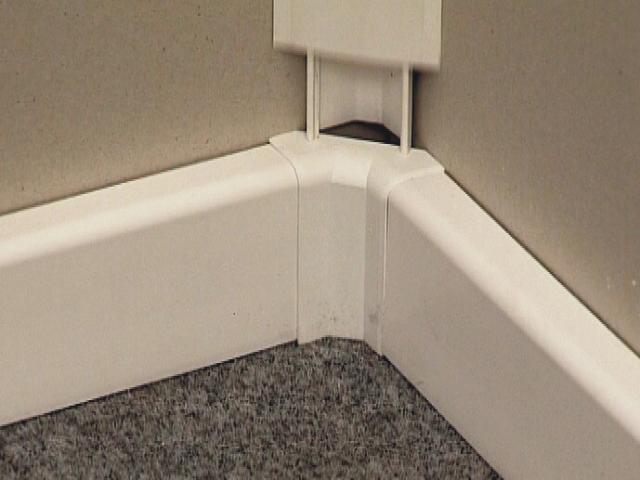

Designed for installation in the corner between the floor and wall of the room as well as between two walls, or wall and ceiling. Length adjusted to standard room height. Lid edge manufactured with softened material for better adhesion to the foundation. Registered industrial design.
