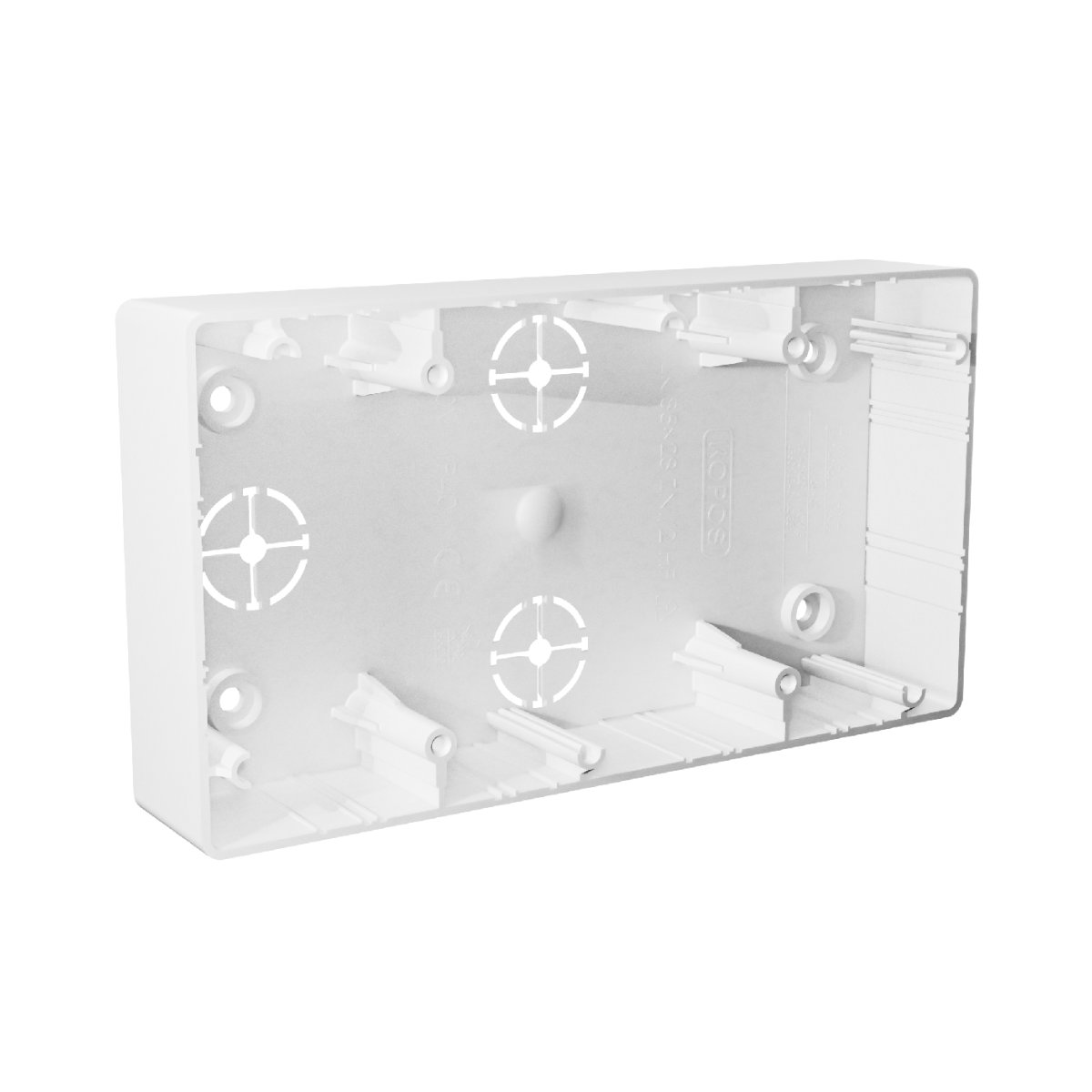

illustrative picture
LK85X28ZNI2_HF_EN
| Código EAN | 8595568942104 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0519 kg/unidad |
| Color | white |
| Material | PC-ABS |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Ancho | 155 mm |
| Altura | 85 mm |
| Profundidad | 28 mm |
| Clase de reacción al fuego | A1 - D |
| Extendida reacción al fuego del material subyacente Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Trunking box designed for devices from the ABB Zoni product line, offering large installation depth. Suitable for installation on materials with reaction-to-fire classes A1 to D. The box is equipped with fixing posts to ensure accurate device positioning.
