| Código EAN | 8595568942159 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,1050 kg/unidad |
| Color | orange + gray |
| Material | PP+TPE |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Voltaje nominal | 500 V |
| Resistencia térmica | -25 - +60 °C |
| Resistencia instantánea a la temperatura | 90 °C |
| Ensayo de hilo incandescente | 650 °C |

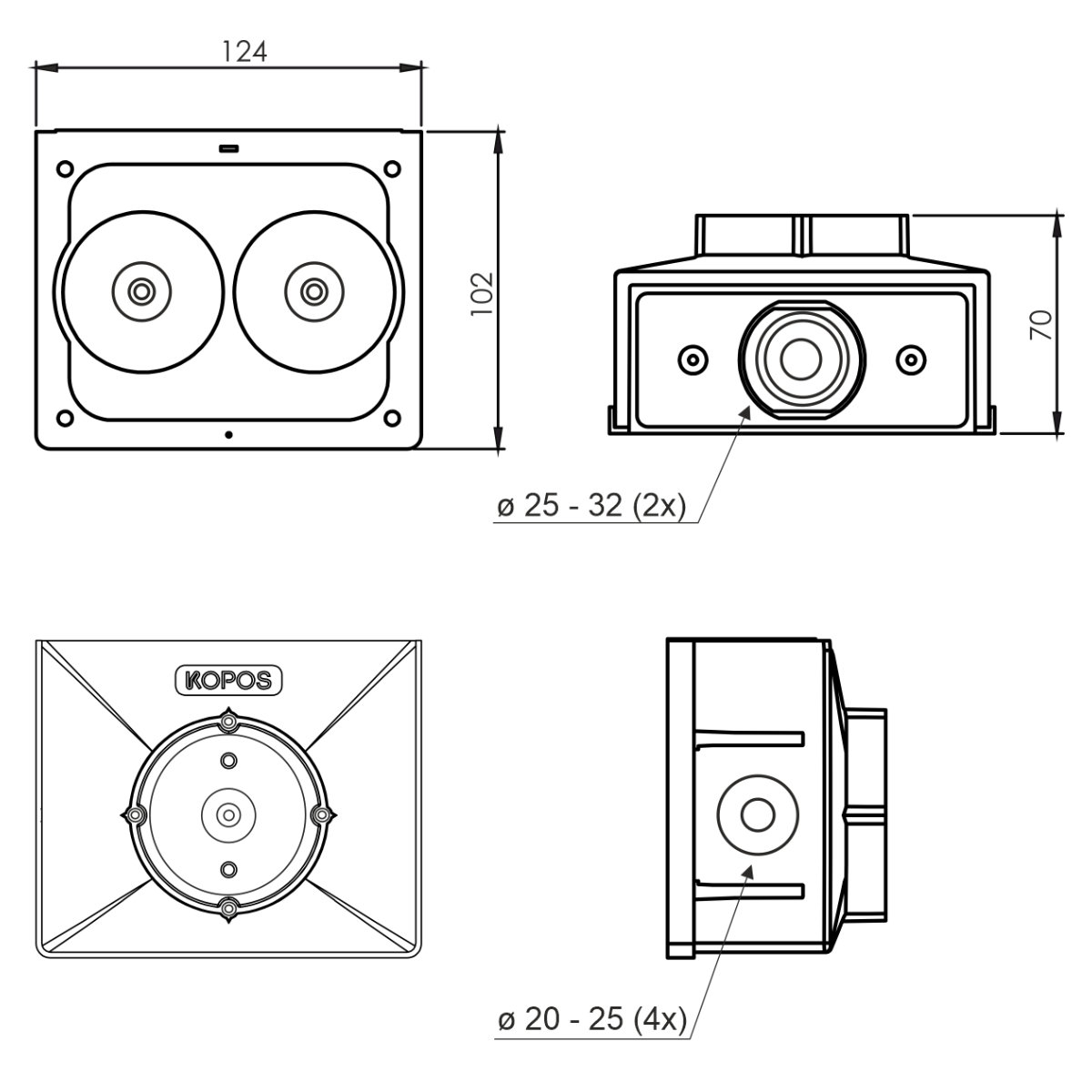

| Medio | 60 mm |
| Ancho | 102 mm |
| Altura | 124 mm |
| Profundidad | 70 mm |
| Clase de reacción al fuego | A1 |
| La descripción del embalaje | boxes in shrink wrap |

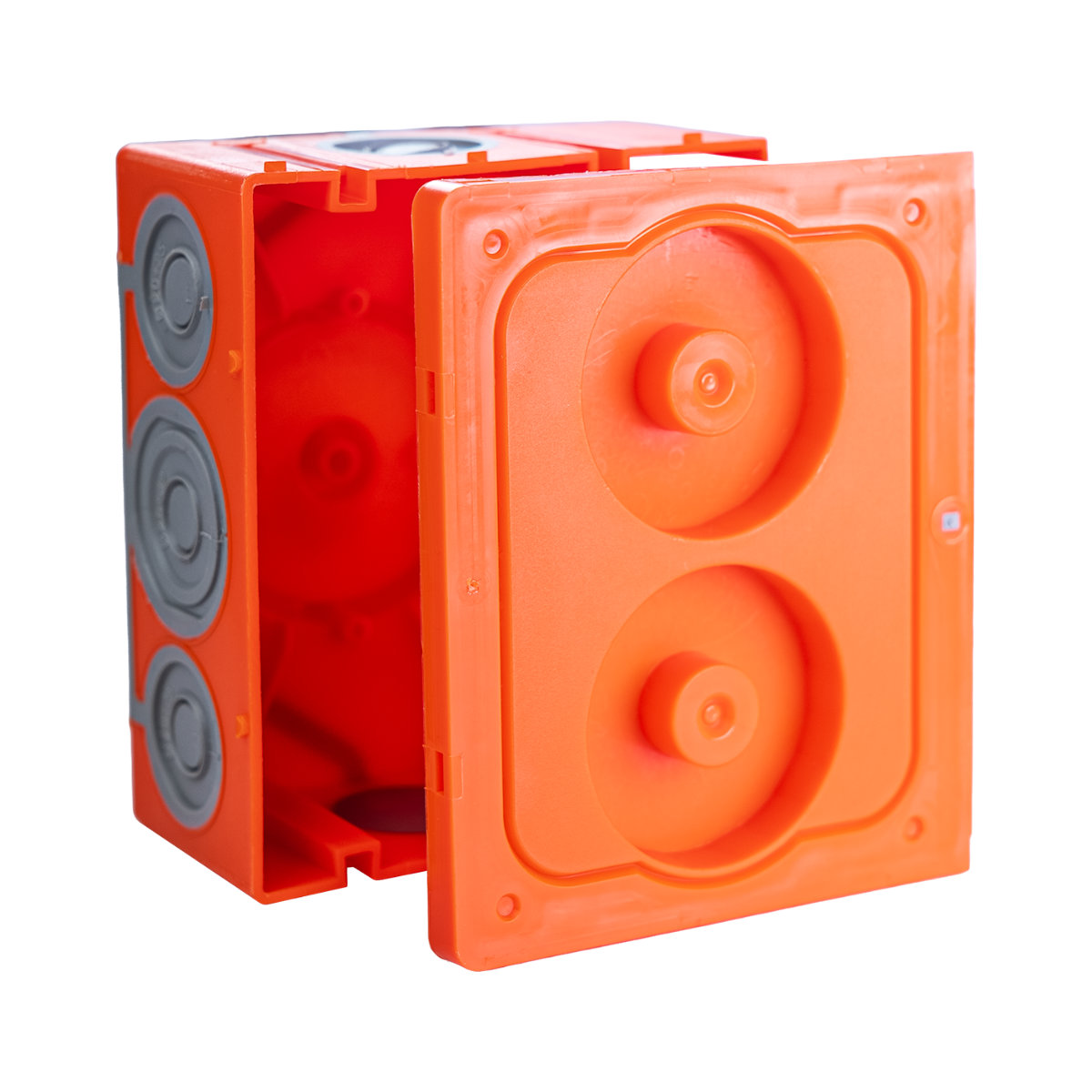

Serves as a transition box between the wall and the ceiling for prefabricated concrete parts, or as a classic device box with a large internal space, or as a larger distribution box. The box consists of two parts that snap into each other. Allows fixation to metal formwork using SB-M1 holding magnets, by directly hammering into the formwork or using SB-MK 1 mounting wings on the armature (before snapping the box parts). The box contains soft entries for the installation of pipes ø 20-25 and ø 25-32, while maintaining the tightness of the installation.
