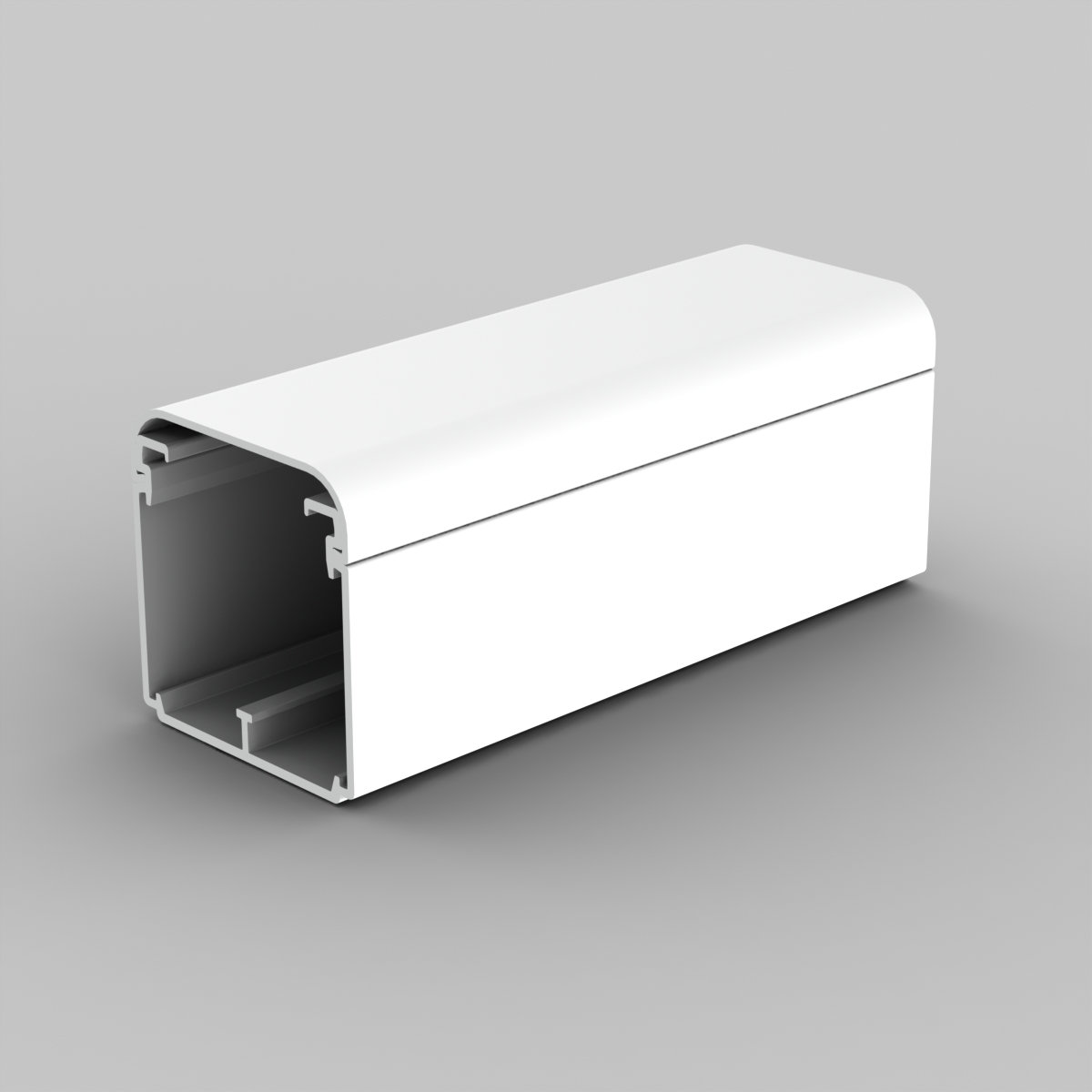

illustrative picture
To download 3D models, please login or create an account and request access.
| Código EAN | 8595057620766 |
| Elcodigo aduanero | 39259020 |
| Peso | 0,7500 kg/m |
| Color | white |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Resistencia térmica | -5 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Resistencia al impacto | 2 J |
| Antibacterial | yes |

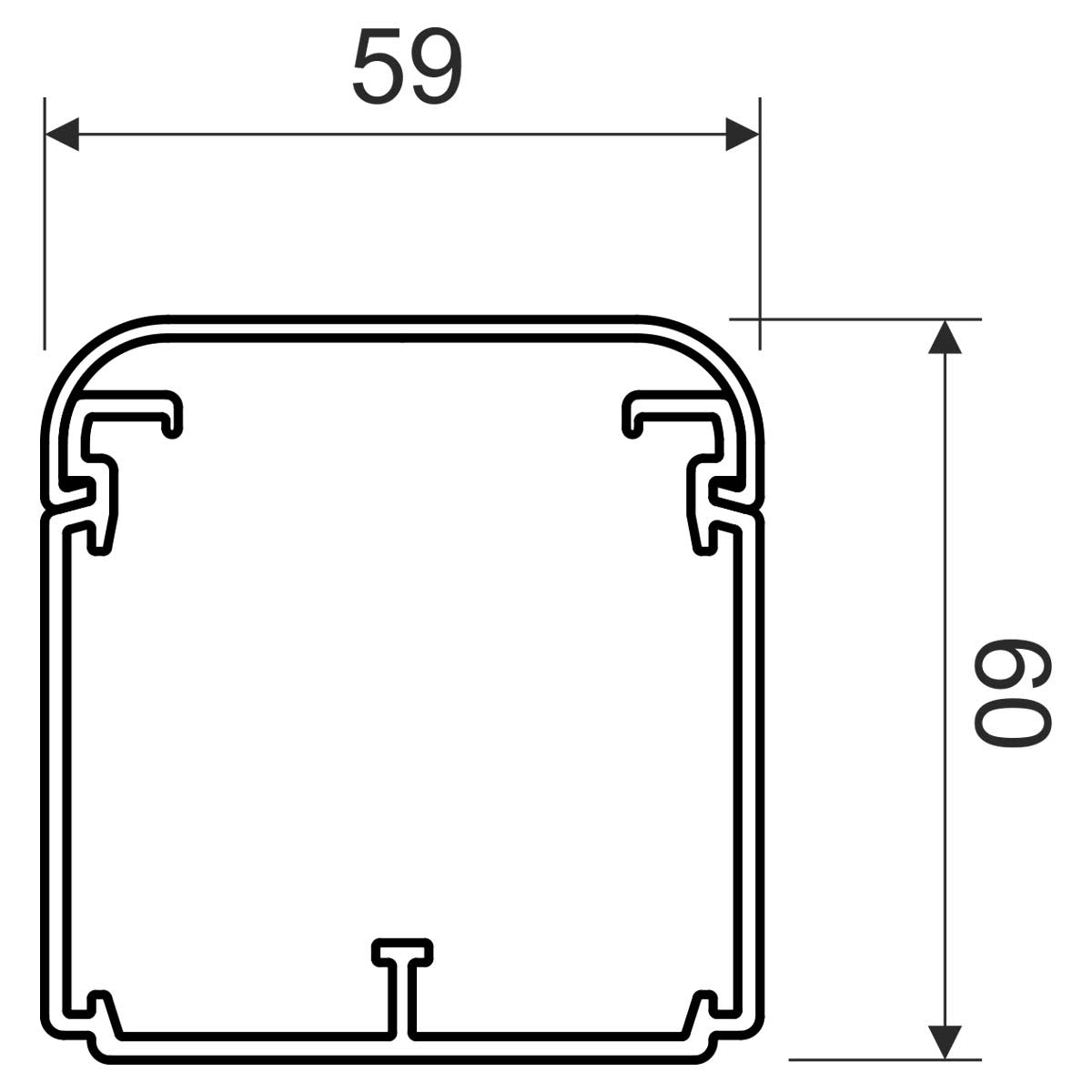

| Ancho | 59 mm |
| Altura | 60 mm |
| Longitud | 2 m |
| Área interior | 2600 mm2 |
| Comprensión The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Uso they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Áreas con el peligro de explosión Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 20 |
| Corresponde a las normas | ČSN EN 50 085-1 |
| La descripción del embalaje | package - cardboard |
| Lámina protectora | yes |
It is designed for inserting multiple cables or cables of larger diameters. Possibility to insert PEKE 60 and PKS 70/60 partition walls. Spacers are included in the package – always 1 pc per 1 m. Registered industrial design.
