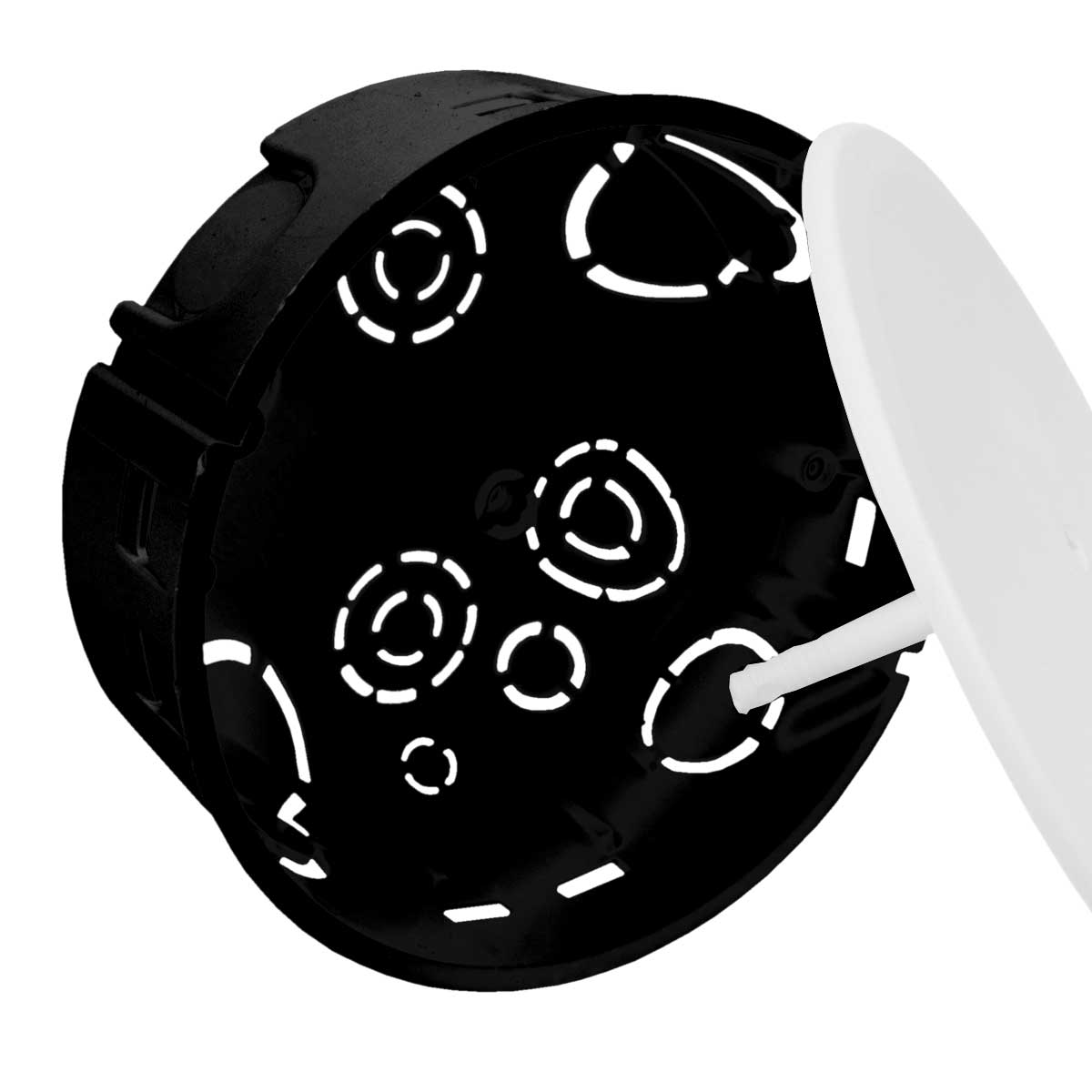

illustrative picture
To download 3D models, please login or create an account and request access.
KOM97HF_EN
| Código EAN | 8595057635012 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0625 kg/unidad |
| Material | PC-ABS |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -20 - +80 °C |
| Ensayo de hilo incandescente | 850 °C |

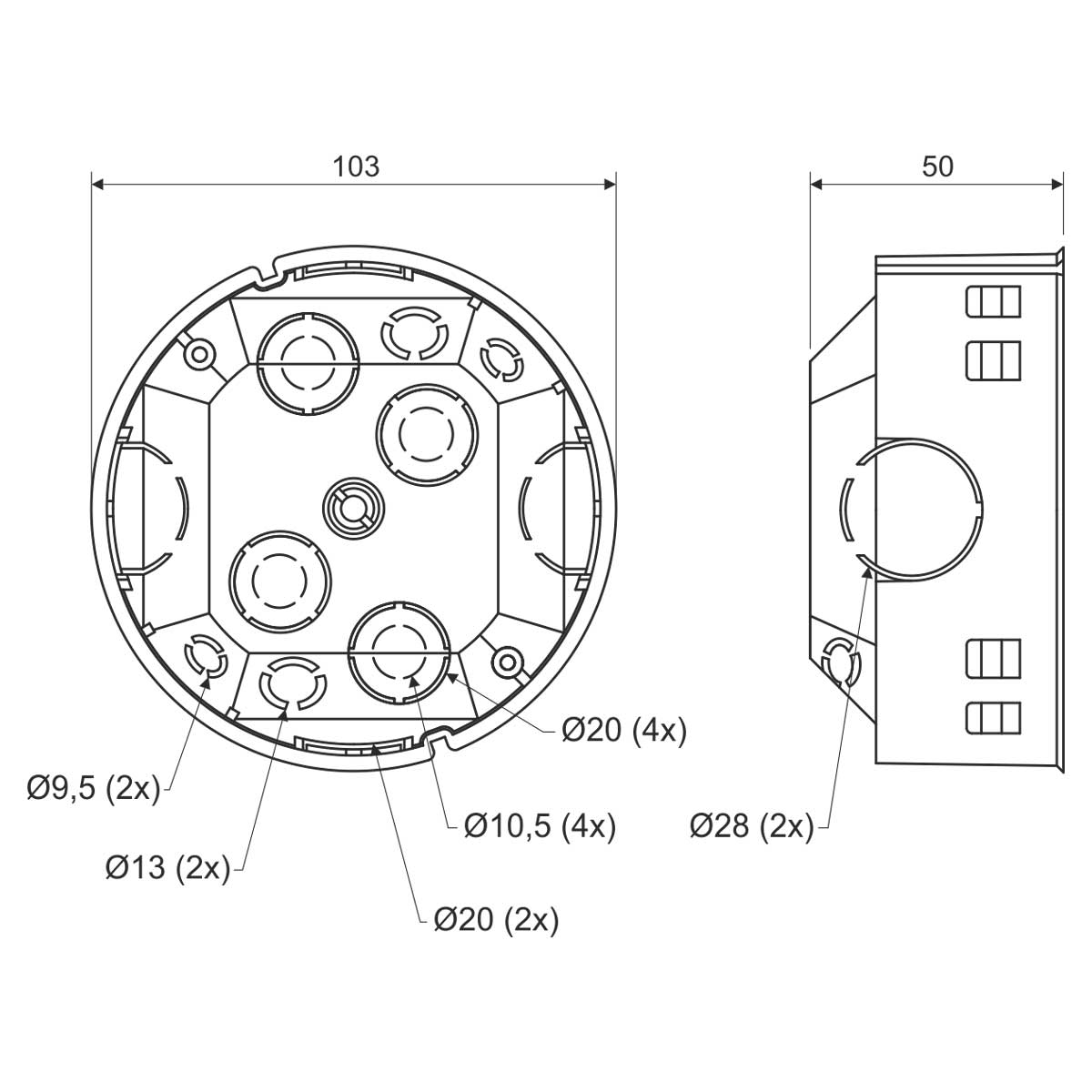

| Medio | 103 mm |
| Profundidad | 50 mm |
| Clase de reacción al fuego | A1 - D |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje | boxes and lids freely wrapped in cardboard |
For premises with increased need for protection of persons and property. Lid KO 97 V/1HF can be ordered separately.
