illustrative picture

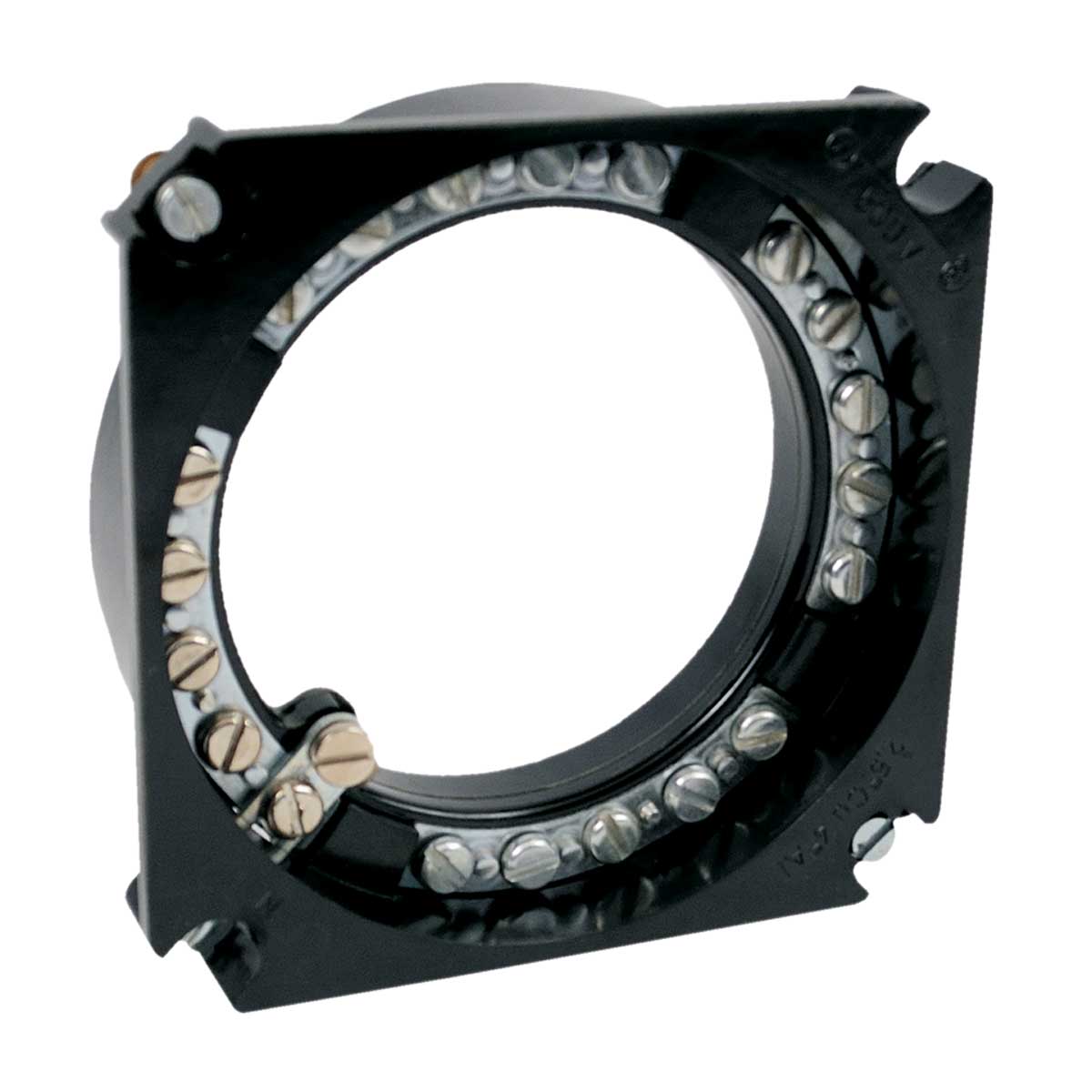

6303-12 FB - svorkovnice
Código EAN8595057644960
Elcodigo aduanero85369010
Peso0.09 kg/pcs
Colorblack (can be supplied in white)
Autoextinguible30 s
Voltaje nominal<= 500 V
Resistencia térmica-30 - 105 °C
Ensayo de hilo incandescente850 °C
Ancho105 mm
Altura105 mm
Espesor28 mm
Clase de reacción al fuegoA1 - F
La descripción del embalaje
packed in cardboard, intended for metal boxes 7121 a 7221

6303-12: four separate fields for connecting up to five conductors of up to 4 mm2. When used with terminal plate with box with protective terminal, ground connection must be removed.
