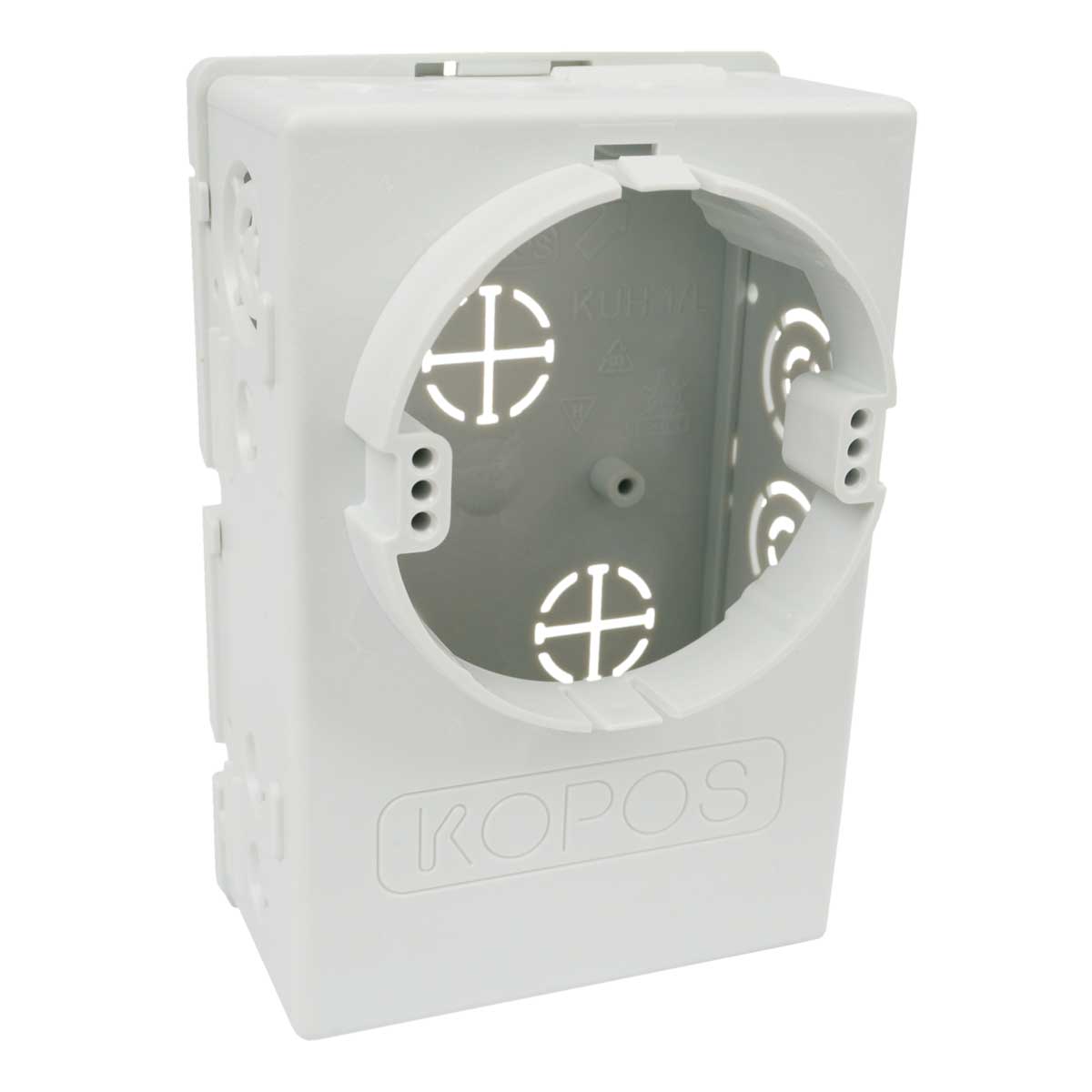

illustrative picture
To download 3D models, please login or create an account and request access.
KUH1_EN
| Código EAN | 8595057688445 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,14 kg/pcs |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |

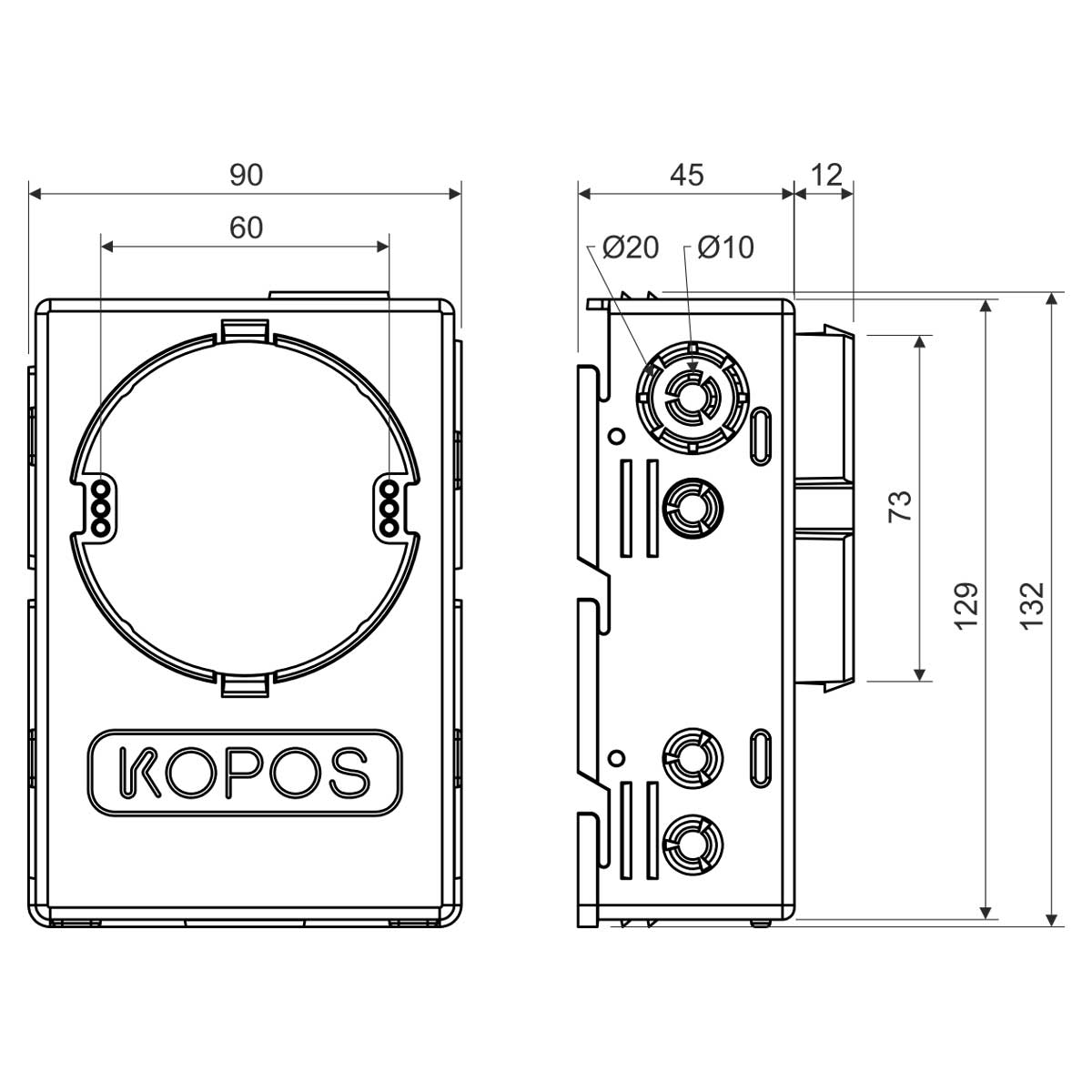

| Medio | 73 mm |
| Ancho | 90 mm |
| Altura | 132 mm |
| Profundidad | 57 mm |
| Clase de reacción al fuego | A1 - D |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje boxes are individually wrapped in a shrink foil, the instrument screws are packed | |
More space in the box allows the insertion of active elements under the device. Possibility to insert the terminal S-66 directly under the device. Suitable for modern electrical system with higher space requirements.
