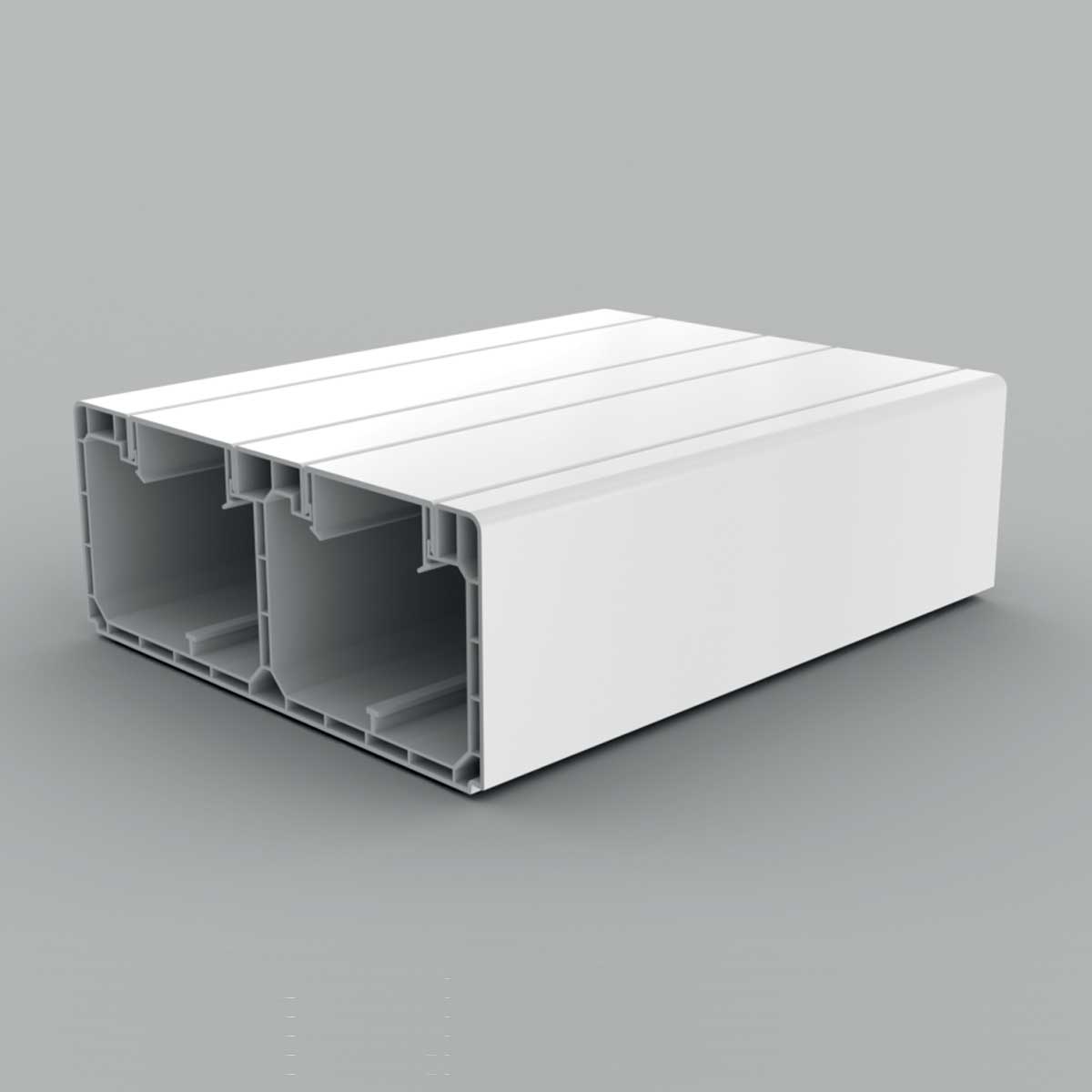

illustrative picture
PK 160X65 D HD - parapetní kanál dutý
To download 3D models, please login or create an account and request access.
Código EAN8595057657205
Elcodigo aduanero39259020
Peso1,54 kg/m
Colorwhite
MaterialPVC
Material sin plomoyes
Autoextinguible30 s
Resistencia térmica-5 - 60 °C
Ensayo de hilo incandescente850 °C
Protección mecánicaIK07
Resistencia al impacto1 J
Antibacterialyes
Ancho158 mm
Altura64 mm
Longitud2 m
Área interior3800, 3600
Comprensión
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Uso
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Recomendaciones del fabricante
The producer recommends checking the depth of a particular device before installation.
Áreas con el peligro de explosión
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Clase de reacción al fuegoA1 - F
Clase de protecciónIP 40
Corresponde a las normasČSN EN 50 085-1
La descripción del embalajepackage - cardboard
Lámina protectorayes

Designed for installation of modular devices 45x45 or 45x22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g. ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira with maximal depth of 52 mm. To separate the circuits, PEKE 60 or PKS 70/60 can be used. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument.
