PP80_K5_EN
| Código EAN | 8595057699571 |
| Elcodigo aduanero | 39259080 |
| Peso | 1,47 kg/pcs |
| Color | dark grey RAL 7012 |
| Material | PA |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Resistencia térmica | -5 - 105 °C |
| Ensayo de hilo incandescente | 850 °C |

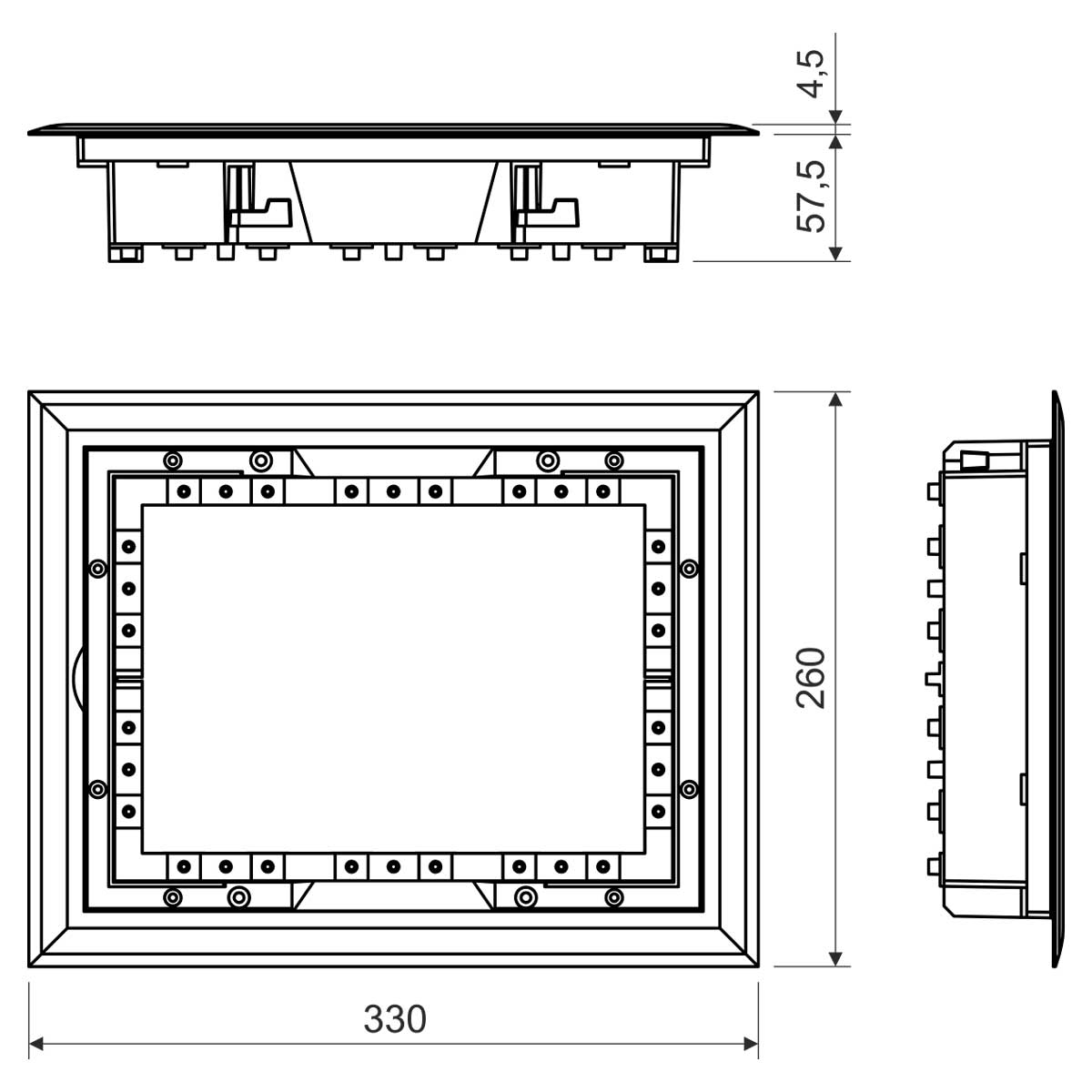

| Ancho | 330 mm |
| Altura | 260 mm |
| Profundidad | 62 mm |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 30 |
Designed for installation into the floor box KUP 80. Use as a blind cover for threading cables. After frame installation, put the final flooring on support sheet metal; the frame is not designed for device installation. Additional device installation is possible only when you change the frame on KOPOBOX 80. After installing the box, the final floor covering of a maximum height of 8 mm is laid on the support plate. The proposition of hole to insert the floor box is 218 x 288 mm.
