PNQ_EN
| Código EAN | 8595568927378 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,08 kg/pcs |
| Color | white |
| Material | PVC |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - 60 °C |
| Ancho | 65,8 mm |
| Altura | 101 mm |
| Profundidad | 48,2 mm |
| Uso | for truniking LP 35 |
| Clase de reacción al fuego | A1 - F |

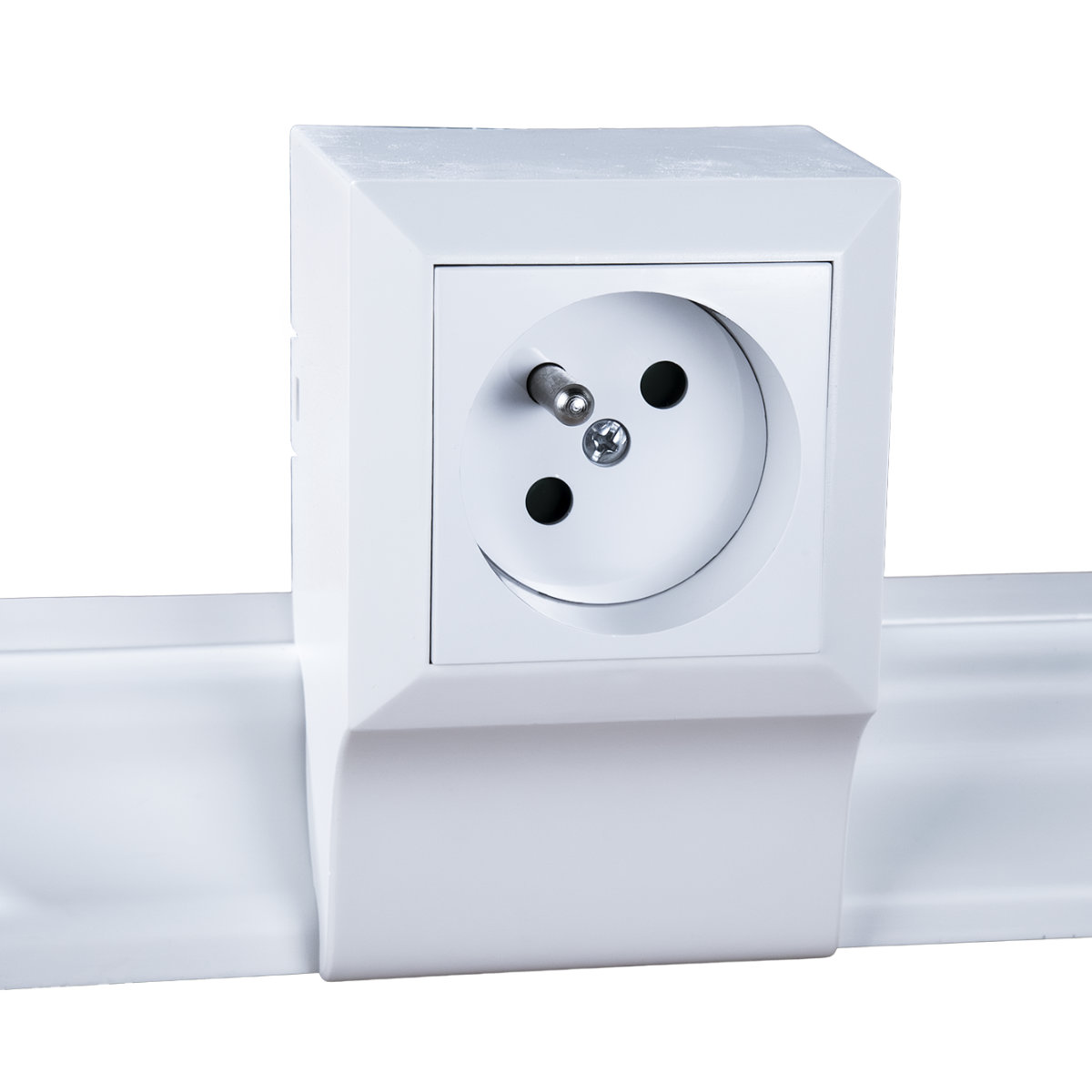

It consists of three parts - the carrier, the support frame and the cover. Intended for the assembly of modular instruments QUADRO suitable for 45 x 45 45 x 22,5 devices or other manufacturers.
