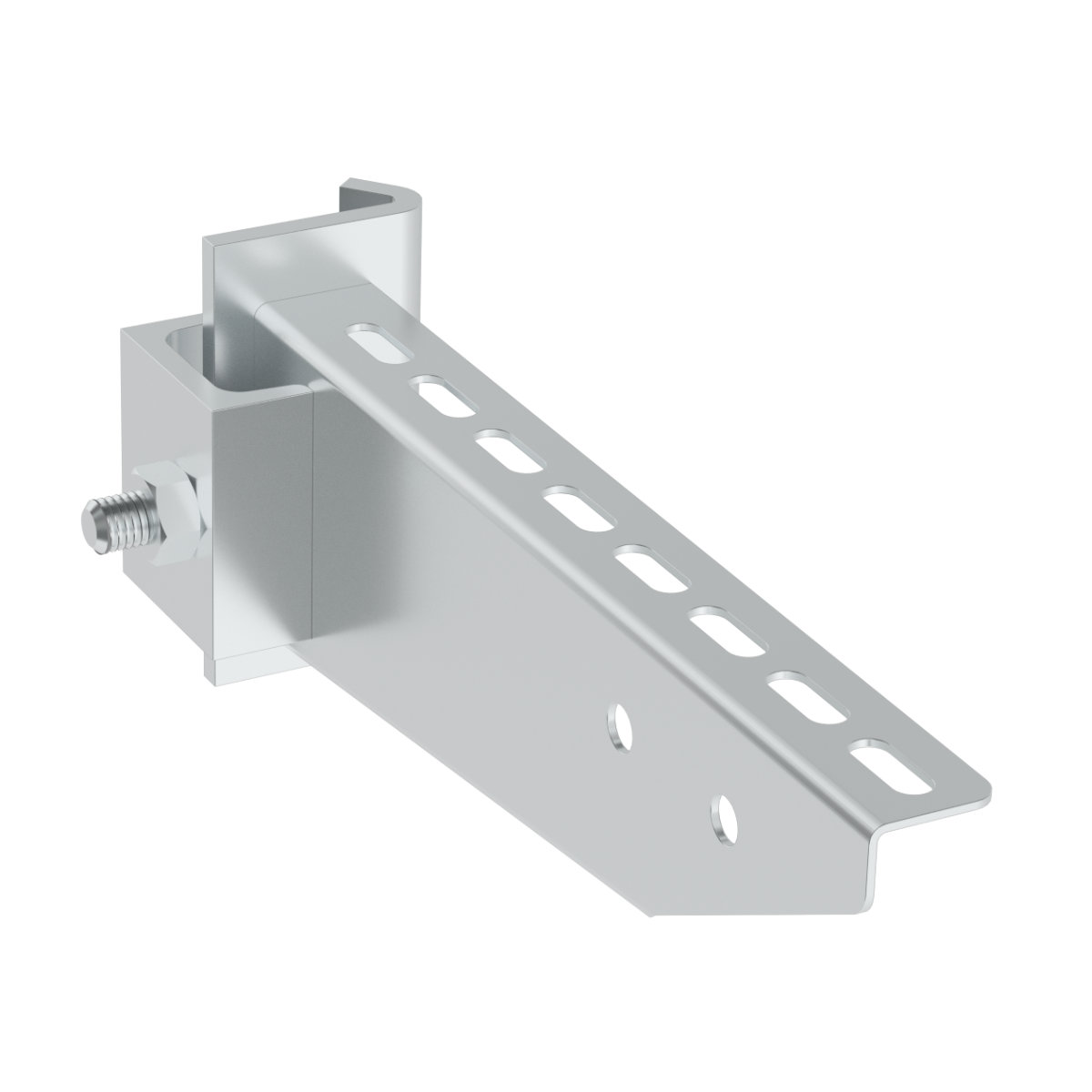

illustrative picture
To download 3D models, please login or create an account and request access.
DRT_EN
| Código EAN | 8595057639928 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,5135 kg/unidad |
| Tratamiento superficial | Hot Dip Galvanized |
| Carga máxima | 330 kg |
| Dimensión A | 220 mm |
| Dimensión B | 90 mm |
| Para la anchura de la bandeja | 200 mm |
| Para la altura de la bandeja | 35 - 110 mm |
Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
