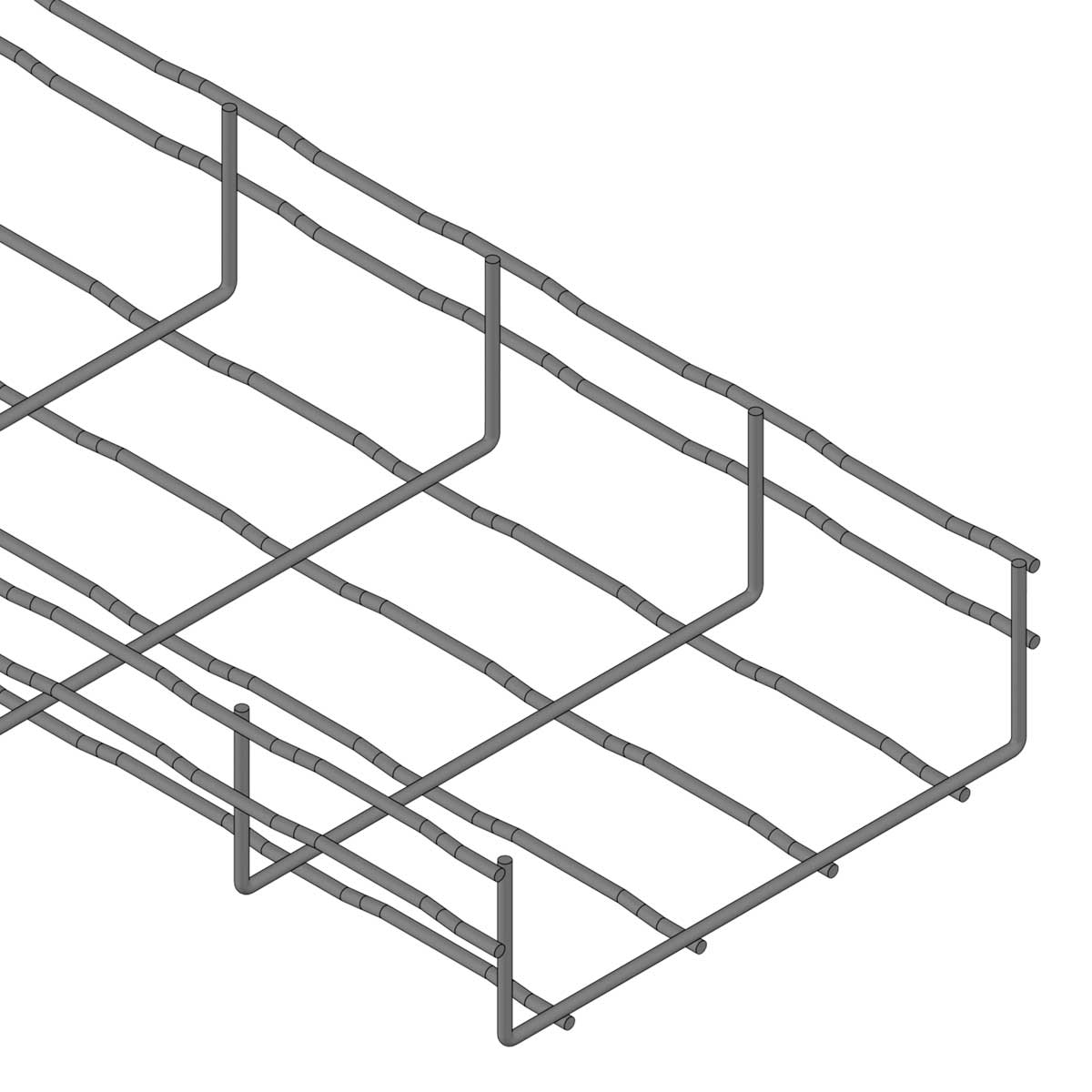

illustrative picture
To download 3D models, please login or create an account and request access.
DZ_EN
| Código EAN | 8595568903259 |
| Elcodigo aduanero | 73262000 |
| Peso | 2,37 kg/m |
| Tratamiento superficial | Hot Dip Galvanized |
| Ancho | 300 mm |
| Altura | 110 mm |
| Longitud | 3000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Diámetro del alambre | 4,3 mm |
| Reja inferior | 50x100 |
Wire cable trays are joined using the coupling DZS/B. Trays can be connected using the quick coupling DZRS/B or using the connection reinforcement plate DZSP/B.
