illustrative picture
To download 3D models, please login or create an account and request access.
INOXMP_EN
| Código EAN | 8595057630598 |
| Elcodigo aduanero | 72224050 |
| Peso | 1,79 kg/m |
| Tratamiento superficial | Stainless steel AISI 316L |
| Ancho | 41 mm |
| Altura | 21 mm |
| Longitud | 3000 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 2,5 mm |

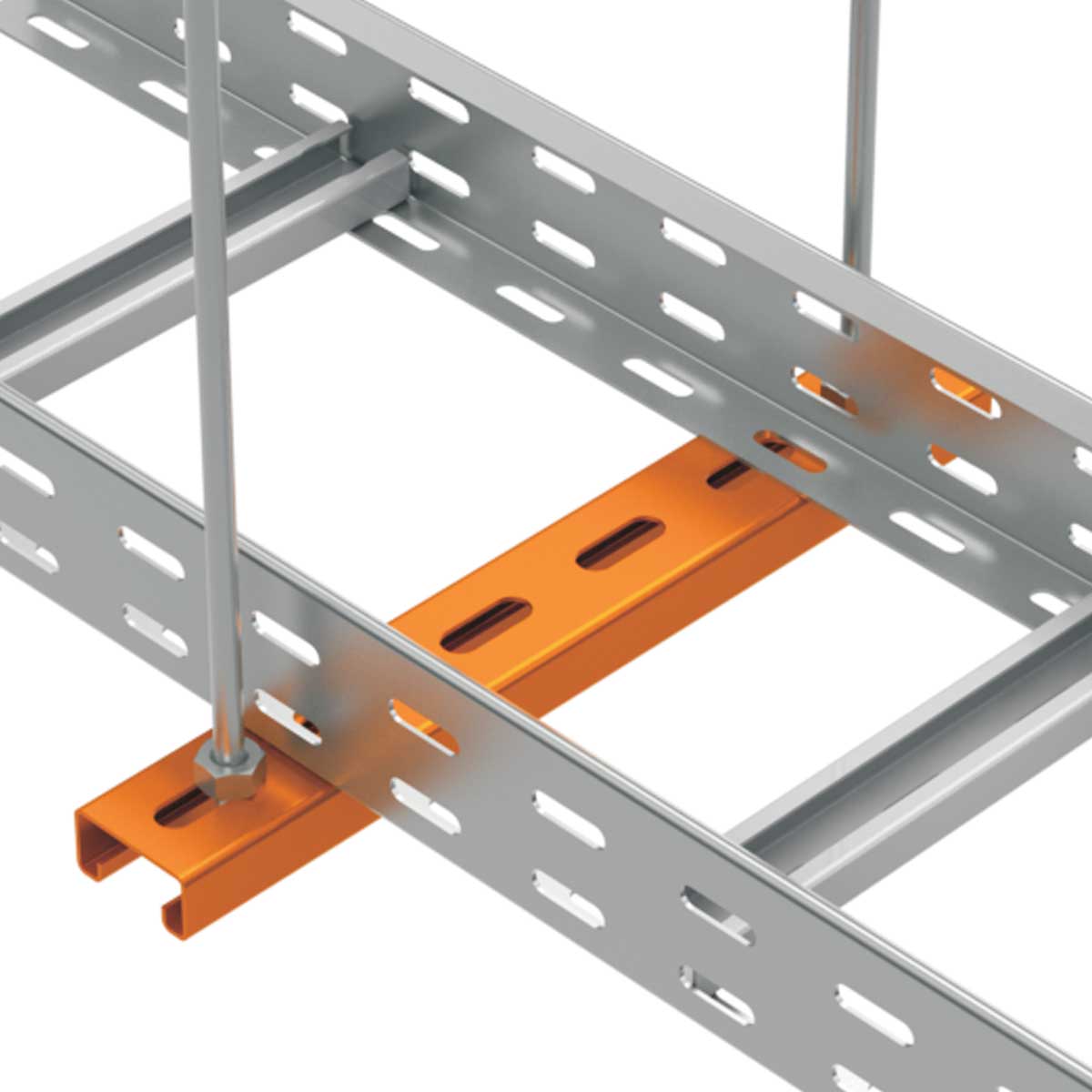

Suitable for creating of beam for cable traces to be carried on thread bars or for creating of supporting structure by help of assembling accessory VS.
Note for system with maintained functionality in fire:
It is used as a support for the installation of ladders or trays when placed on the threaded rods. PD and PVL washers must be put under the nuts.
You find more information in the catalogue Systems with maintained functionality in fire.
