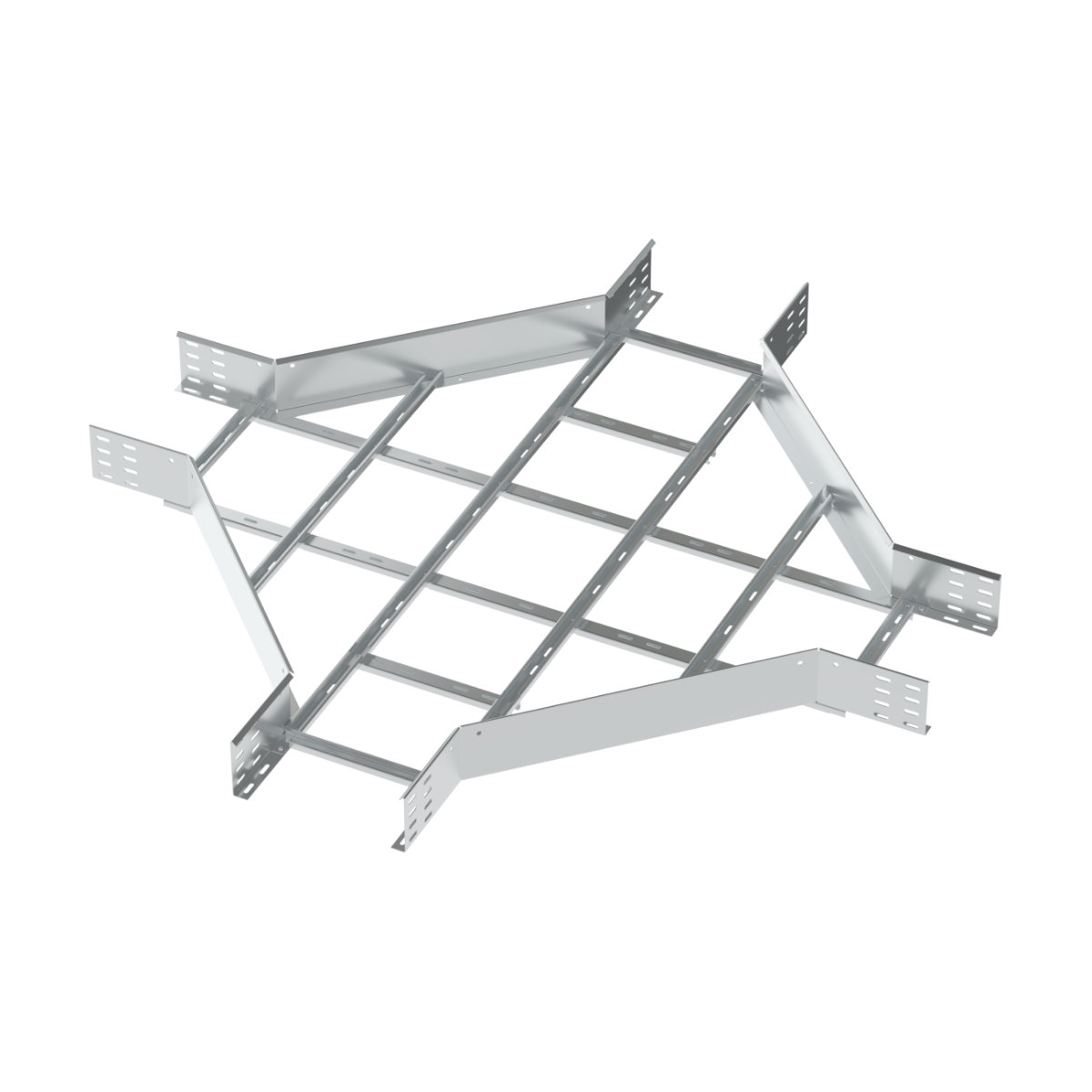

illustrative picture
To download 3D models, please login or create an account and request access.
KLKR_EN
| Código EAN | 8595057661684 |
| Elcodigo aduanero | 73089059 |
| Peso | 13,43 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,2 - 1,5 mm |
| Cantidad de tornillos para la conexión | 64 |
| Dimensión A | 300 mm |
| Dimensión B | 1500 mm |
| Dimensión H | 110 mm |
The connection of the cross-over with the ladder is performed by using the 8 pcs couplings S110X200 and 64 pcs bolts NSM 6X10.
