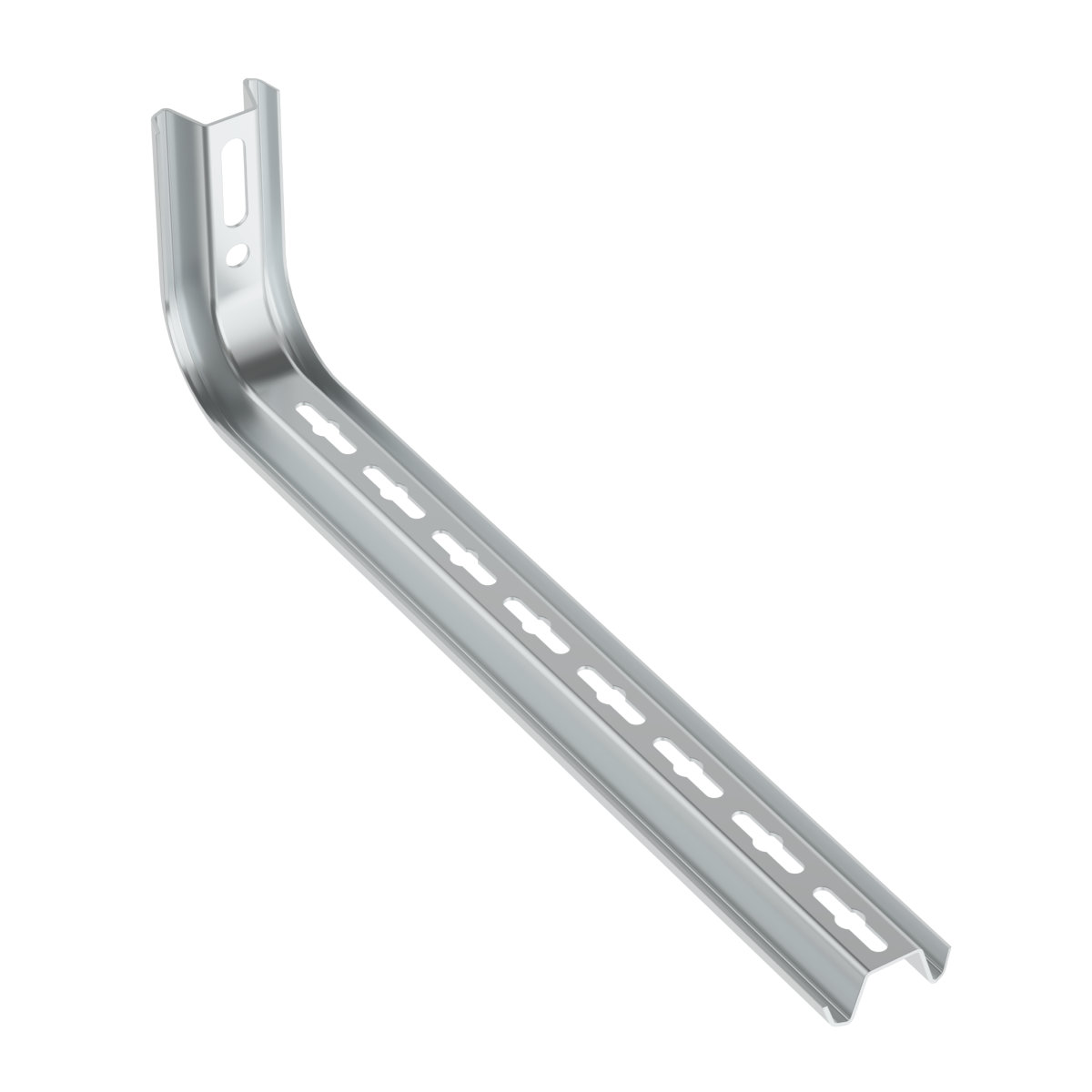

illustrative picture
To download 3D models, please login or create an account and request access.
| Código EAN | 8595057634091 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,7500 kg/unidad |
| Tratamiento superficial | Pre-Galvanized |
| Carga máxima | 50 kg |
| Dimensión A | 463 mm |
| Para la anchura de la bandeja | 400 mm |
Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
