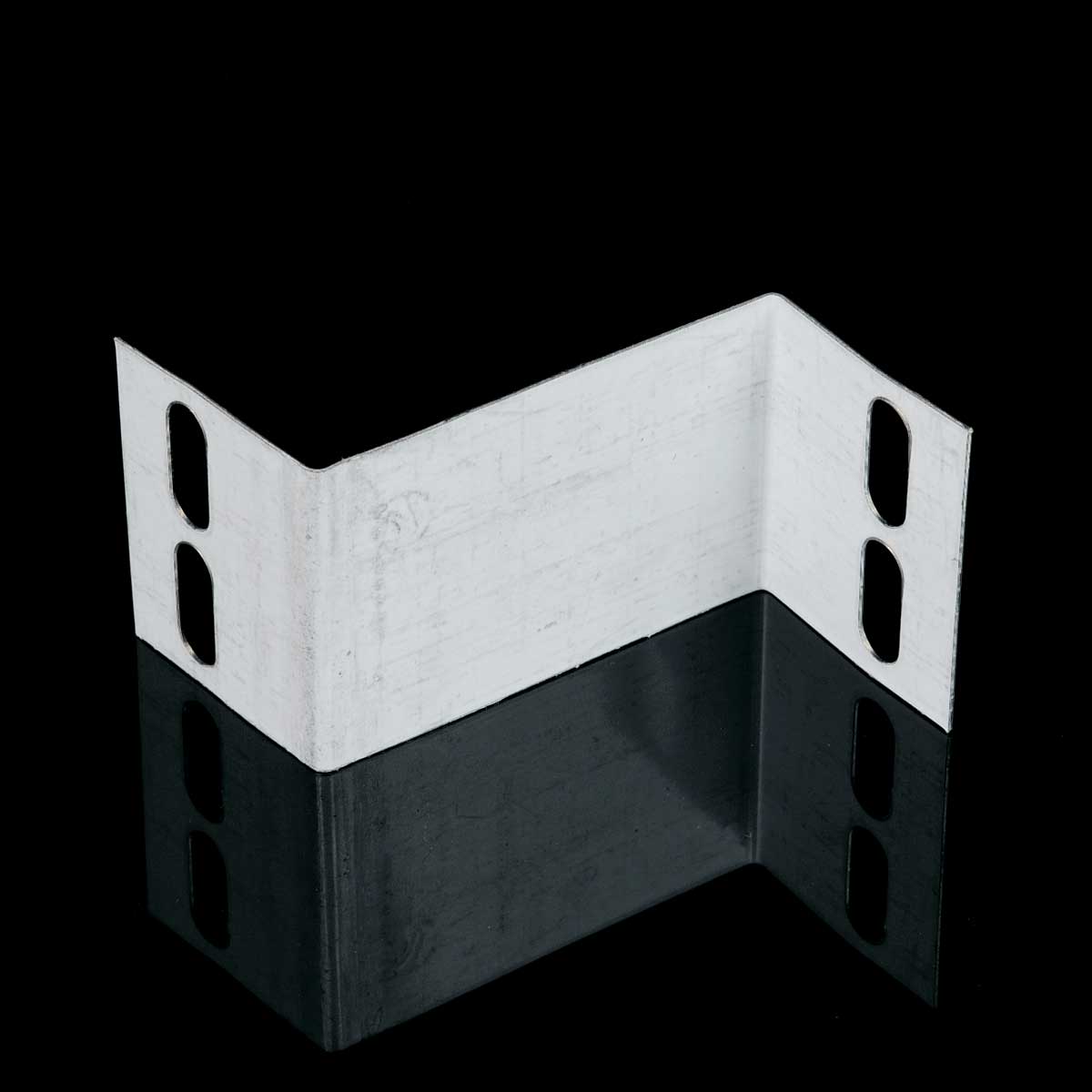

illustrative picture
To download 3D models, please login or create an account and request access.
NIXR_EN
| Código EAN | 8595057672000 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,1840 kg/unidad |
| Tratamiento superficial | Stainless steel AISI 304 |
| Resistencia térmica | -50 - +150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 0,6 mm |
| Cantidad de tornillos para la conexión | 4 |

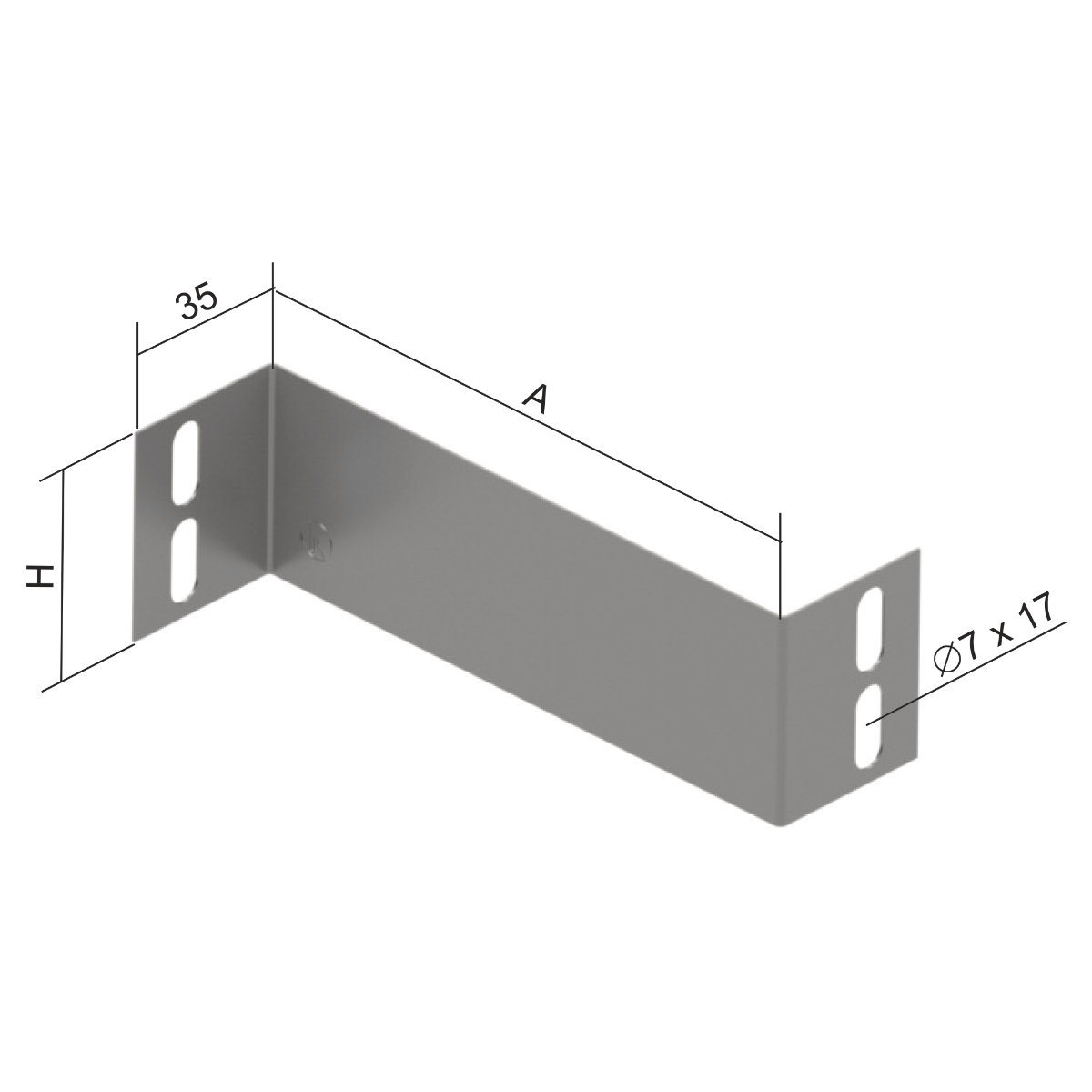

| Dimensión A | 252 mm |
| Dimensión H | 93 mm |
| Para la anchura de la bandeja | 500 mm |
| Para la altura de la bandeja | 100 mm |

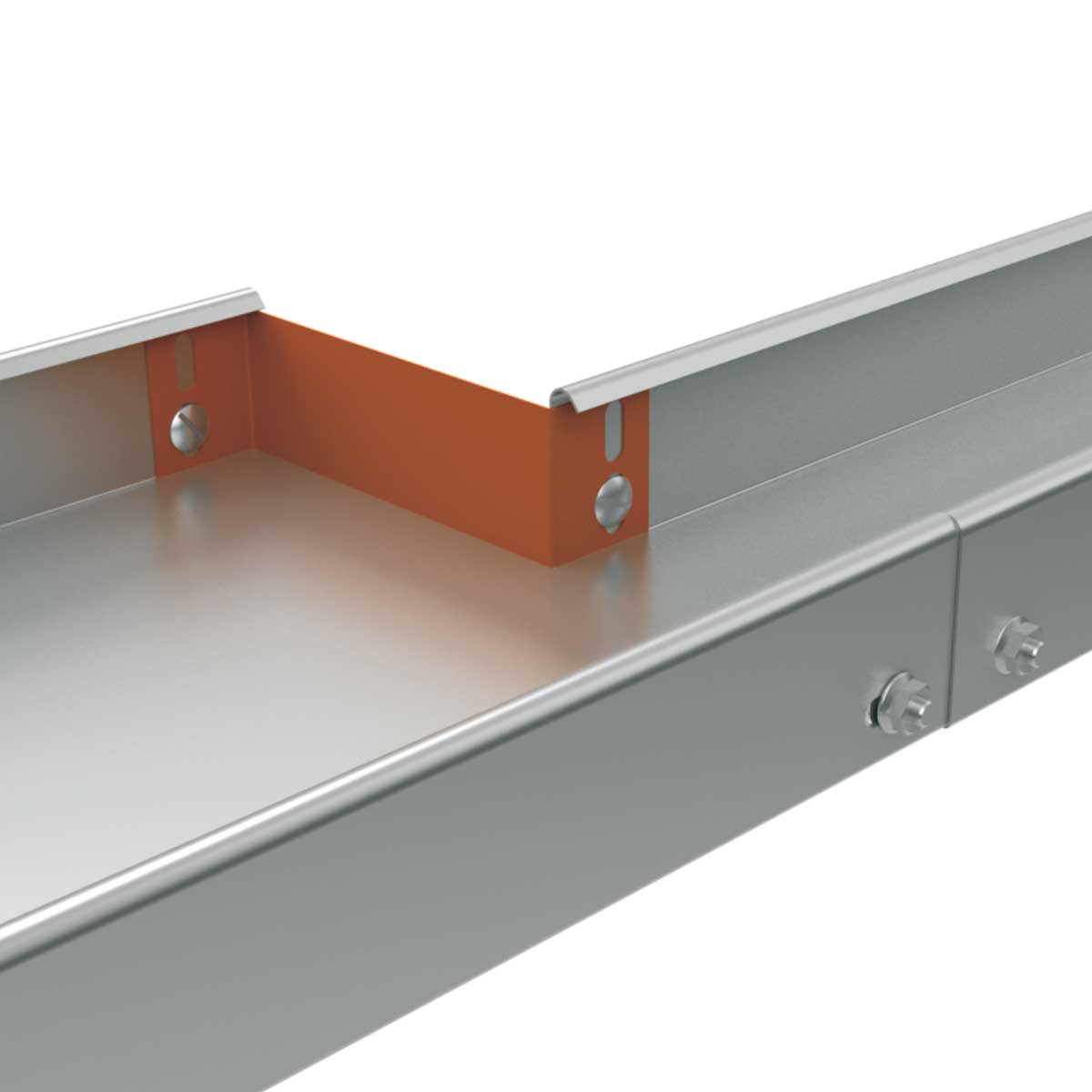

The joining is performed by using the bolts NIXSM 6X10. The reduction is used for the transition between various tray widths with identical height of side walls.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
