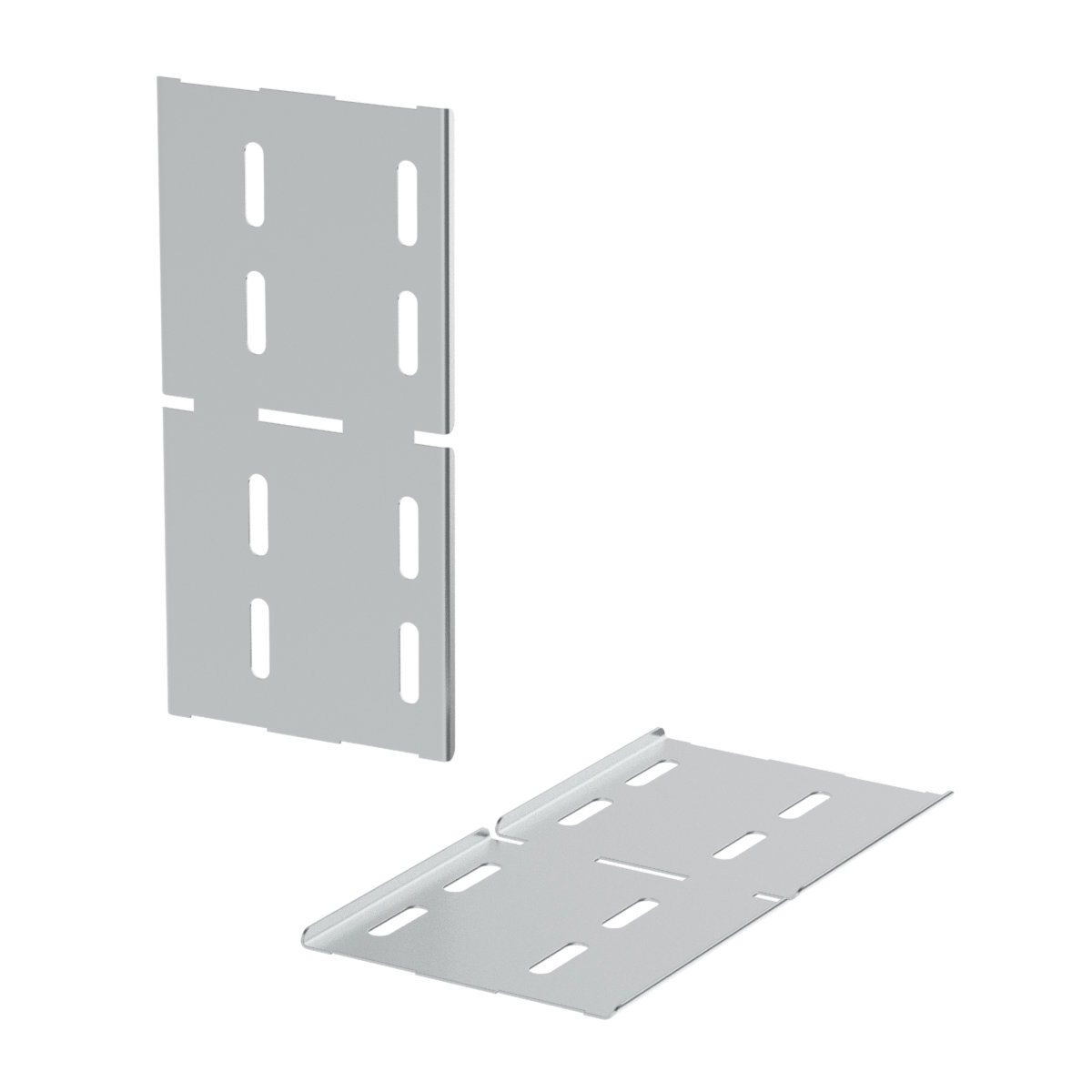

illustrative picture
To download 3D models, please login or create an account and request access.
NIXSUK_EN
| Código EAN | 8595057672642 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,1420 kg/unidad |
| Tratamiento superficial | Stainless steel AISI 304 |
| Resistencia térmica | -50 - +150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 0,8 mm |
| Dimensión H | 96 mm |
| Para la anchura de la bandeja | 125 - 500 mm |
| Para la altura de la bandeja | 100 mm |
The joining is performed by using the bolts NIXSM 6X10. Angle couplings are mostly used at places where the route is slightly bended, for large bending radiuses or for the circumvention of columns and pillars. The advantage of the angle connector is that it enables angled routes to be easily created at virtually any angle.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
