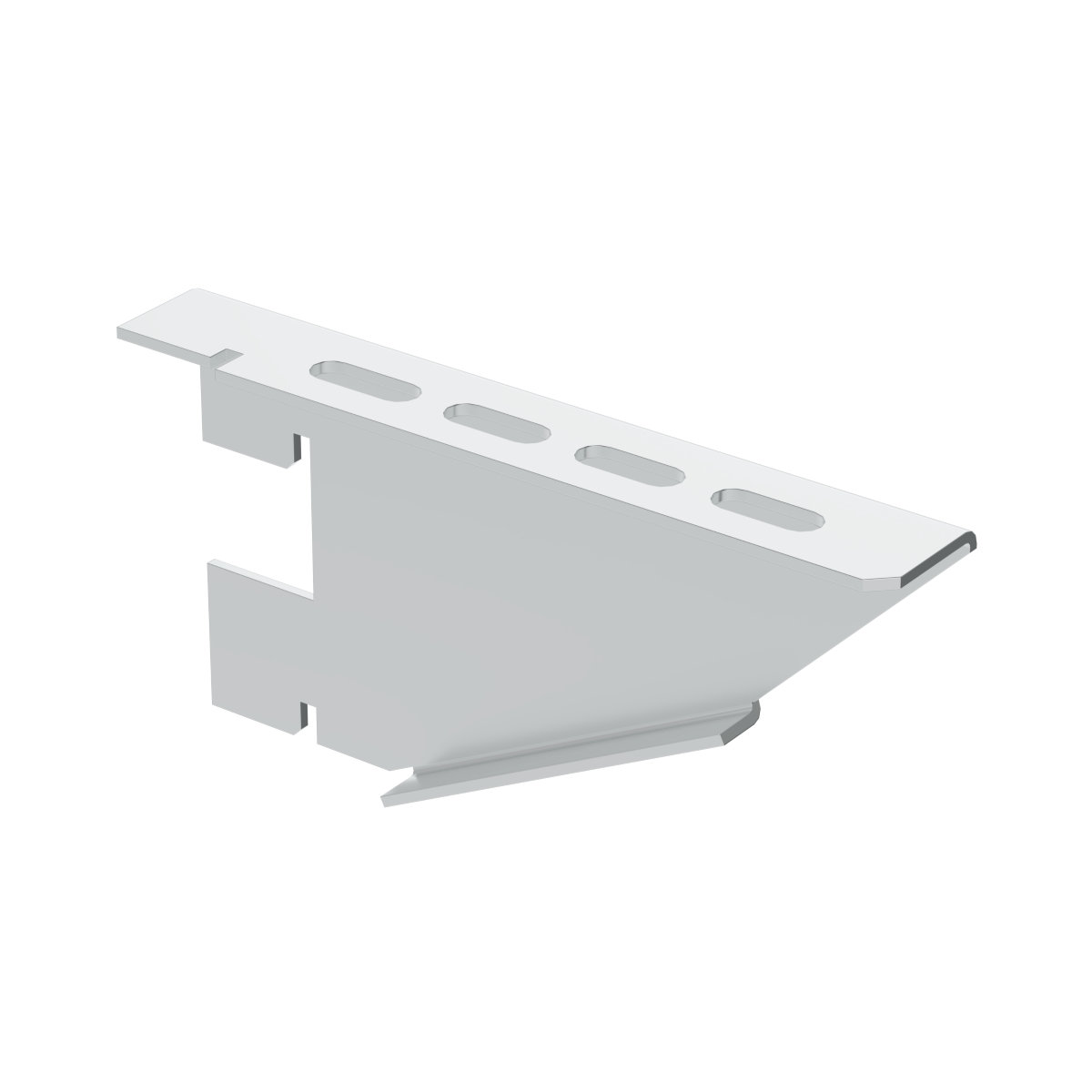

illustrative picture
To download 3D models, please login or create an account and request access.
NPR_EN
| Código EAN | 8595057654471 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,18 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Espesor de la chapa metálica | 2 mm |

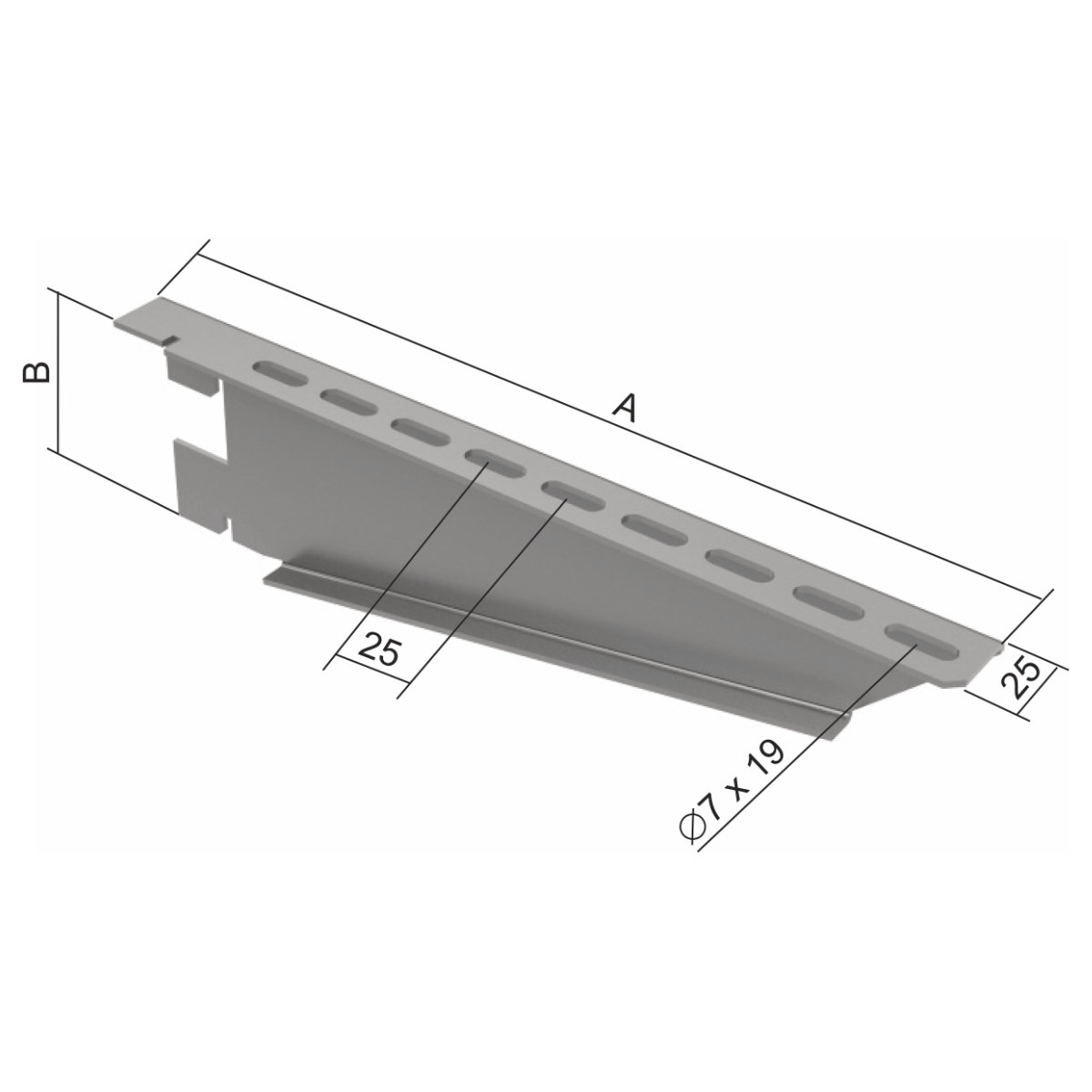

| Dimensión A | 148 mm |
| Dimensión B | 78 mm |
| Para la anchura de la bandeja | 125 mm |
| Para la altura de la bandeja | 50 - 100 mm |
The tray is fixed to the support using 2 NSM 6X10 screws. When installed in an assembly profile, the support has to be secured by a safety lock NPPVZ.
