| Código EAN | 8595057663411 |
| Elcodigo aduanero | 72169180 |
| Peso | 1,18 kg/m |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Longitud | 2000 mm |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1 mm |
| Dimensión H | 104 mm |
| Para la altura de la bandeja | 110 mm |

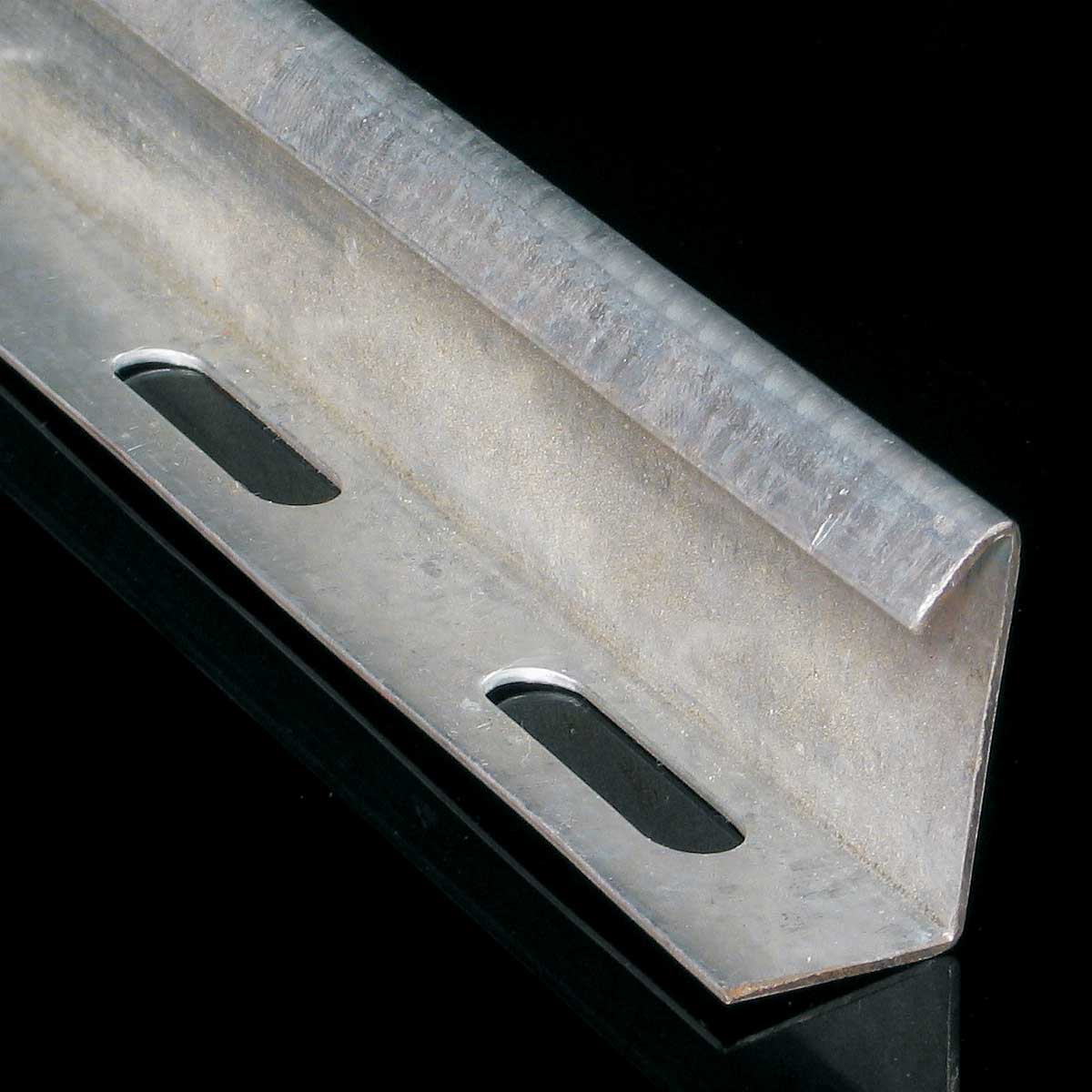

The connection is performed using the bolts NSM 6X10, 2 pcs per 1 meter. The partition is used to separate cables in cable trays. In term of electrical compatibility, it is also used for dividing several types of lines. It is recommended to use covers for this type of installation and make the covered and shielded room.
