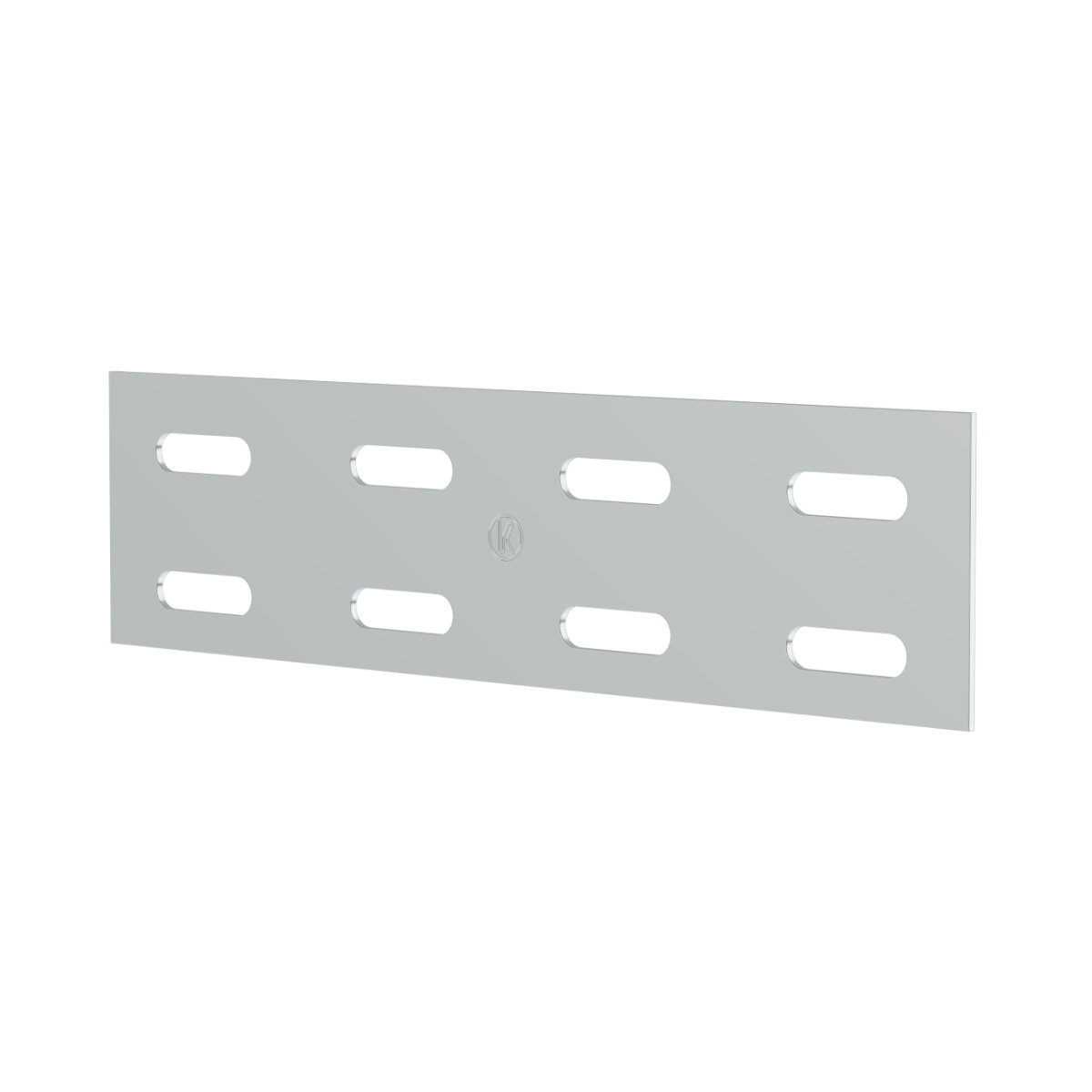

illustrative picture
To download 3D models, please login or create an account and request access.
S_EN
| Código EAN | 8595057627796 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,09 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1,2 mm |
| Cantidad de tornillos para la conexión | 4 |

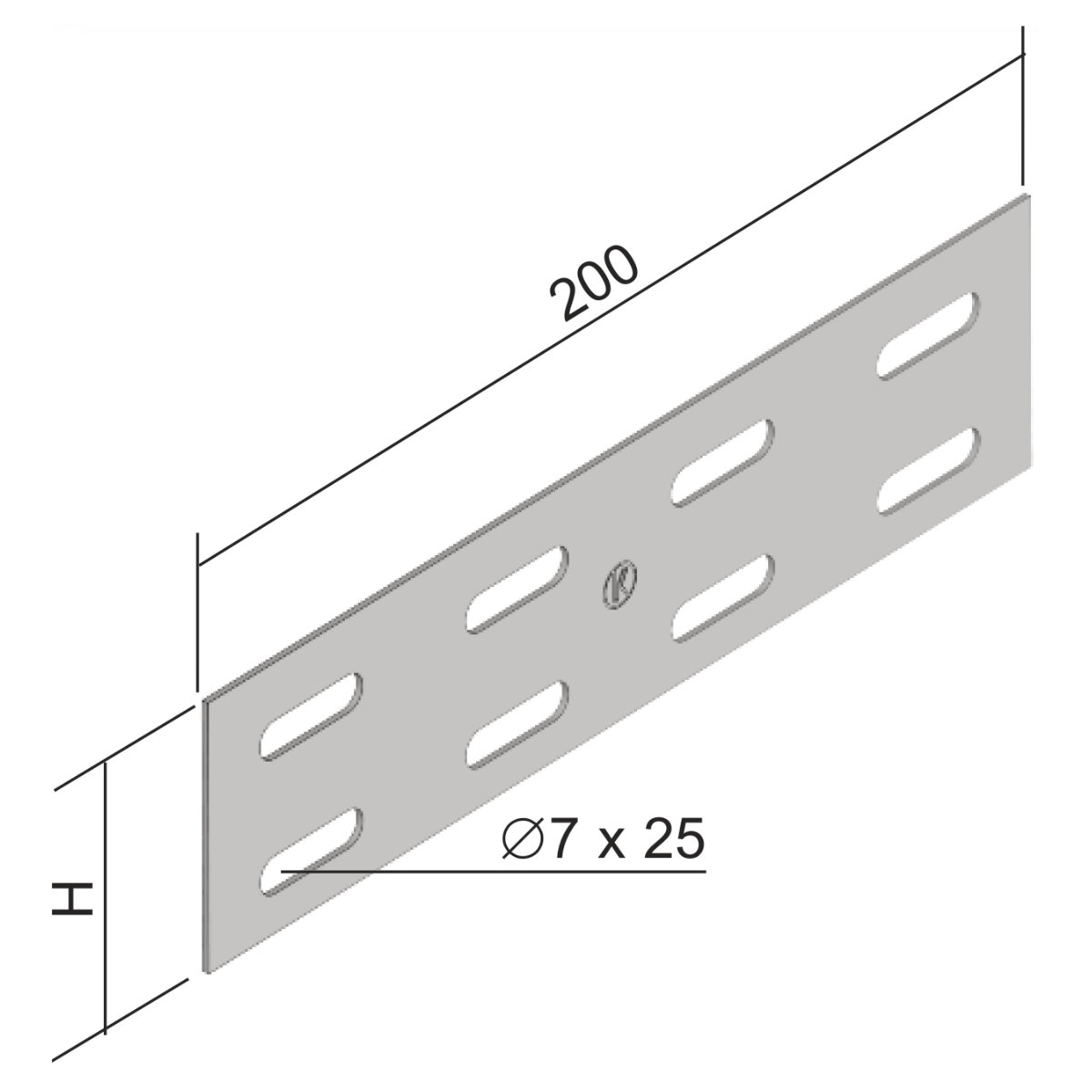

| Dimensión H | 50 mm |
| Para la altura de la bandeja | 60 mm |

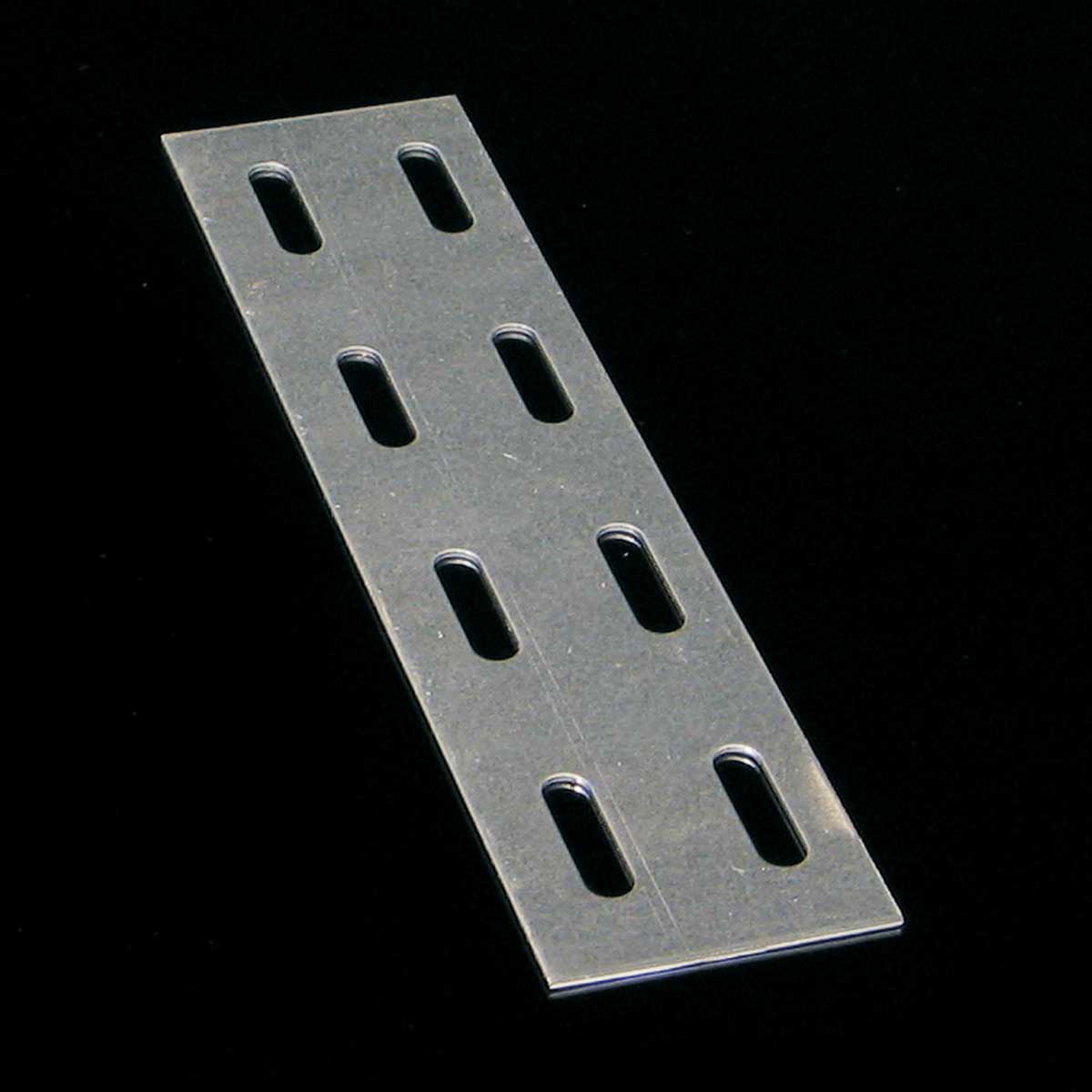

Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.
Note for system with maintained functionality in fire:
It serves for connecting trays. Fixing is carried out by screws NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
