illustrative picture
To download 3D models, please login or create an account and request access.
VMB_EN
| Código EAN | 8595057664807 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,37 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 2 mm |
| Dimensión A | 300 mm |
| Para la anchura de la bandeja | 300 mm |

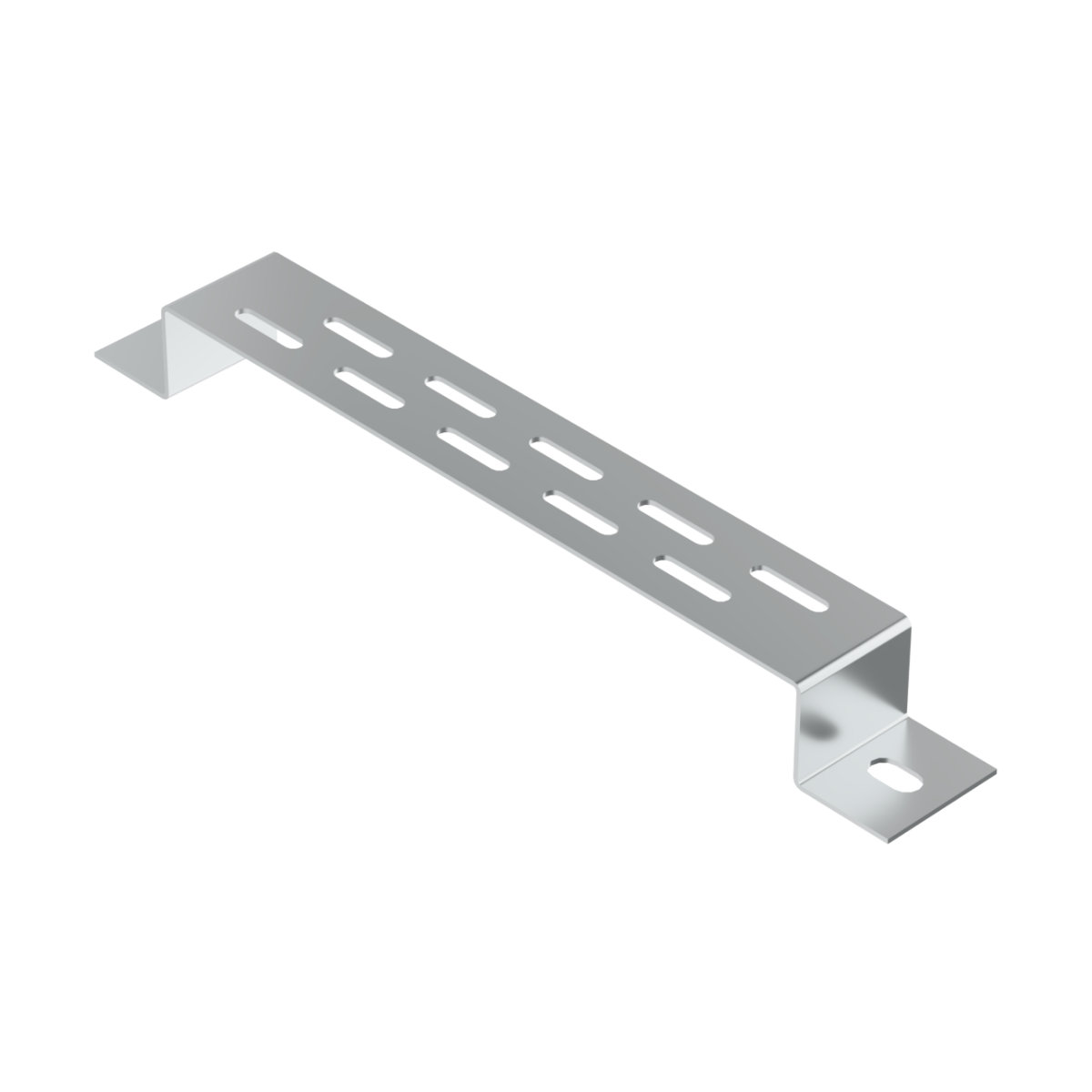

It is used to attach a cable tray to the floor or wall. Attachment to the wall is carried using the Ø 10 mm wall clamps. Cable tray is installed to VMB using the bolts NSM 6X10.
