ZVB_EN
| Código EAN | 8595568915085 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0220 kg/unidad |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - +150 °C |
| Altura | 30 mm |
| Longitud | 80 mm |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1 mm |
| Carga máxima | 60 kg |

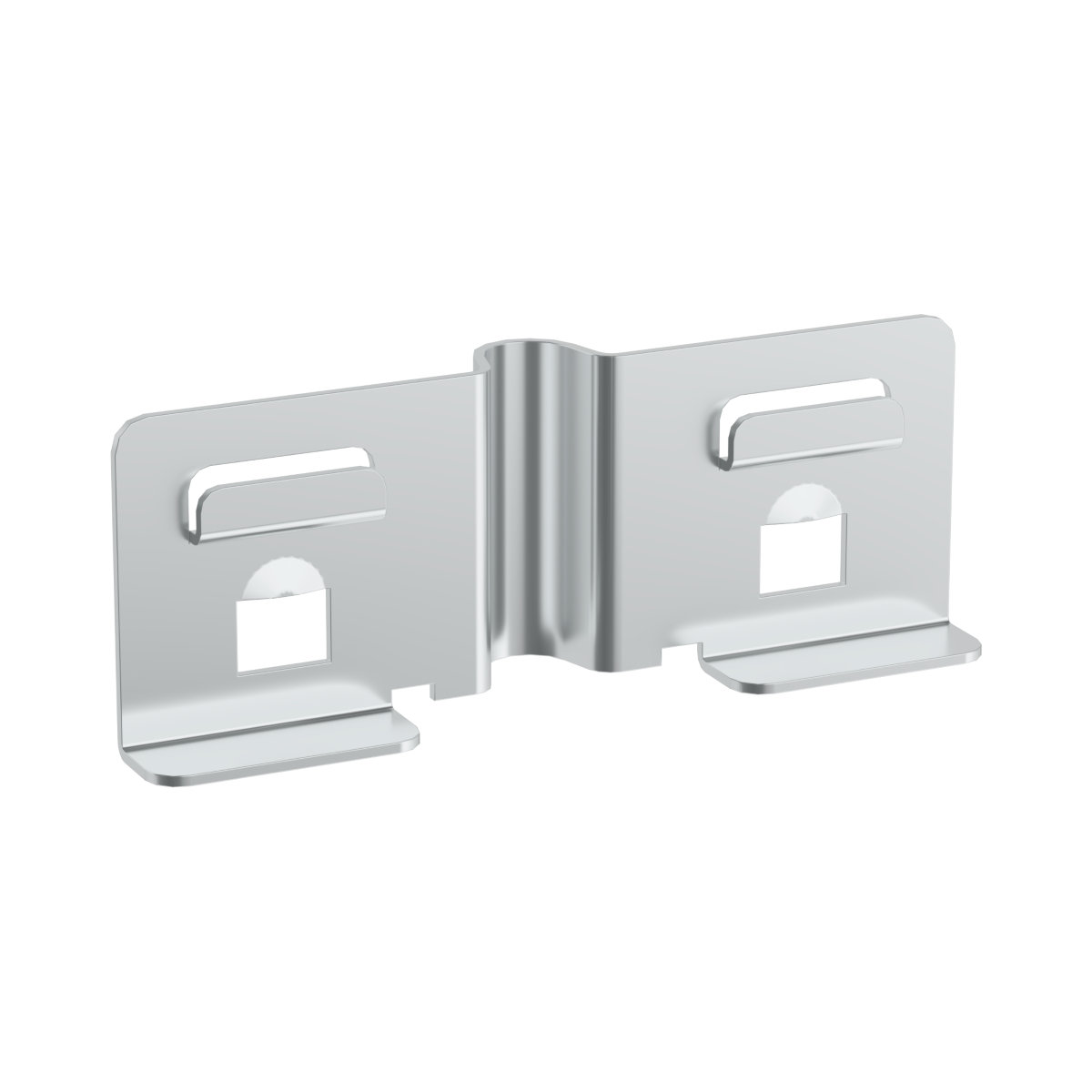

The outer side hinge is designed for hanging a cable route running through cable ladders on a ZT 8 threaded rod. the hinge is fixed to the route by snapping the studs on the hinge into the ladder sidewall. The threaded rod is fixed using a PD 8 washer and an M 8 nut. The hinge is designed for cable ladders or for cable trays made from 1.5 mm sheet metal. Hinges are supplied individually. 2 hinges are needed to create one suspension point. The product is protected by the utility model.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
