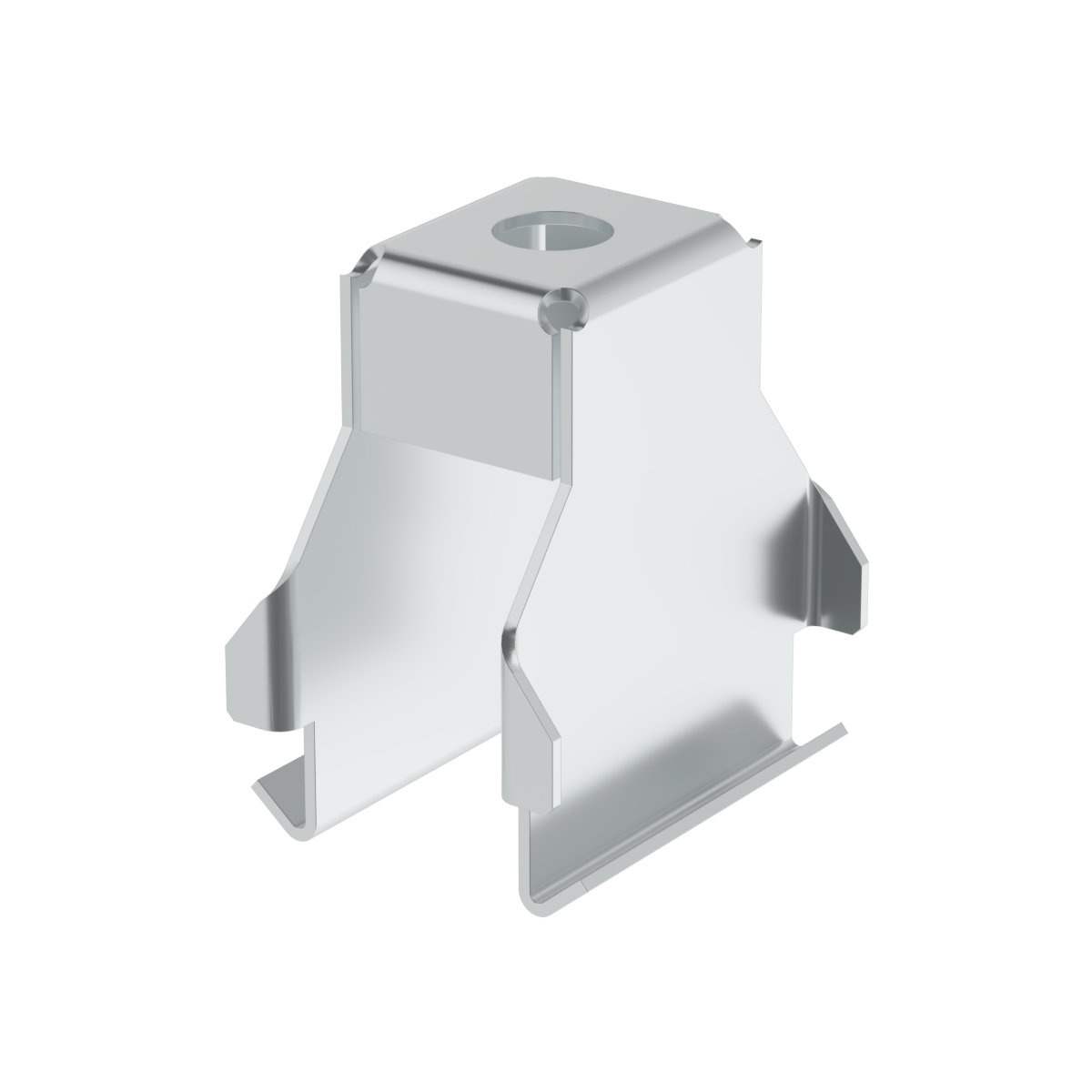

illustrative picture
To download 3D models, please login or create an account and request access.
ZVNE_EN
| Código EAN | 8595057662421 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,16 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 2 mm |
| Carga máxima | 90 kg |
| Dimensión A | 30 mm |
| Para la anchura de la bandeja | 50 mm |
| Para la altura de la bandeja | 35 - 110 mm |

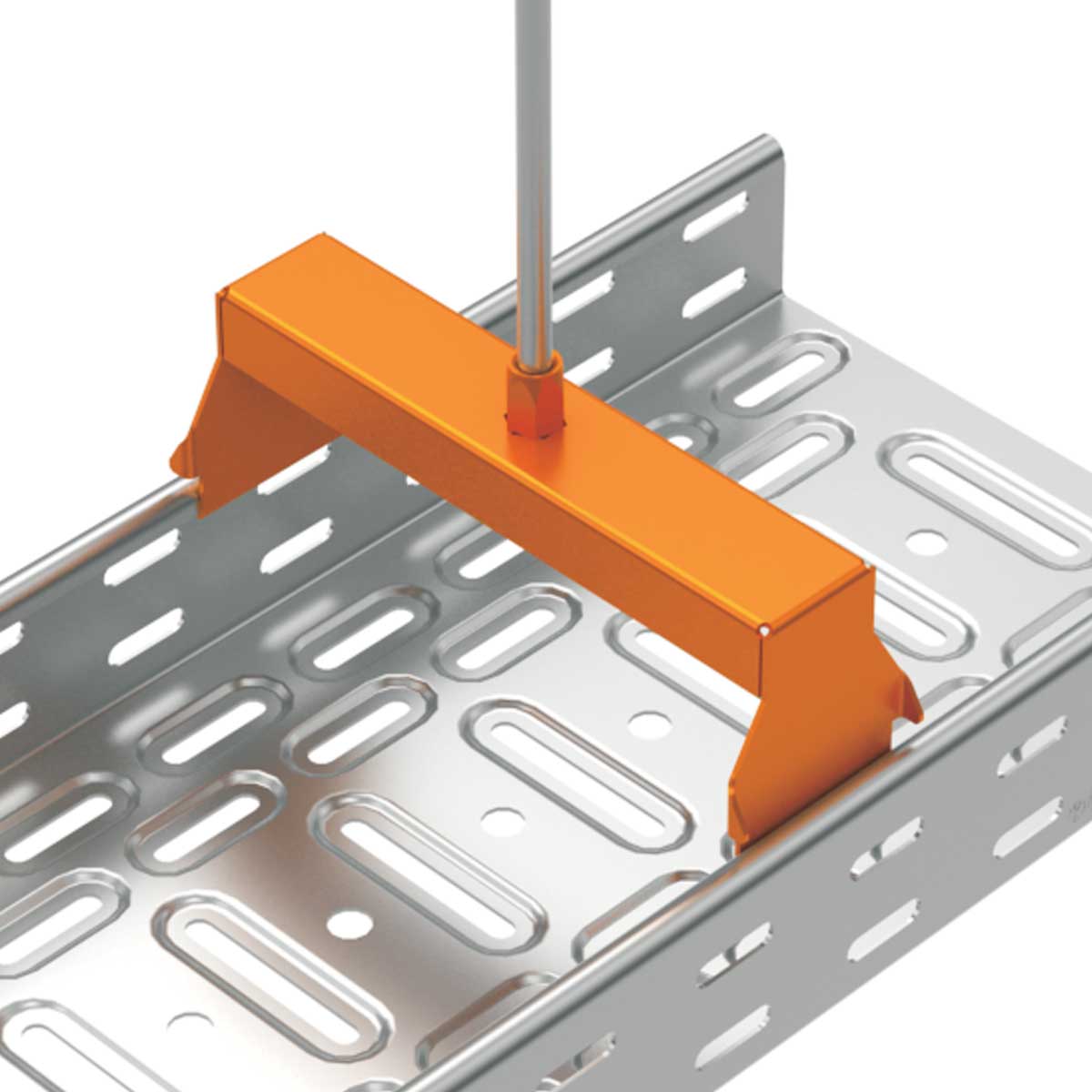

It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The hanger is suitable for hanging cables with cross piece.
