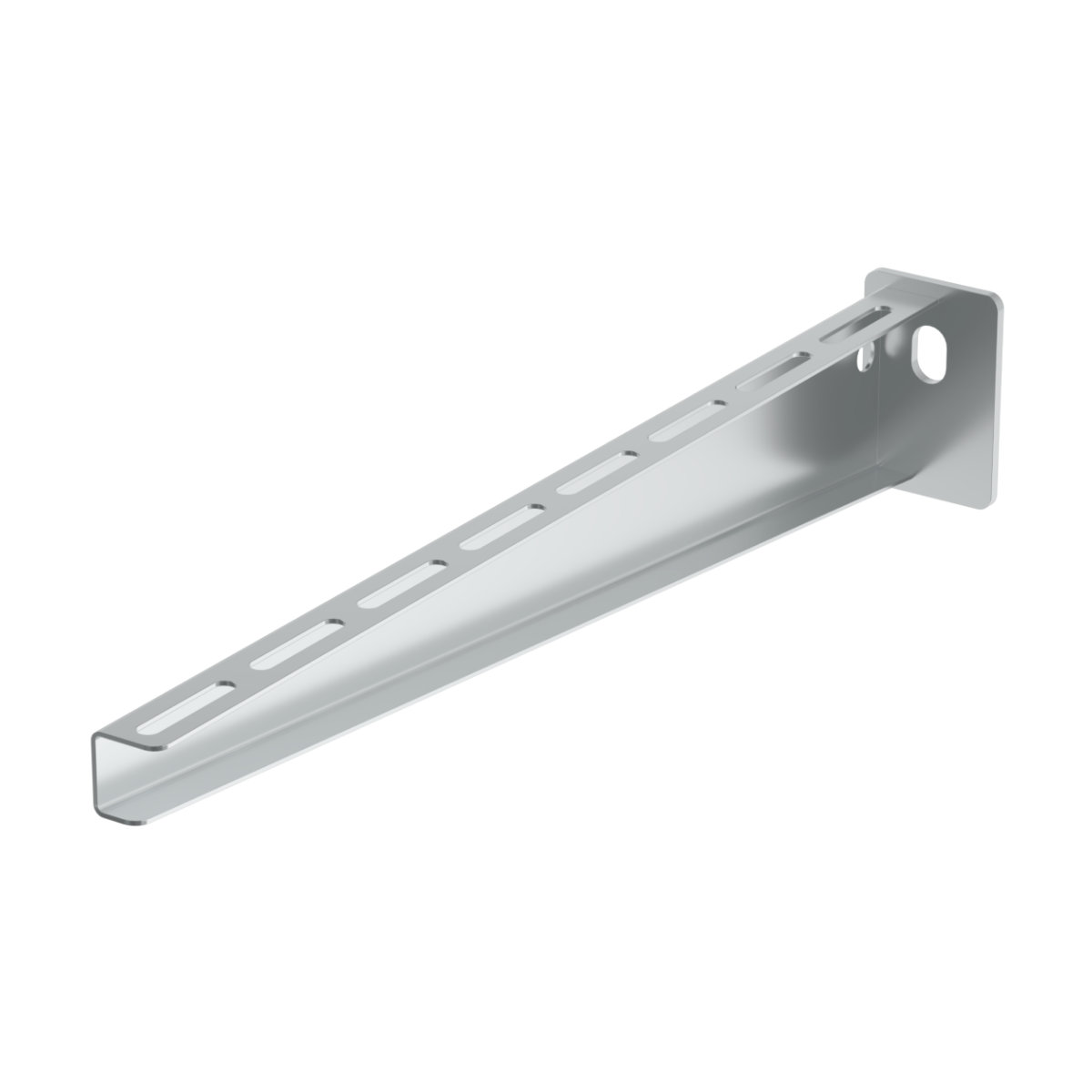

illustrative picture
DTN_EN
| Código EAN | 8595568916853 |
| Elcodigo aduanero | 83024190 |
| Peso | 0,80 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Carga máxima | 250 kg |
| Dimensión A | 410 mm |
| Dimensión B | 75 mm |
| Dimensión C | 50 mm |
| Para la anchura de la bandeja | 400 mm |
| Para la altura de la bandeja | 35 - 110 mm |
The holder is designated to be mounted on wall or celling profile.
Fix to the celling profile SPLN, SPSN or SPU using bolt S 10X20, nuts M 10 and washer PD 10.
Fix to the celling profile SPL or SPS using sliding nut PM 41 M 10 together with the bolt S 10X20.
Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
