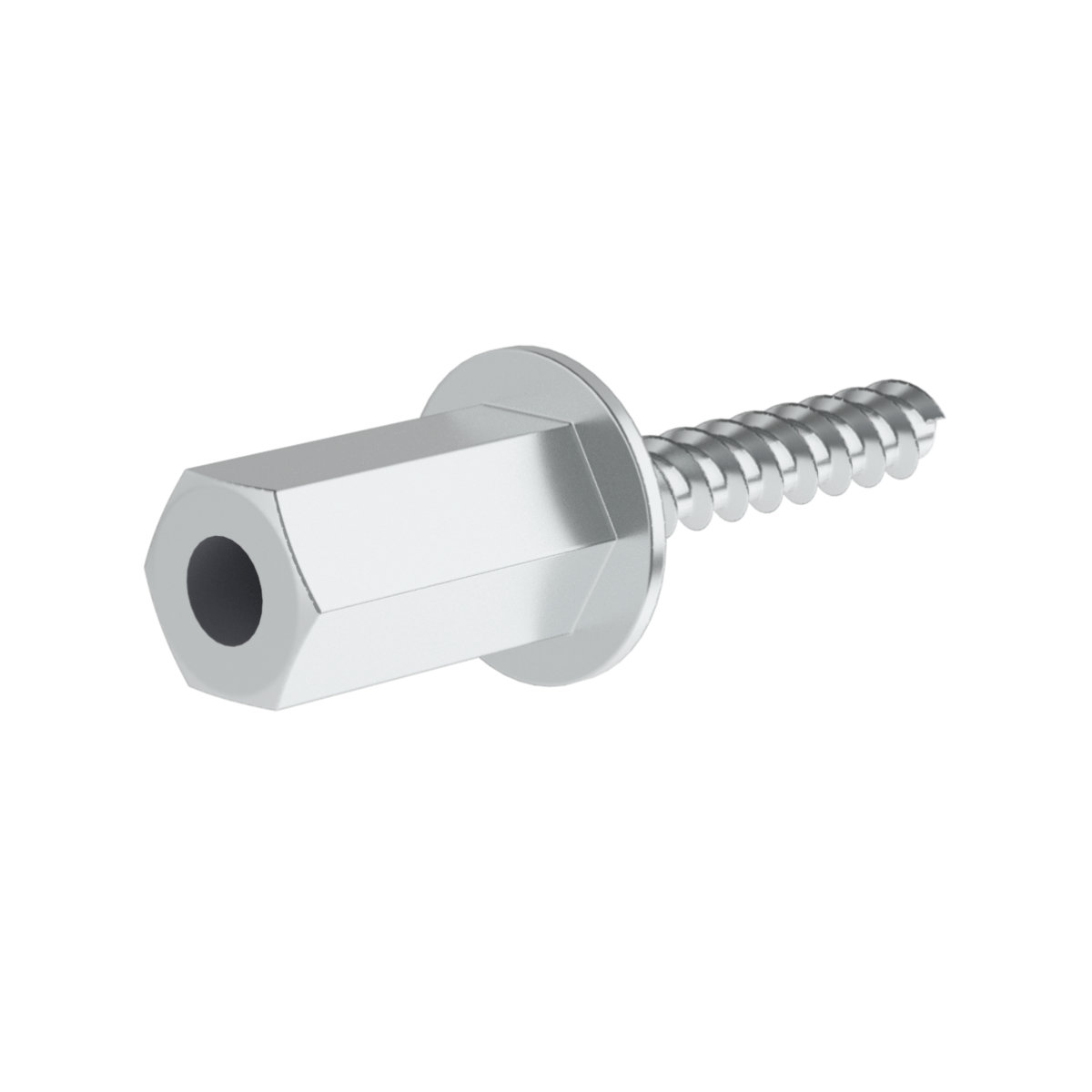

illustrative picture
KBS_EN
| Código EAN | 8595568931122 |
| Elcodigo aduanero | 73181499 |
| Peso | 0,0330 kg/unidad |
| Material | steel |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Profundidad mínima del agujero a perforar | 45 mm |
| Espesor mínimo de sustrato de anclaje | 80 mm |
| Diámetro del agujero | 6 mm |
| Tamaño de la llave | 13 |
| Momento de torsión | <= 10 Nm |
| Profundidad de atornillado | 35 mm |
| La altura de la tuerca de fijación | 26,5 mm |
M8 / M10 combined screw for quick and easy mounting of screws or threaded rods. Designed for installation in cracked concrete C20 / 25 to C50 / 60, prestressed cavity panels C30 / 37 to C50 / 60, into natural stone with a dense structure.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
