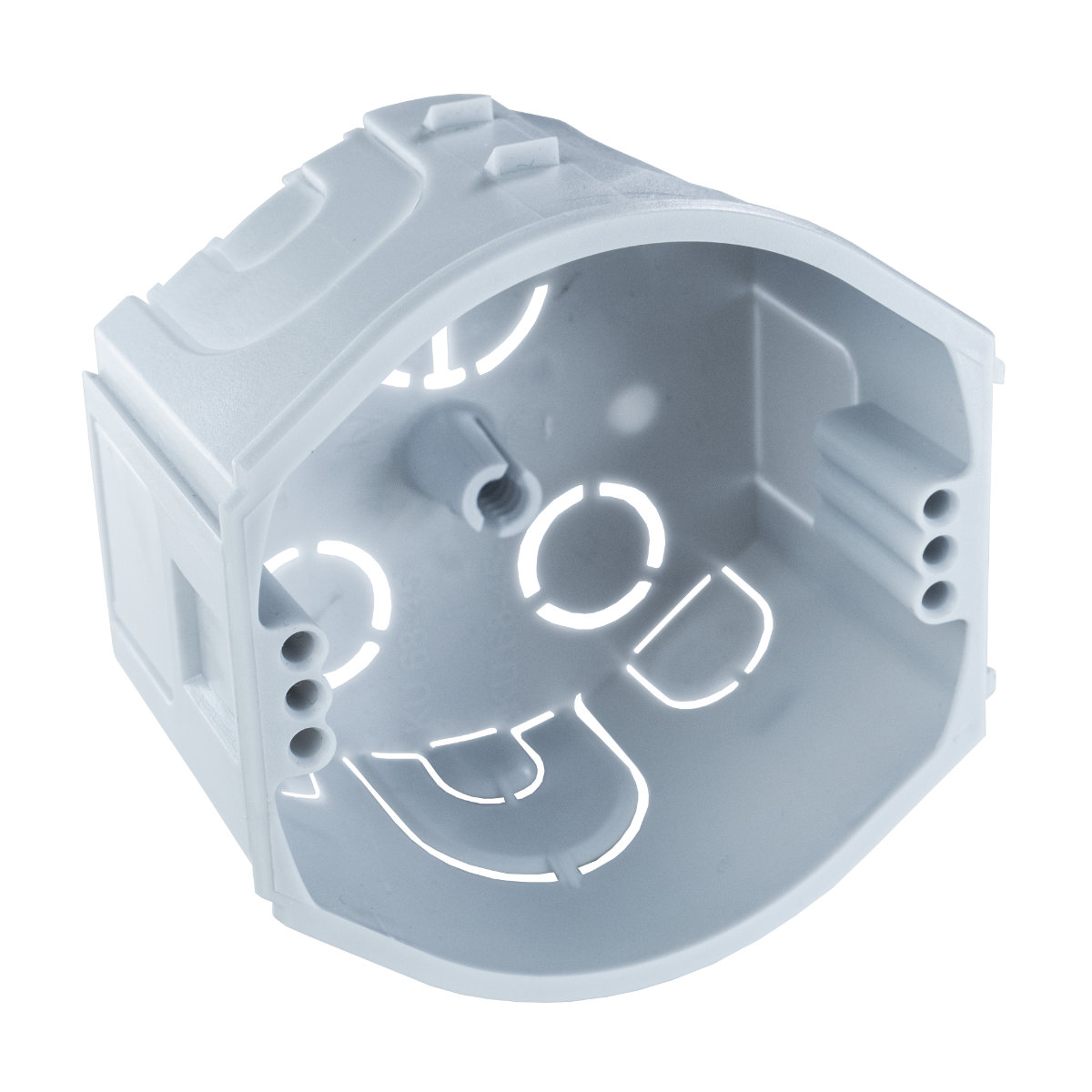

illustrative picture
To download 3D models, please login or create an account and request access.
KU68-45_EN
| Código EAN | 8595568936233 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0266 kg/unidad |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Medio | 71 mm |
| Profundidad | 45 mm |
| Diámetro de orificio fresado (perforado) | 80 mm |
| Clase de reacción al fuego | A1 - D |
| Distancia al unir dos cajas | 71 mm |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje boxes loosely inserted into the carton, device screws included | |
Connection in a continuous row with a spacing of 71 mm possible. The boxes can be connected to KPR 68-70, KP 68/D, KPR 68/D, KP 68-30 and KP 68-45. More space for the electroinstallation. Protected by a European industrial design and Utility model trademark. Direct replacement for the box KU 68-1901.
