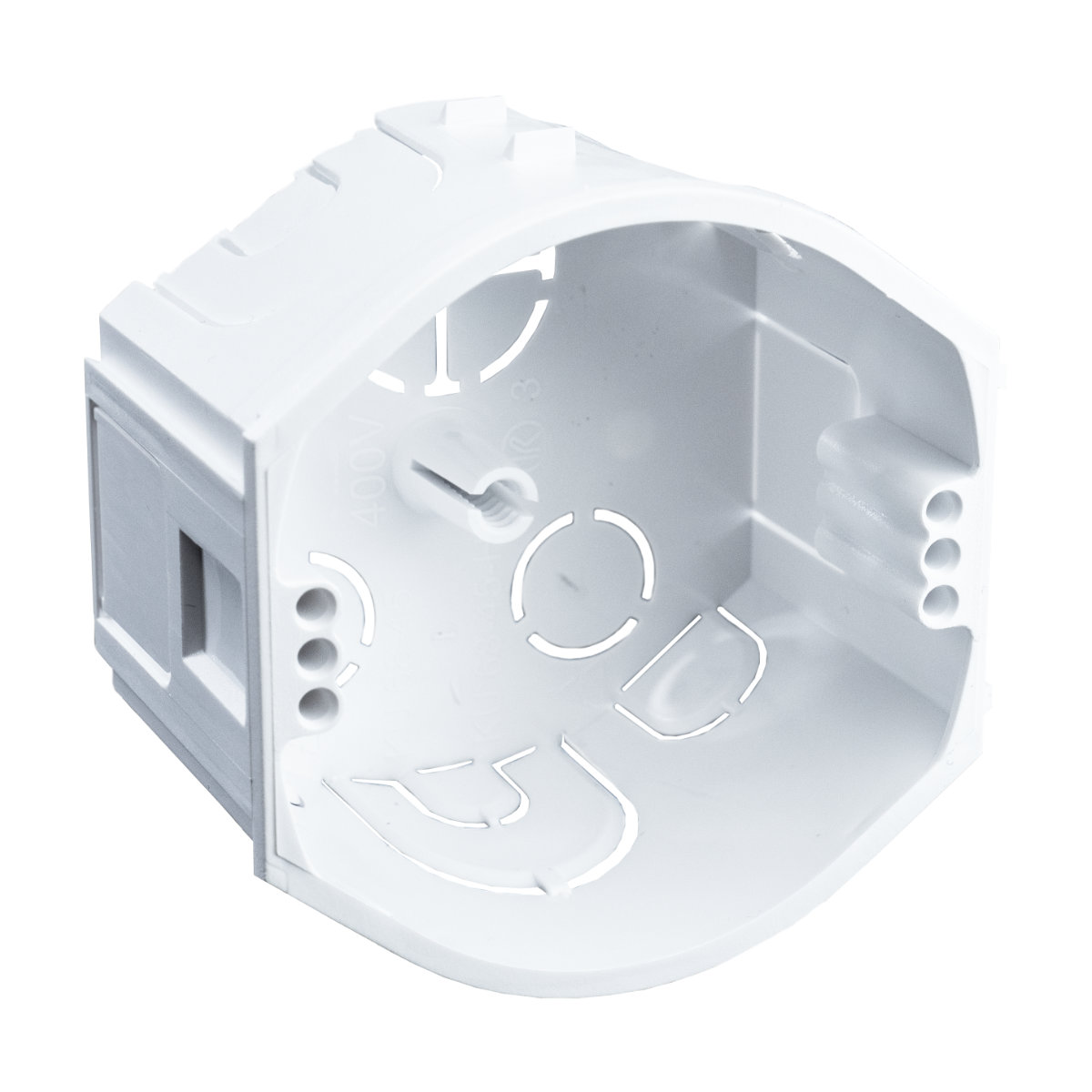

illustrative picture
To download 3D models, please login or create an account and request access.
| Código EAN | 8595568936417 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,0252 kg/unidad |
| Material | PC-ABS |
| Material libre de halógenos | yes |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Voltaje nominal | <= 400 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -5 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |

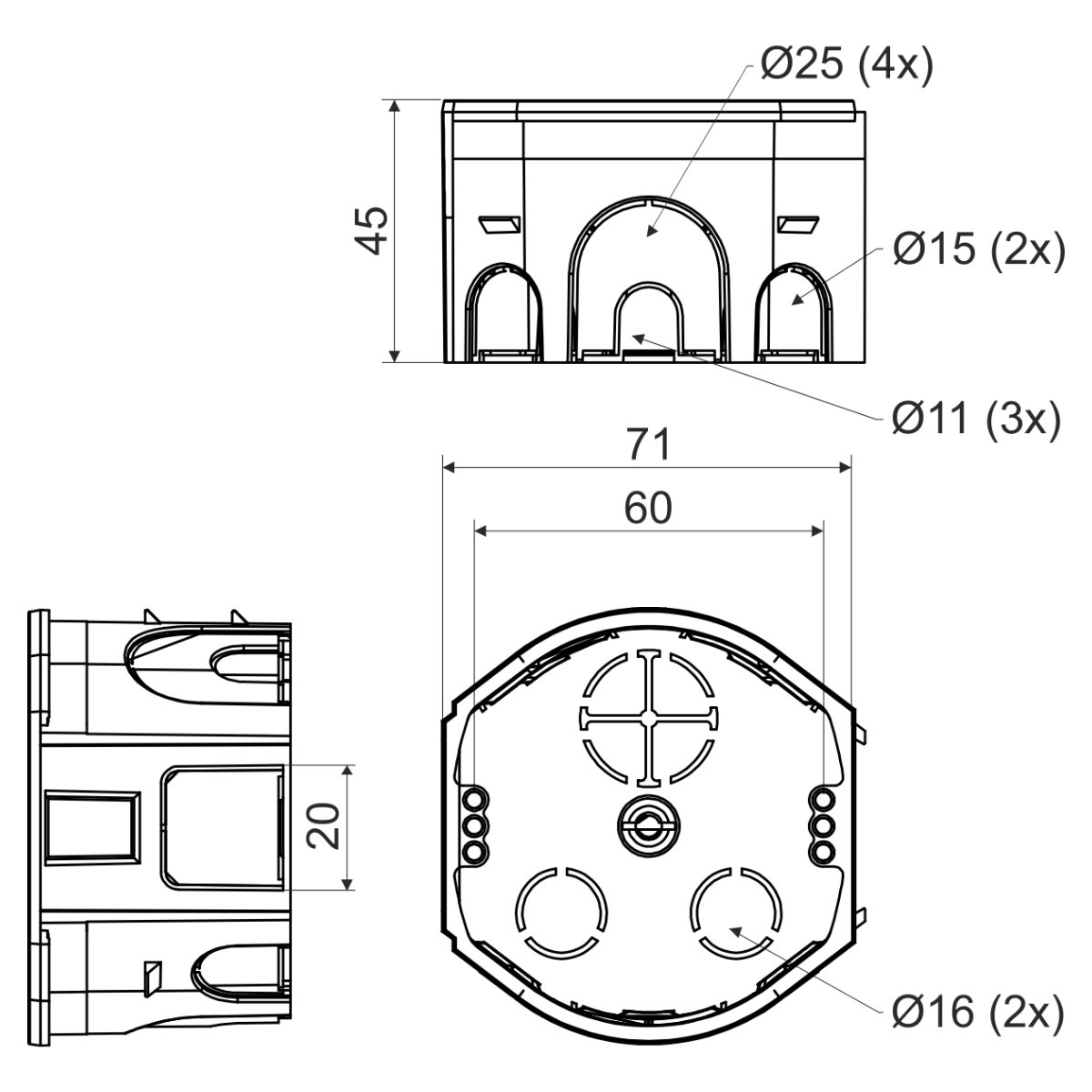

| Medio | 71 mm |
| Profundidad | 45 mm |
| Diámetro de orificio fresado (perforado) | 80 mm |
| Clase de reacción al fuego | A1 - D |
| Distancia al unir dos cajas | 71 mm |
| Permite el montaje de base de enchufe de dos elementos | yes |
| Corresponde a las normas | ČSN EN 60 670-1 |
| La descripción del embalaje packed in shrink foil, label marked, screws including | |
Connection in a continuous row with a spacing of 71 mm possible. Boxes can be joined with boxes KPR 68-70/HF. More space for the electroinstallation. For premises with increased need for protection of persons and property. Protected by a European industrial design and Utility model trademark.
KU68-45HF_EN
