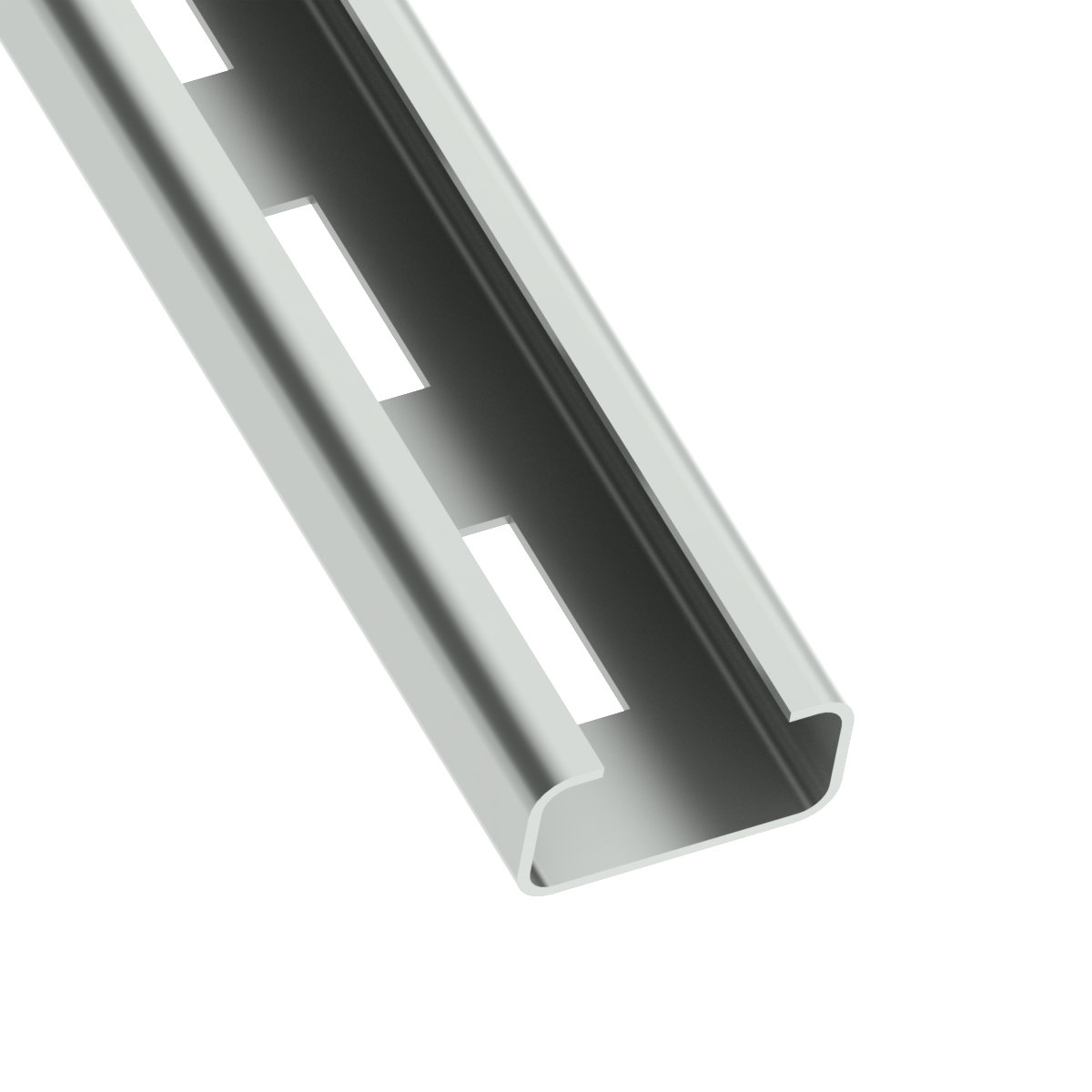

illustrative picture
5820_PO_EN
| Código EAN | 8595057605664 |
| Elcodigo aduanero | 72169180 |
| Peso | 0,22 kg/m |
| Material | steel |
| Tratamiento superficial | Sendzimir |
| Ancho | 20 mm |
| Altura | 10 mm |
| Longitud | 3 m |
| Nota | perforated (15 x 4,3 mm, distance 25 mm) |
| Espesor de la chapa metálica | 0,7 mm |
Designed for mounting standard clips when mounting cables next to each other in a row. In the central axis of the trunking, holes of 4.3 x 15 mm are cut to fasten the surface material. Can be used to fasten PVC clamps of steel rigid EN pipes.
