Código EAN8595057626188
Elcodigo aduanero73063041
Peso1,74 kg/m
Materialsteel
Tratamiento superficial
ZNM: Sendzimir Galvanized, zinc layer 15 - 27 micron, replaces primer, medium corrosion resistance - group - 2
Resistencia térmica-60 - 250 °C
Resistencia mecánica1250 N/5cm
Protección mecánicaIK10
Longitud3 m
Diámetro exterior47 mm
Diámetro interior (min.)44 mm
Funcionalidad en fuegoP90-R, E90, PS90
Tipo de manguitoP36
Código de clasificación44561
Corresponde a las normasČSN EN 61386-1 ed.2
Estándares de resistencia al fuegoČSN 73 0895, DIN 4102-12, STN 92 0205
Carga máxima para resistencia al fuego10 kg

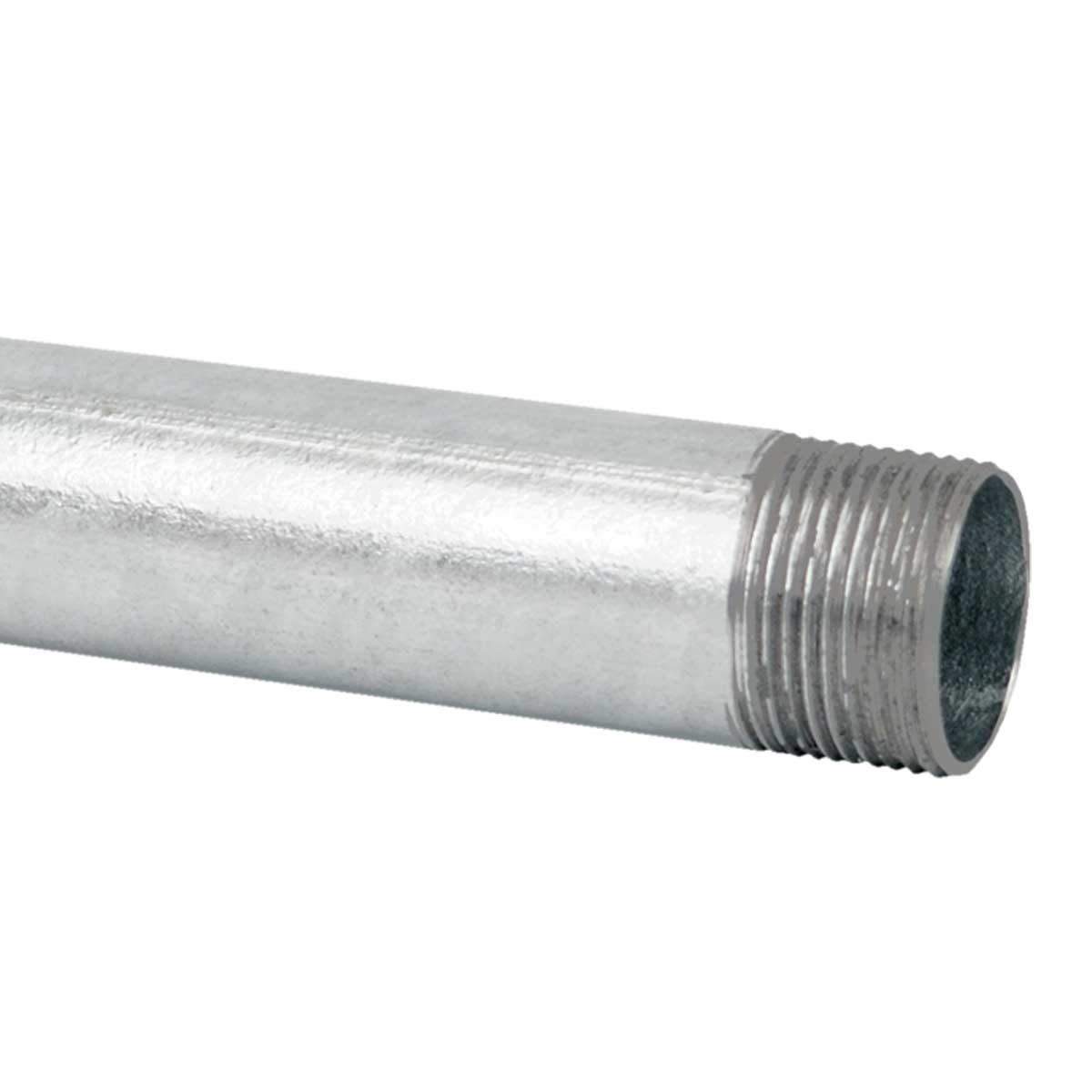

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.

Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
