| Código EAN | 8595568945013 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,2001 kg/unidad |
| Color | light grey RAL 7035 |
| Material | PP, TPE |
| Material libre de halógenos | yes |
| Voltaje nominal | <= 1000 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -25 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Protección mecánica | IK07 |
| Ancho | 135 mm |
| Altura | 135 mm |
| Profundidad | 79 mm |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP66 |
| La descripción del embalaje sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

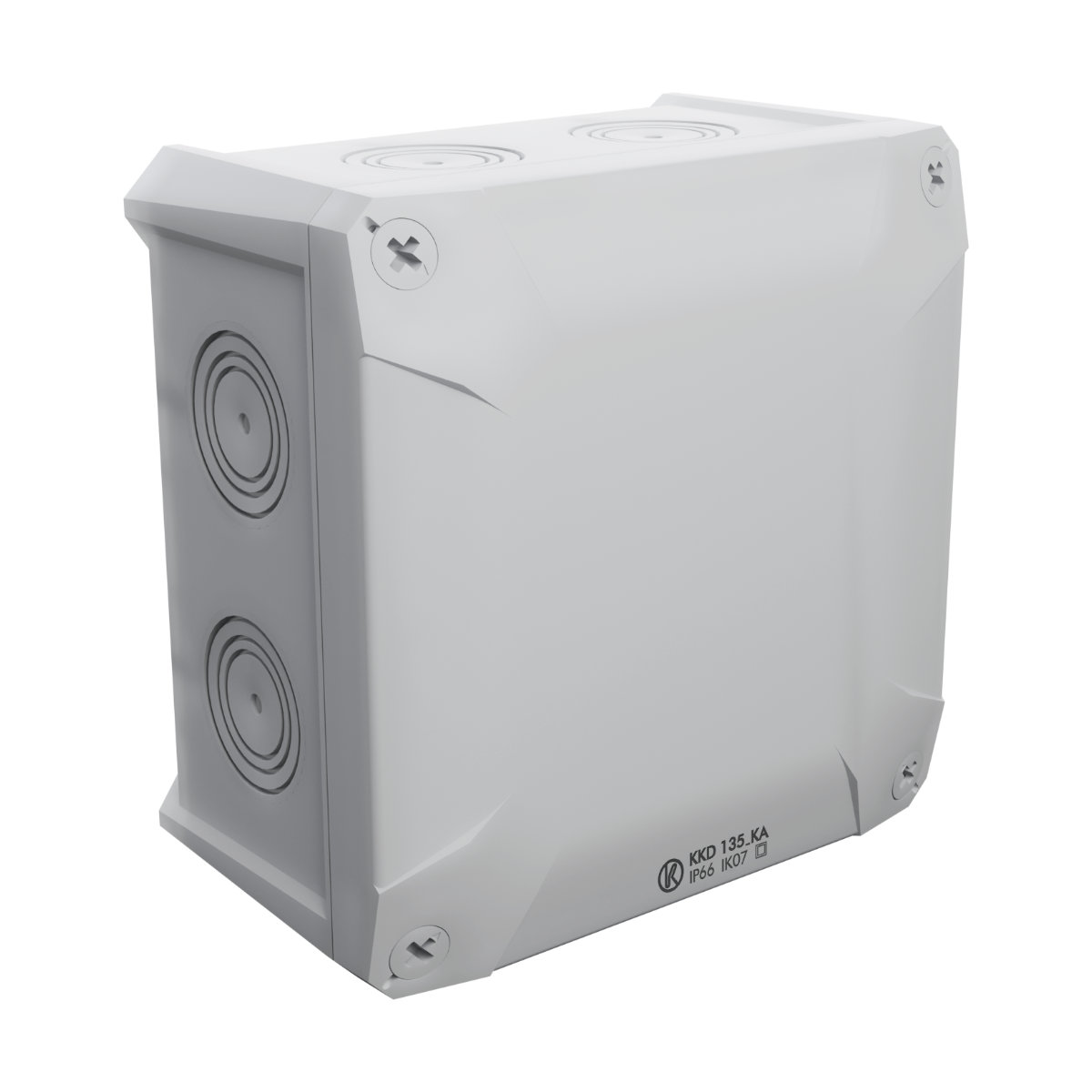

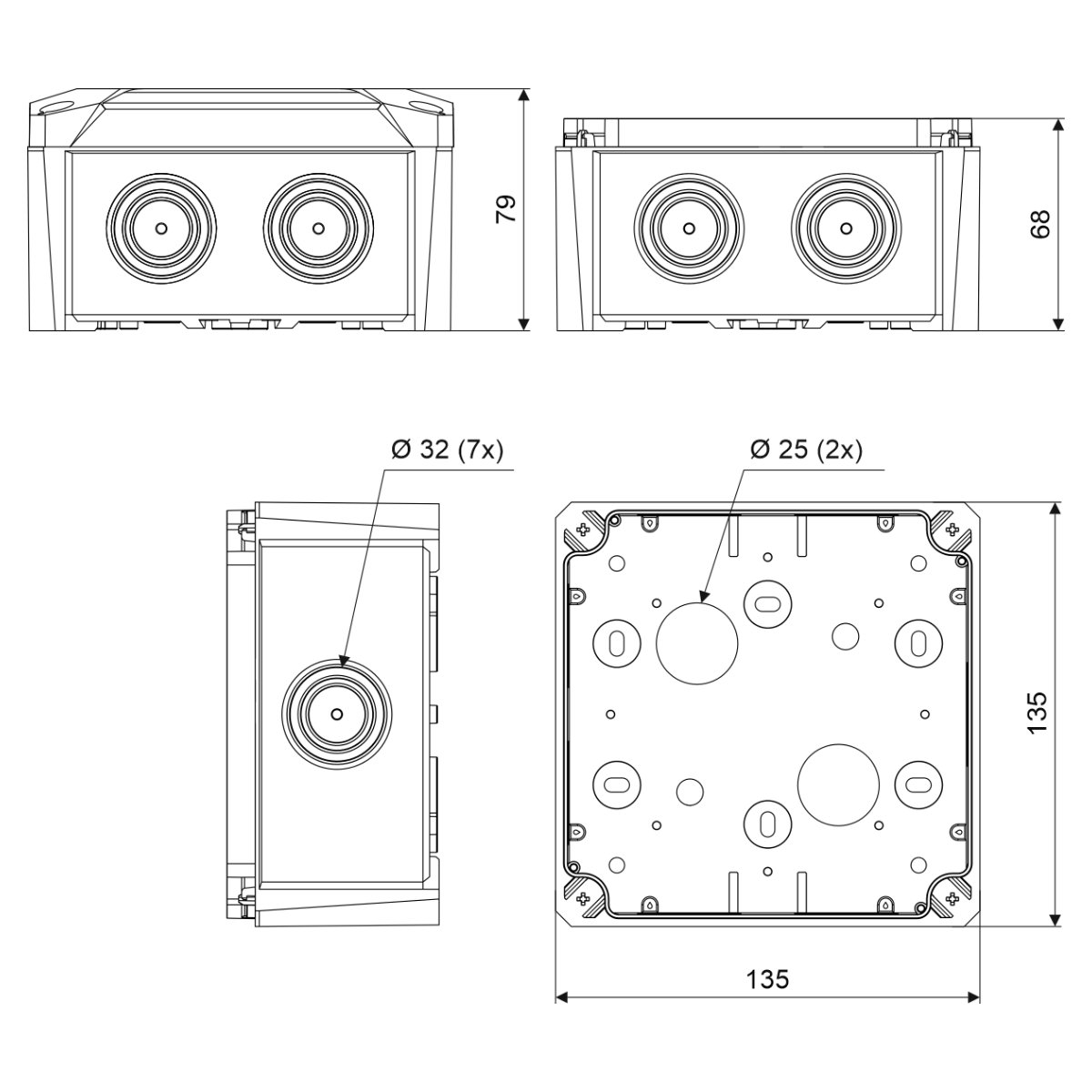

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Iintegrated seal in the openings for mounting to the base material. Perfect sealing of cables and pipes. 7x passage in the wall max. Ø32 mm, 2x passage in the bottom max. Ø25 mm. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
KKD135_EN
