| Código EAN | 8595568945037 |
| Elcodigo aduanero | 39259080 |
| Peso | 0,5264 kg/unidad |
| Color | light grey RAL 7035 |
| Material | PP, TPE |
| Material libre de halógenos | yes |
| Voltaje nominal | <= 1000 V |
| Corriente nominal | <= 16 A |
| Resistencia térmica | -25 - +60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Protección mecánica | IK07 |

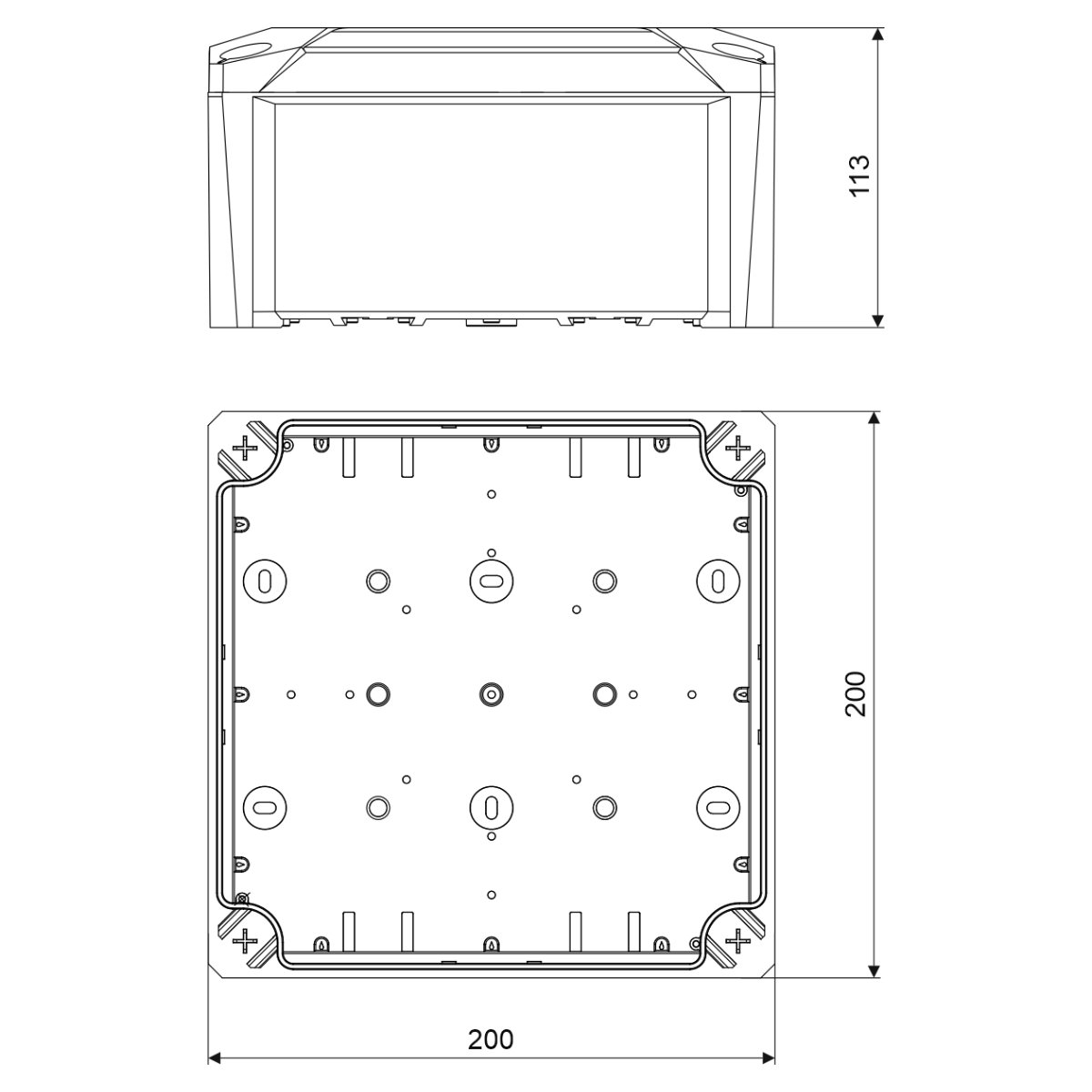

| Ancho | 200 mm |
| Altura | 200 mm |
| Profundidad | 113 mm |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP66 |
| La descripción del embalaje sealing plugs, external handle of the box and string to hold the lid are inserted into the box, the box is covered with a lid, wrapped in foil | |

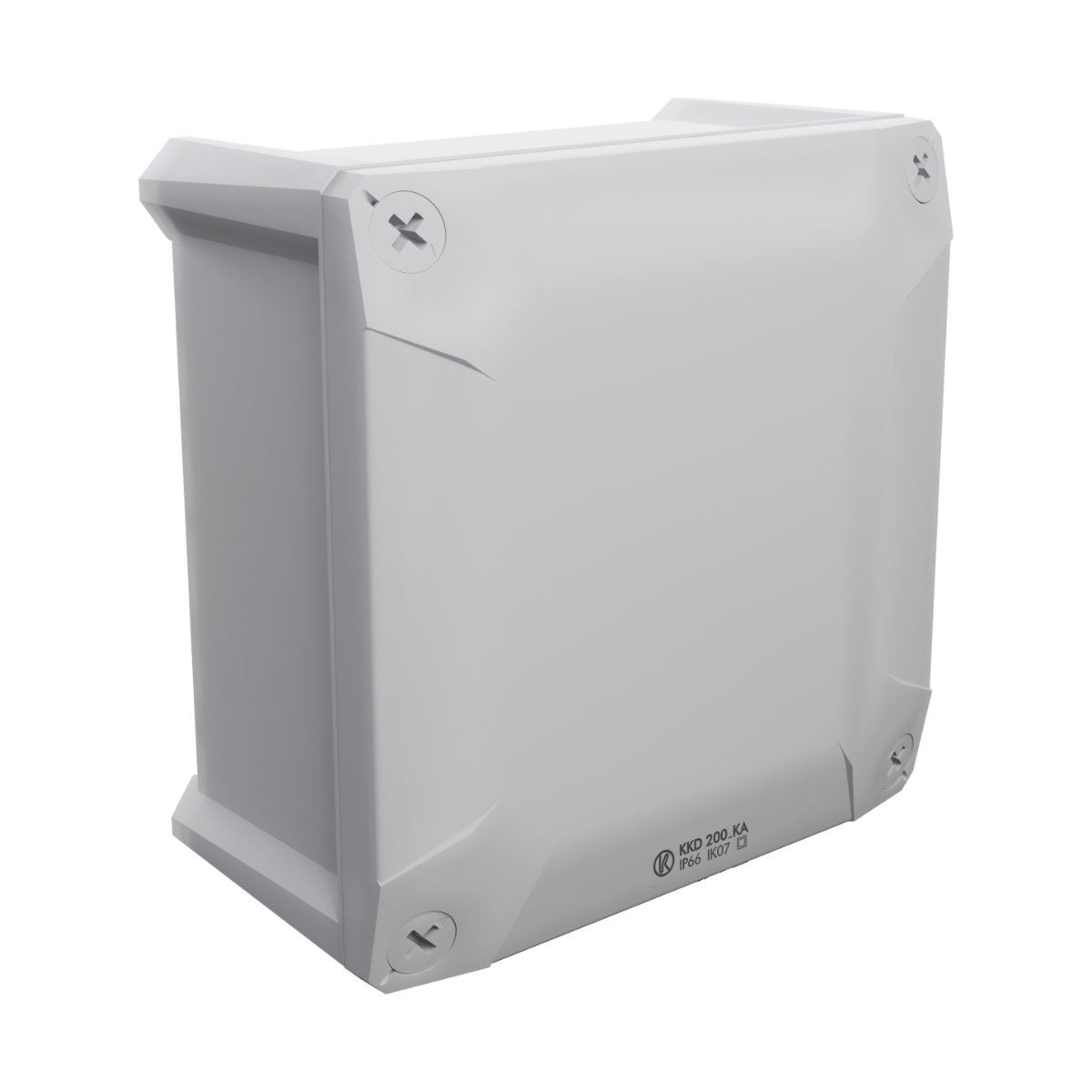

Box designed for distribution systems with voltages up to 1000 V. Made of UV-resistant material. Solid walls without pre-marked entries, suitable for using PPK.. sealing grommet. Designed for direct installation on the surface without the need for an insulating pad. A lid fixed with bayones. Possibility of placing a seal on a closed box.
KKD200_EN
