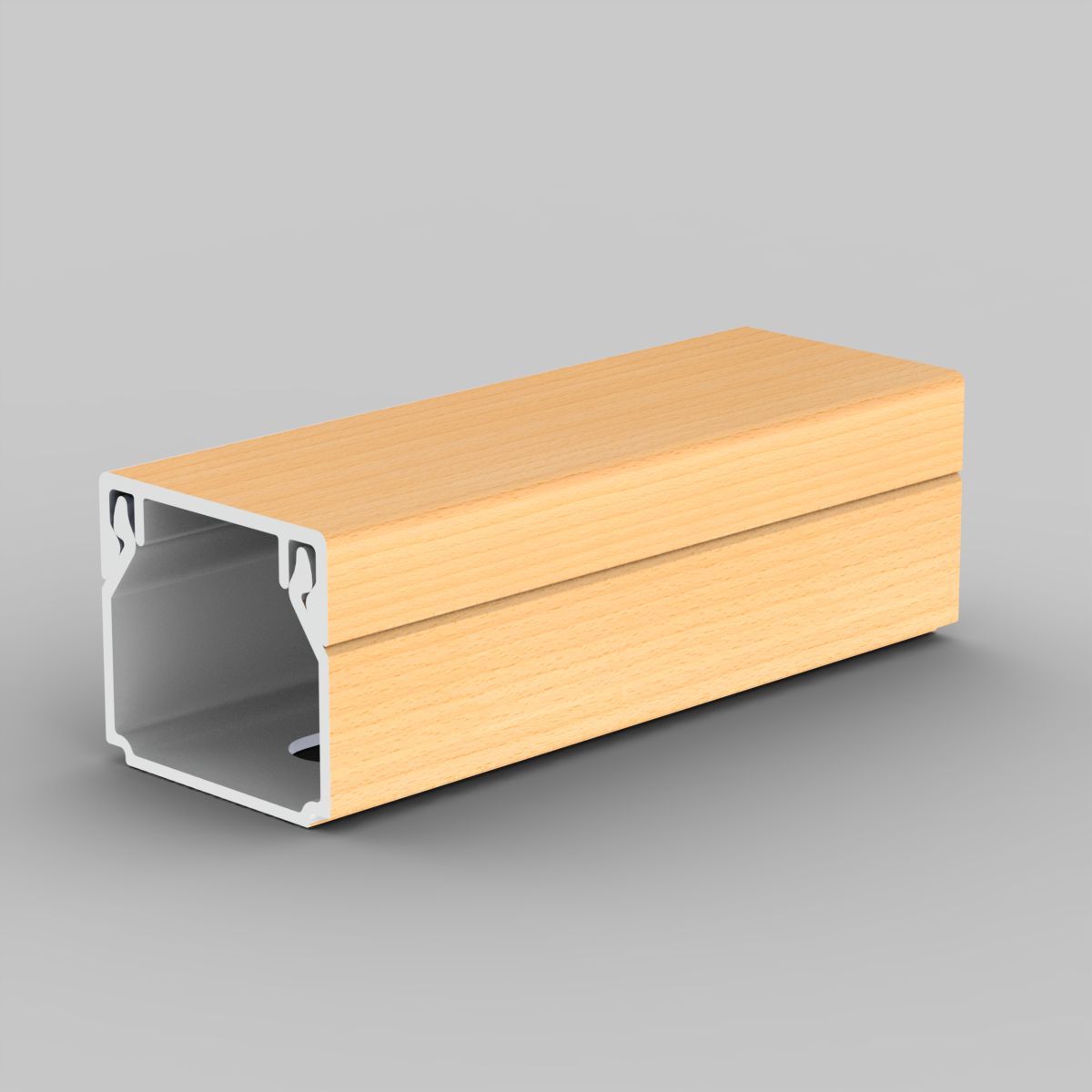

illustrative picture
To download 3D models, please login or create an account and request access.
LHD20X20_EN
| Código EAN | 8595057656659 |
| Elcodigo aduanero | 39259020 |
| Peso | 0,16 kg/m |
| Color | birch pink |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Protección mecánica | IK06 |
| Resistencia al impacto | 0,5 J |
| Ancho | 21 mm |
| Altura | 19 mm |
| Longitud | 2 m |
| Área interior | 260 mm2 |
| Comprensión The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 40 |
| Corresponde a las normas | ČSN EN 50 085-1 |
| La descripción del embalaje | package - cardboard |
Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. 8824/12 transition branching intended for transition to the LP 80X25 trunking.
