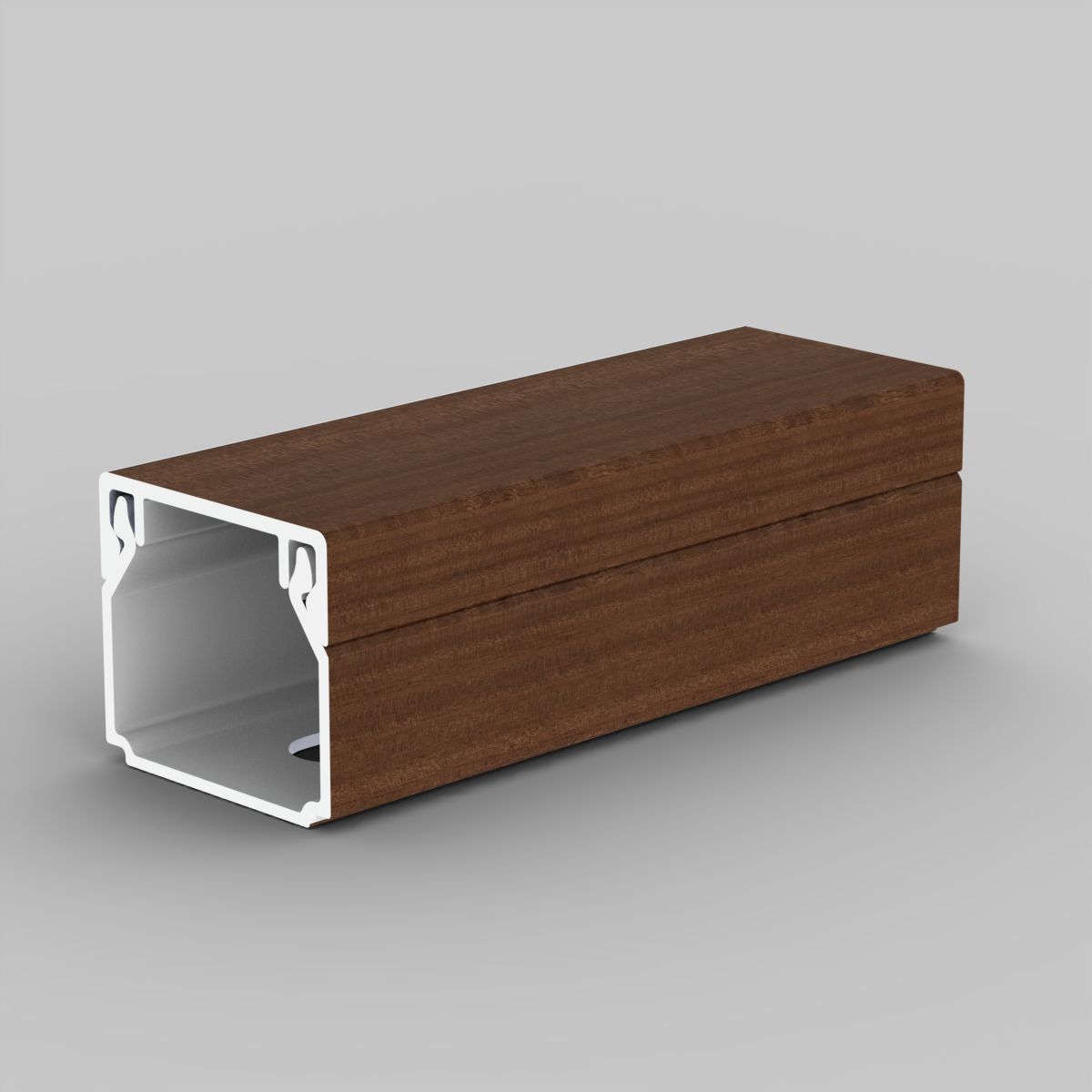

illustrative picture
To download 3D models, please login or create an account and request access.
LHD20X20_EN
| Código EAN | 8595057656666 |
| Elcodigo aduanero | 39259020 |
| Peso | 0,1370 kg/m |
| Color | dark oak |
| Material | PVC |
| Material sin plomo | yes |
| Autoextinguible | 30 s |
| Resistencia térmica | -5 - 60 °C |
| Ensayo de hilo incandescente | 850 °C |
| Protección mecánica | IK06 |
| Resistencia al impacto | 0,5 J |
| Ancho | 21 mm |
| Altura | 19 mm |
| Longitud | 2 m |
| Área interior | 260 mm2 |
| Comprensión The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Uso They are resistant to aggressive and chemical environment. They are not resistant to UV rays and they are not suitable for the outside environment. | |
| Áreas con el peligro de explosión Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clase de reacción al fuego | A1 - F |
| Clase de protección | IP 40 |
| Corresponde a las normas | ČSN EN 50 085-1 |
| La descripción del embalaje | package - cardboard |
Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. 8824/12 transition branching intended for transition to the LP 80X25 trunking.
