Código EAN8595568904201
Elcodigo aduanero73269098
Peso0,96 kg/pcs
Tratamiento superficialHot Dip Galvanized
Resistencia térmica-50 - 150 °C
Corresponde a las normasČSN EN 61537
Espesor de la chapa metálica2 mm
Cantidad de tornillos para la conexión8
Dimensión A315 mm
Dimensión H64 mm

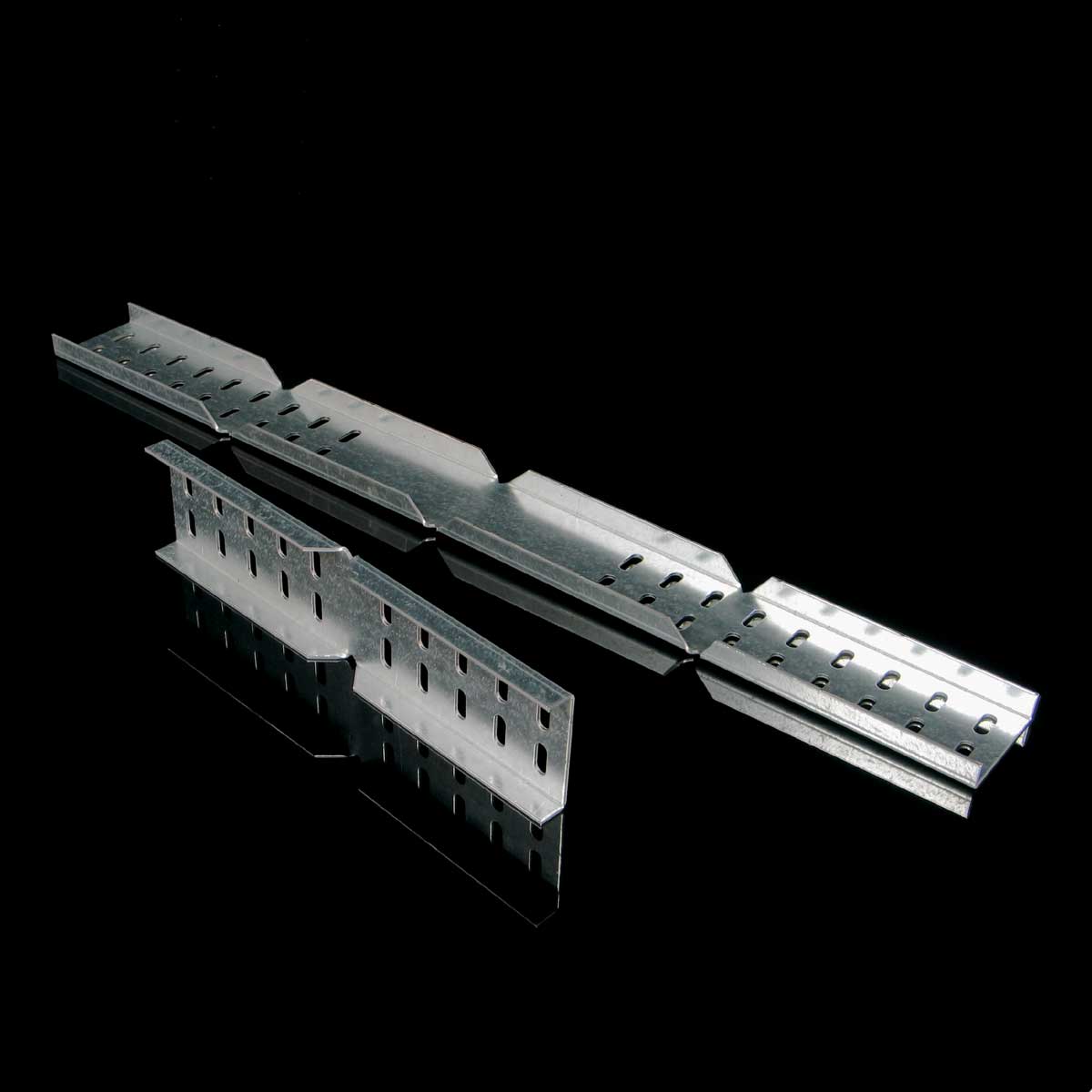

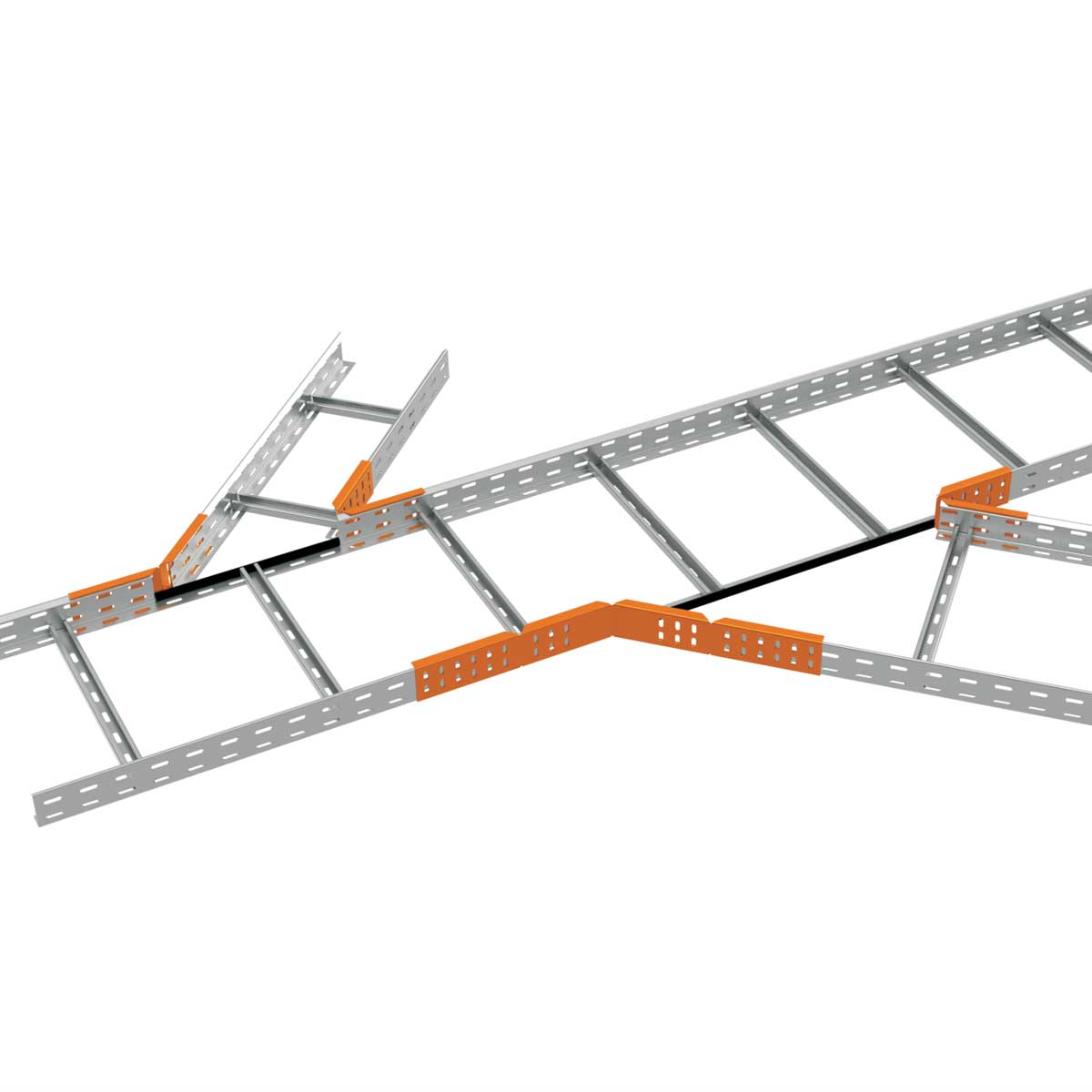

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
