NIXO90_EN
| Código EAN | 8595057671492 |
| Elcodigo aduanero | 73089059 |
| Peso | 3,07 kg/pcs |
| Tratamiento superficial | Stainless steel AISI 304 |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 0,8 mm |
| Cantidad de tornillos para la conexión | 8 |
| Dimensión A | 503 mm |
| Dimensión B | 663 mm |
| Dimensión H | 102 mm |
| Para la anchura de la bandeja | 500 mm |
| Para la altura de la bandeja | 100 mm |

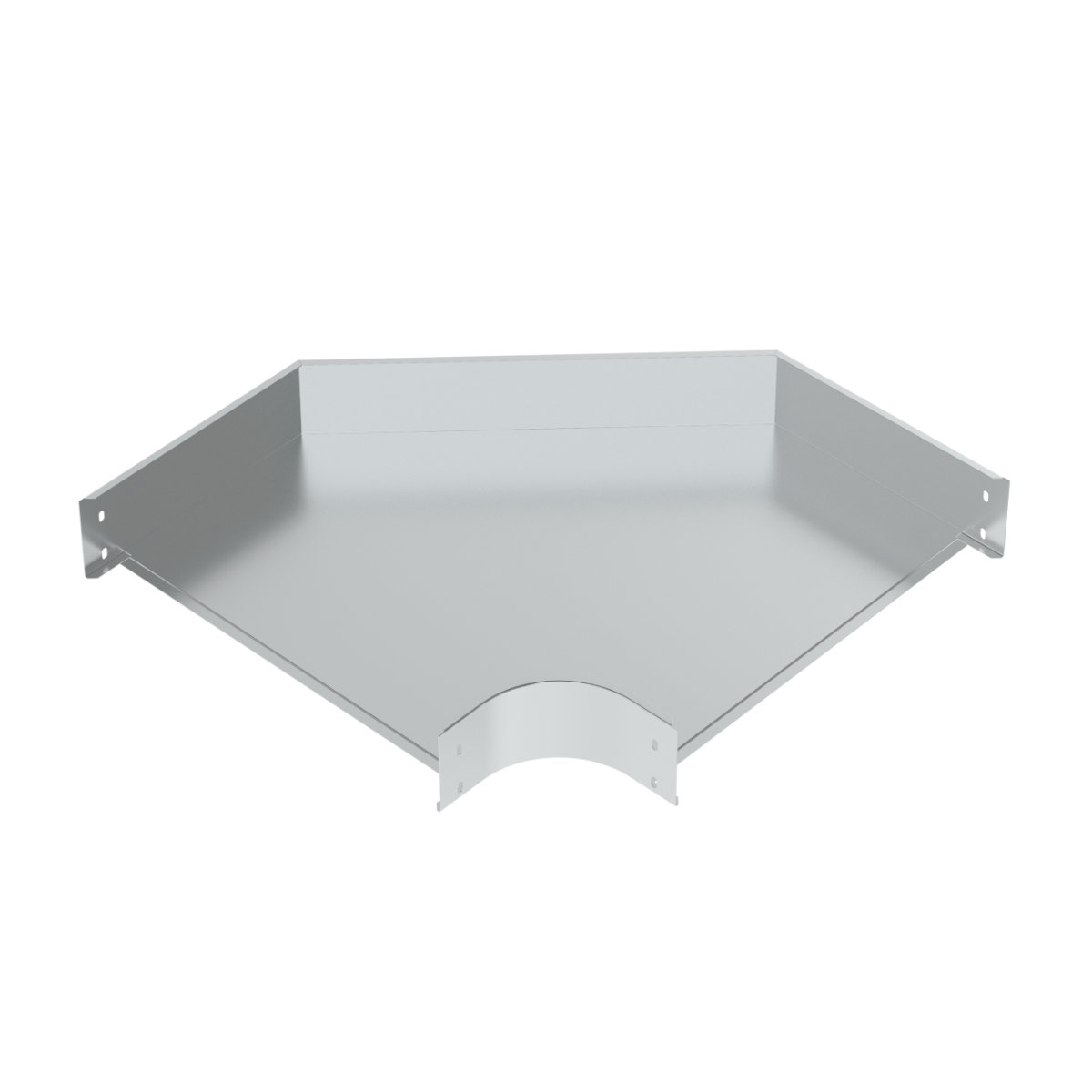

The arc is used to create a 90° branch in a horizontal direction. The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10. On the NIXO 90X100X500 arc the outer right angle of the sides is replaced by a chamfer.
