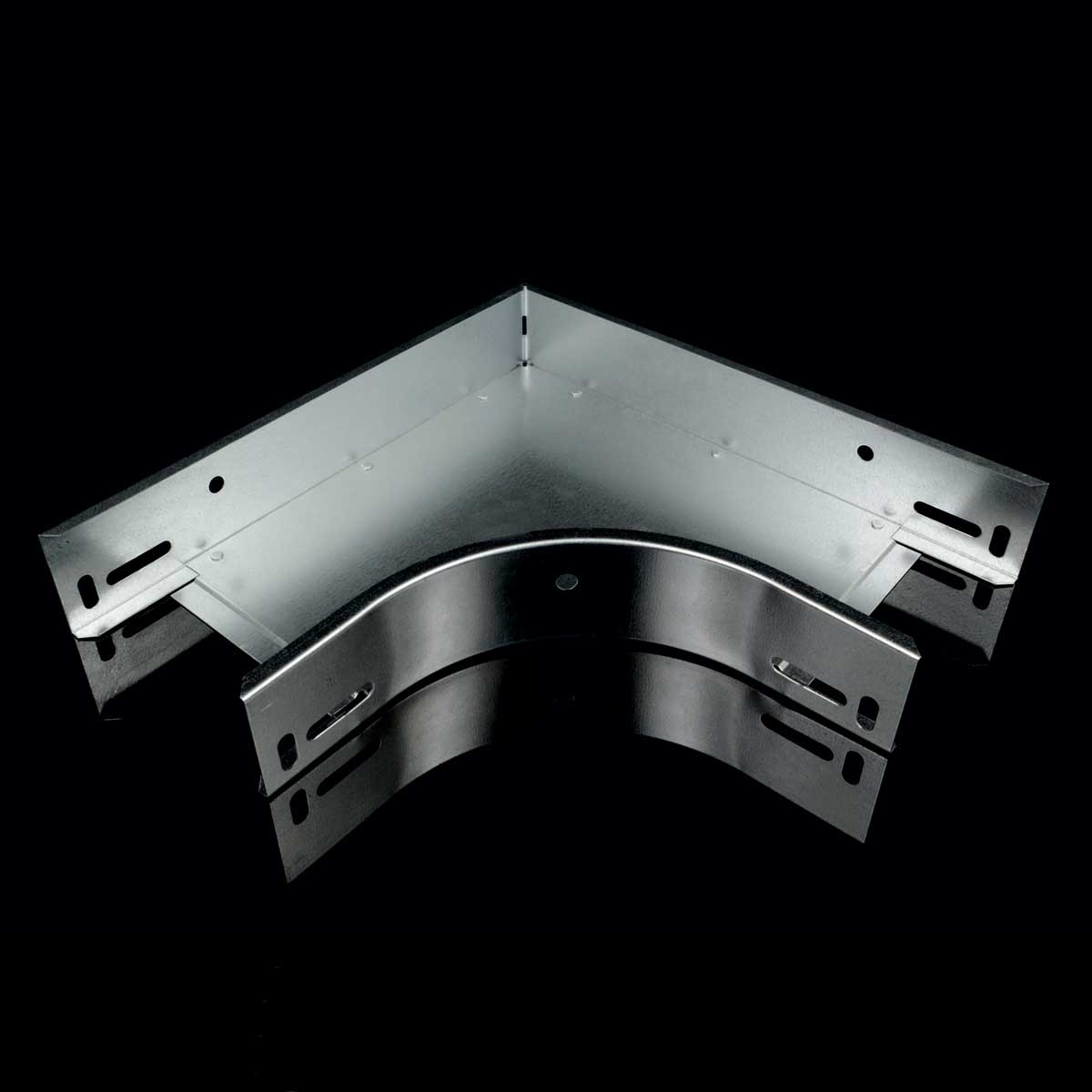

illustrative picture
To download 3D models, please login or create an account and request access.

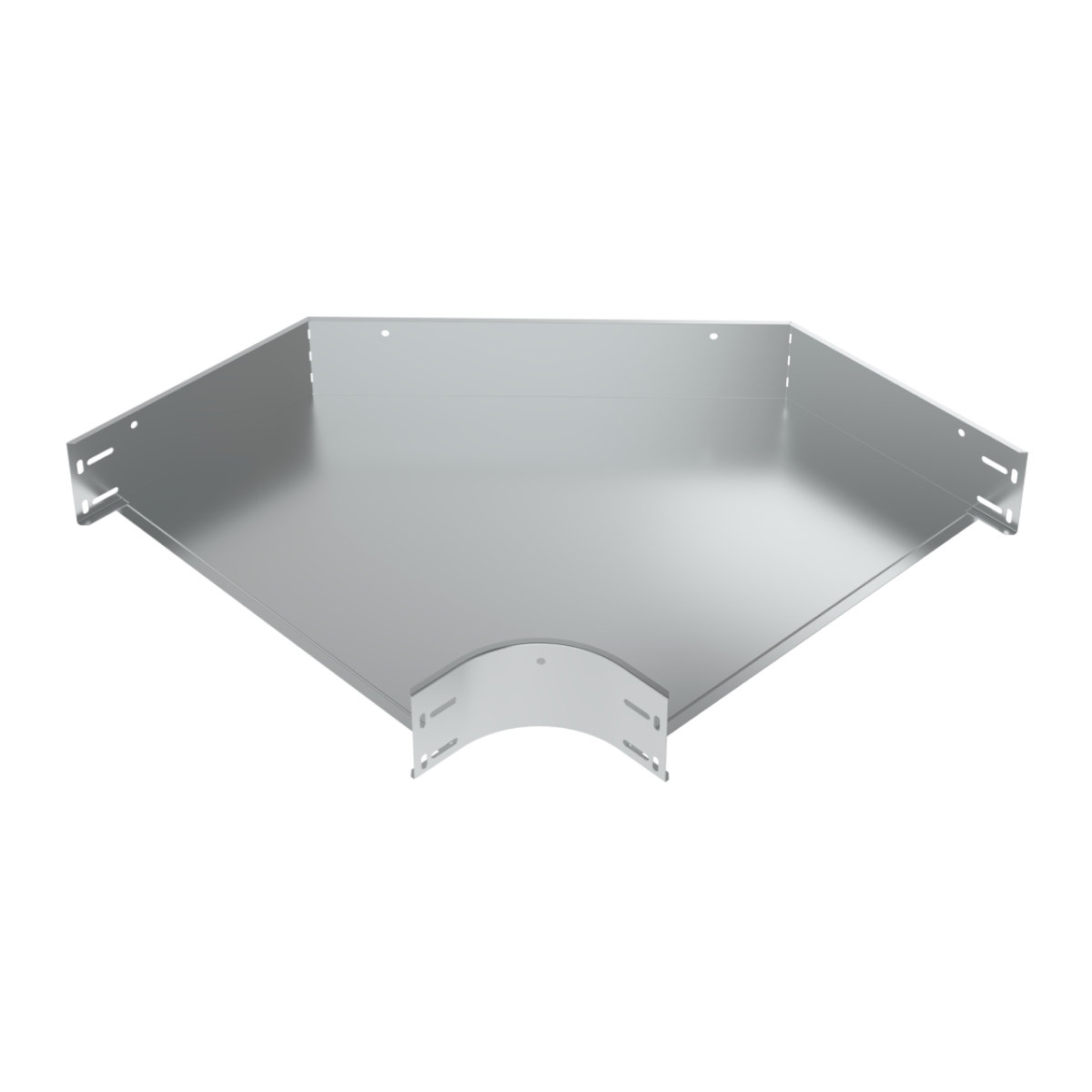

NO90_M3_EN
| Código EAN | 8595057678064 |
| Elcodigo aduanero | 73089059 |
| Peso | 3,47 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 0,7 mm |
| Cantidad de tornillos para la conexión | 8 |
| Dimensión A | 502 mm |
| Dimensión B | 660 mm |
| Dimensión H | 102 mm |
| Para la anchura de la bandeja | 500 mm |
| Para la altura de la bandeja | 100 mm |

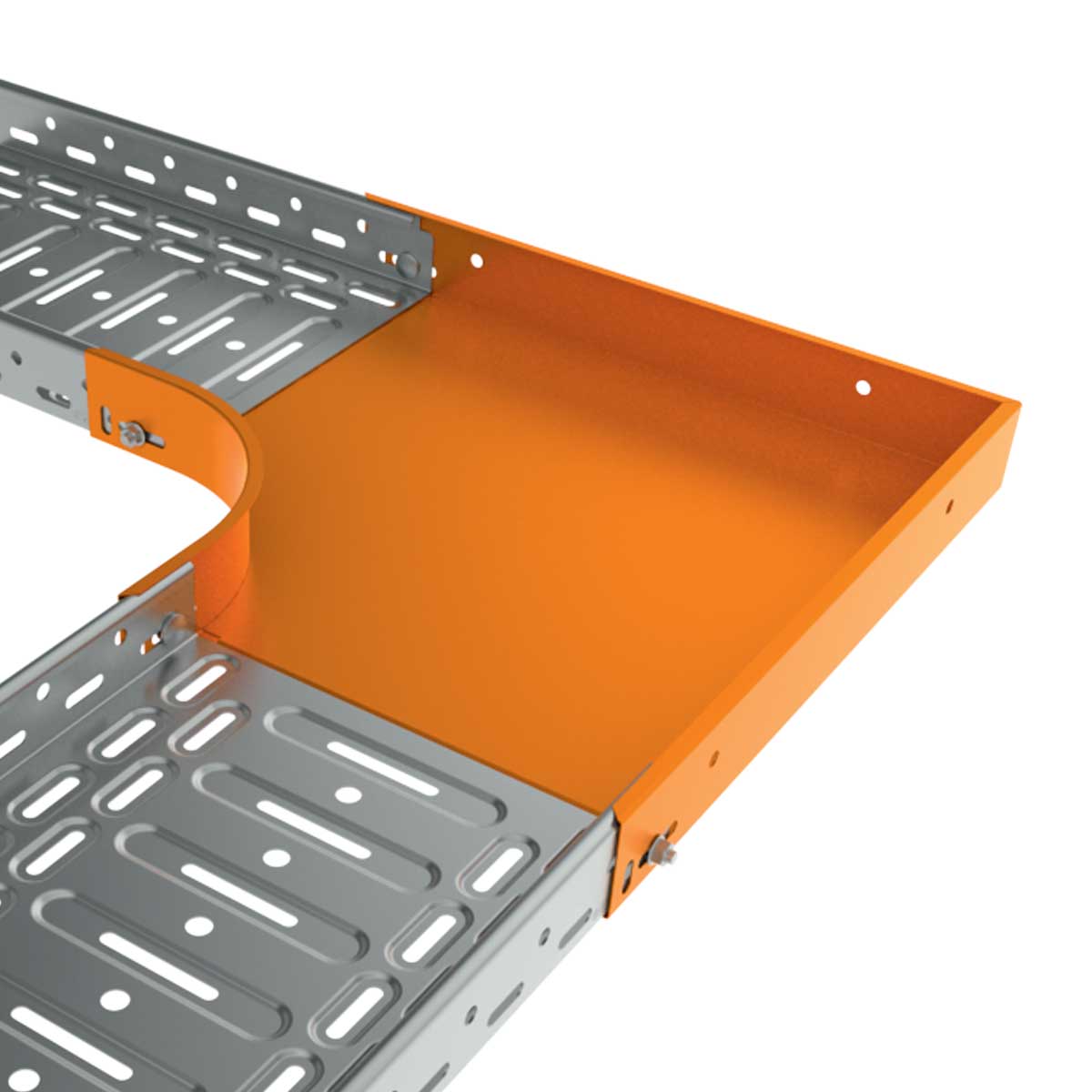

The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NSM 6X10. For the elbows the outer right angle of the side walls is replaced by skewed cut.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
