| Código EAN | 8595057654464 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,0130 kg/unidad |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - +150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

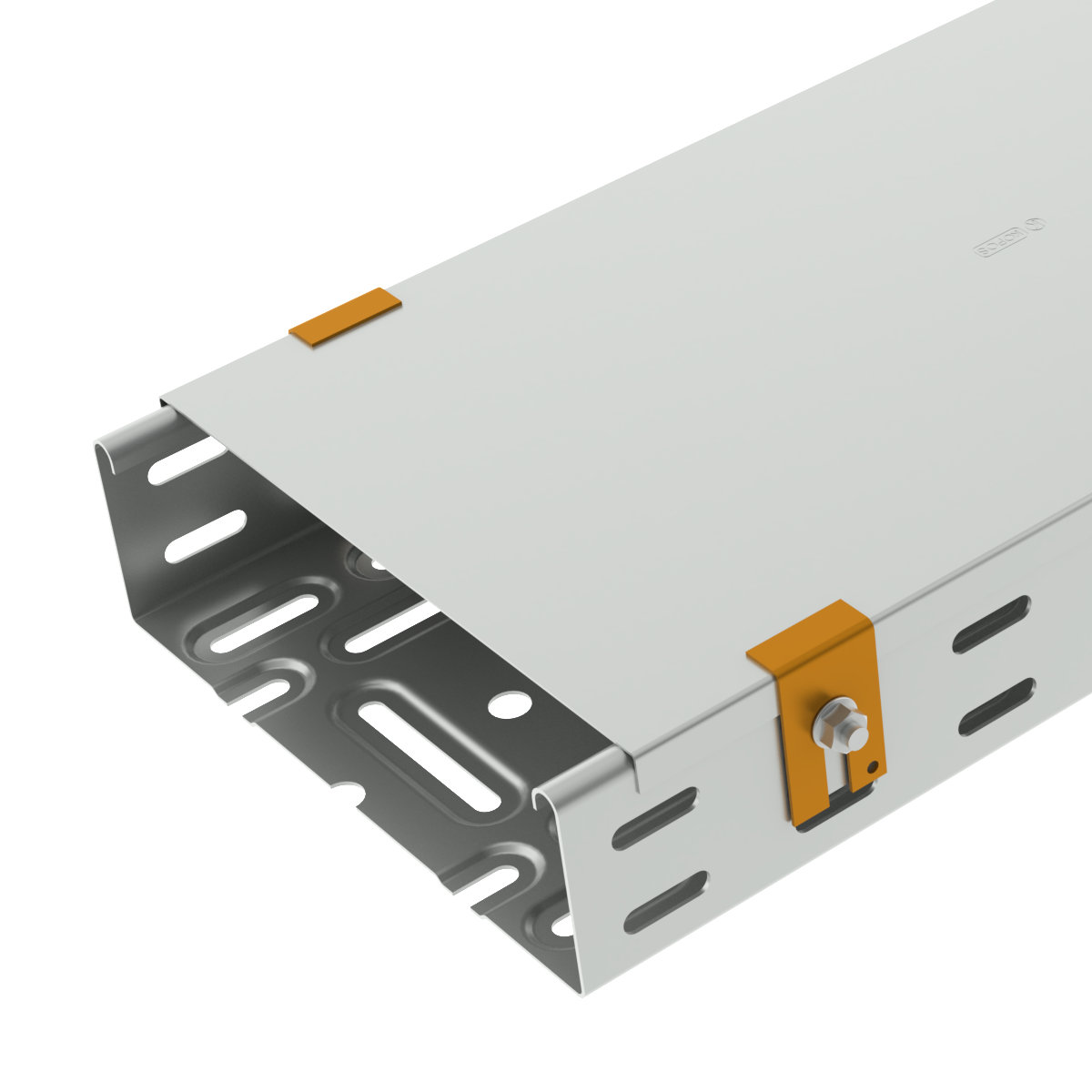

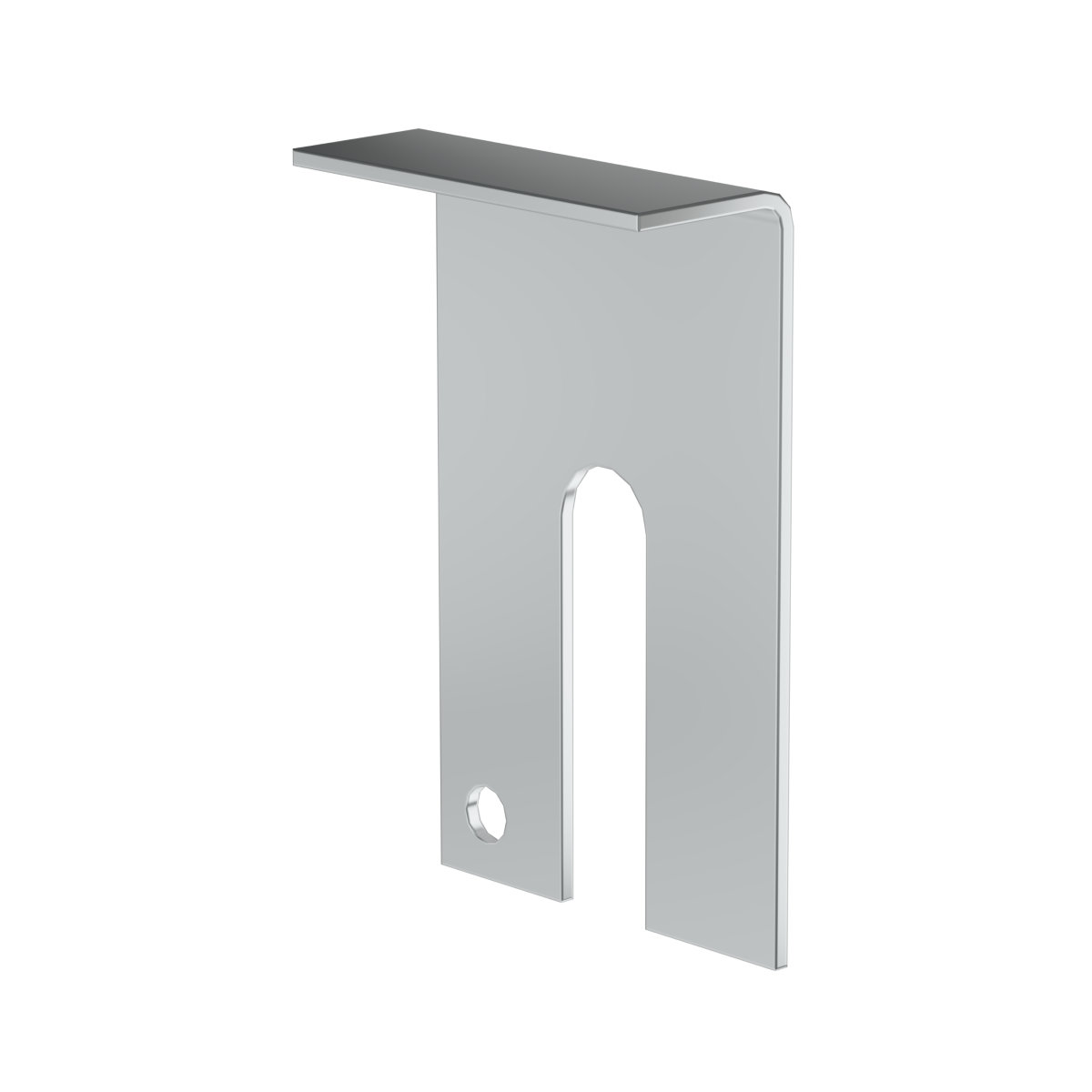

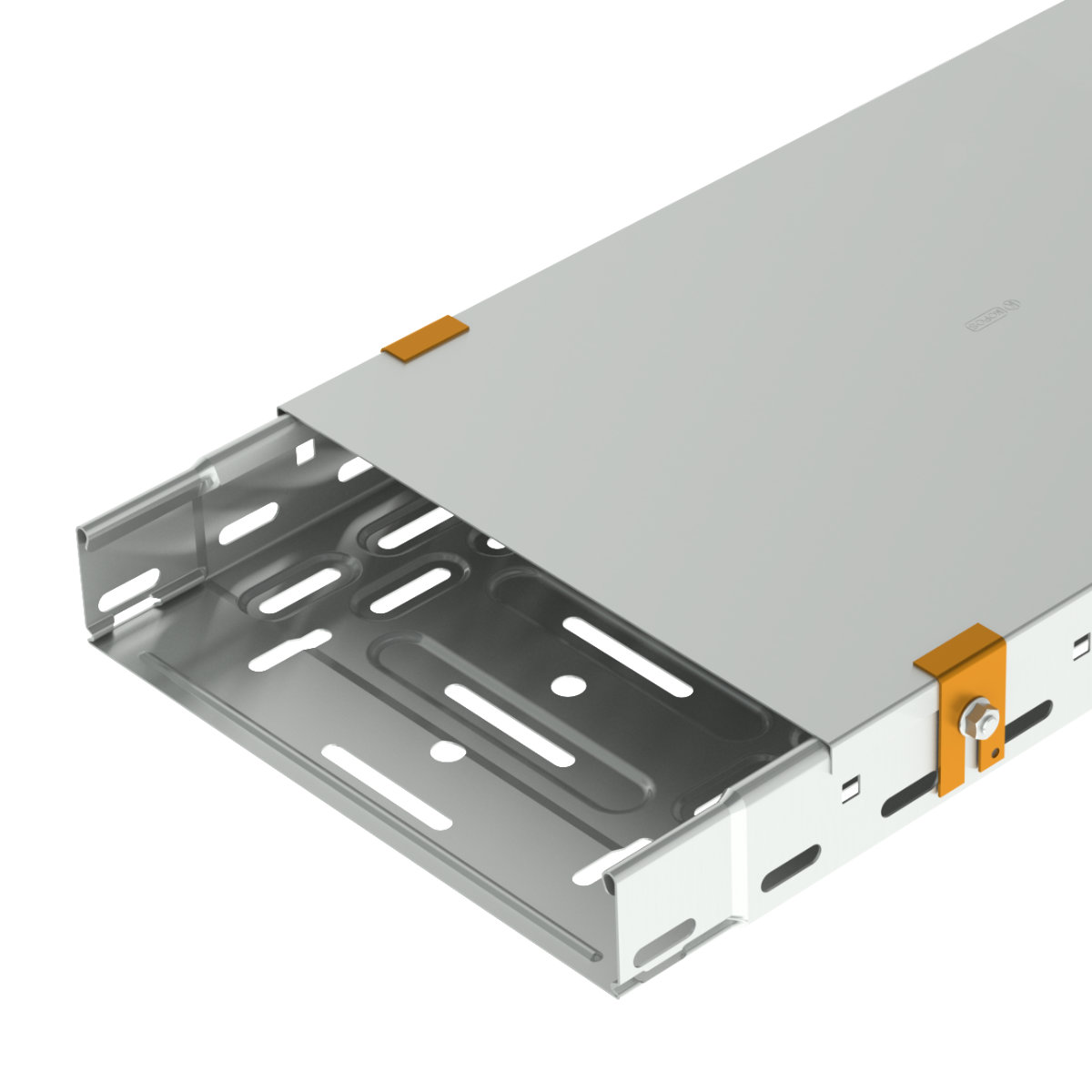

Used to fasten covers to trays or accessories. The fixing use the bolt NSM 6X10. t is possible to use the same bold used to fix the connection between the trays or accessories to fasten the cover fixture. For non-perforated trays, a square hole in the upper part of the side of the cable tray is used for fastening.
Note for system with maintained functionality in fire:
You find more information in the catalogue Cable management systems - Fire resistant systems.
NUV_EN
