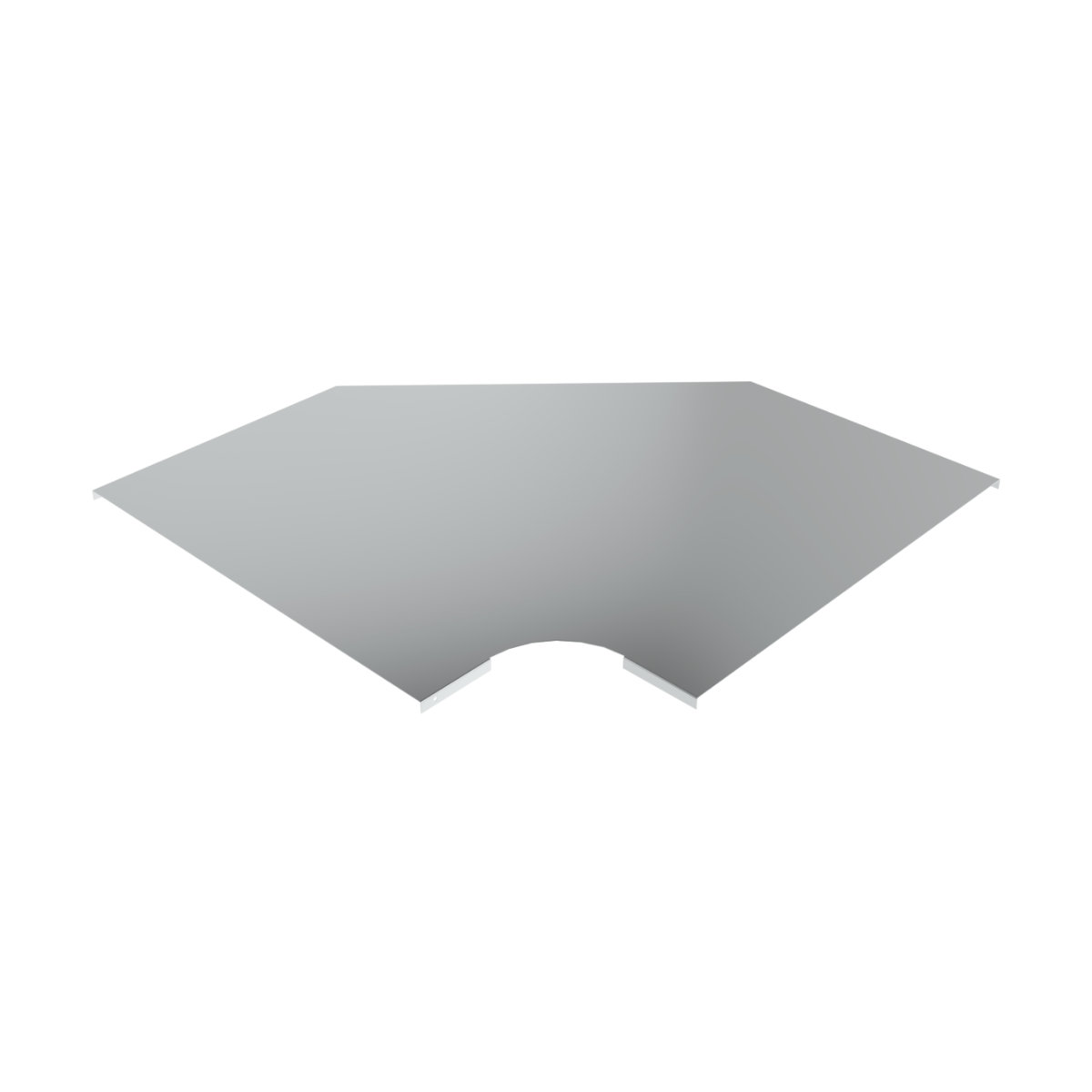

illustrative picture
To download 3D models, please login or create an account and request access.
VO90_EN
| Código EAN | 8595057637009 |
| Elcodigo aduanero | 73089059 |
| Peso | 4,36 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Funcionalidad en fuego | P90-R, E90, PS90 |
| Corresponde a las normas | ČSN EN 61537 |
| Estándares de resistencia al fuego | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Espesor de la chapa metálica | 1 mm |
| Dimensión A | 604 mm |
| Dimensión B | 804 mm |
| Dimensión H | 15 mm |
| Para la anchura de la bandeja | 600 mm |
To fix the cover use 6 pcs of cover fixutres VU. The outer right angle of the side walls is replaced by skewed cut.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
