Código EAN8595057629448
Elcodigo aduanero73269098
Tratamiento superficialNon electrolytic plating Geomet
Resistencia térmica-50 - 150 °C
Funcionalidad en fuegoP90-R, E90, PS90
Corresponde a las normasČSN EN 61537
Estándares de resistencia al fuegoČSN 73 0895, DIN 4102-12, STN 92 0205

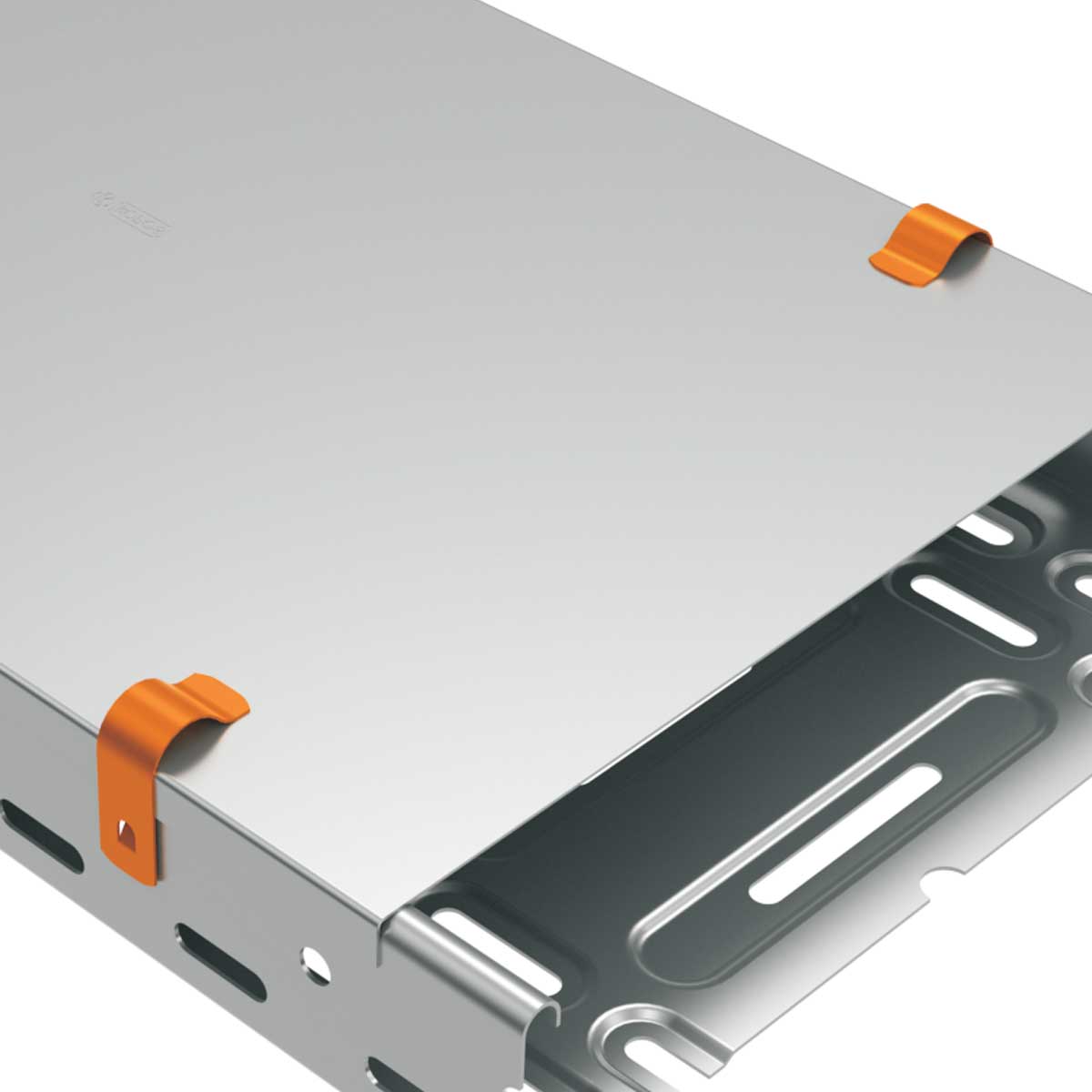

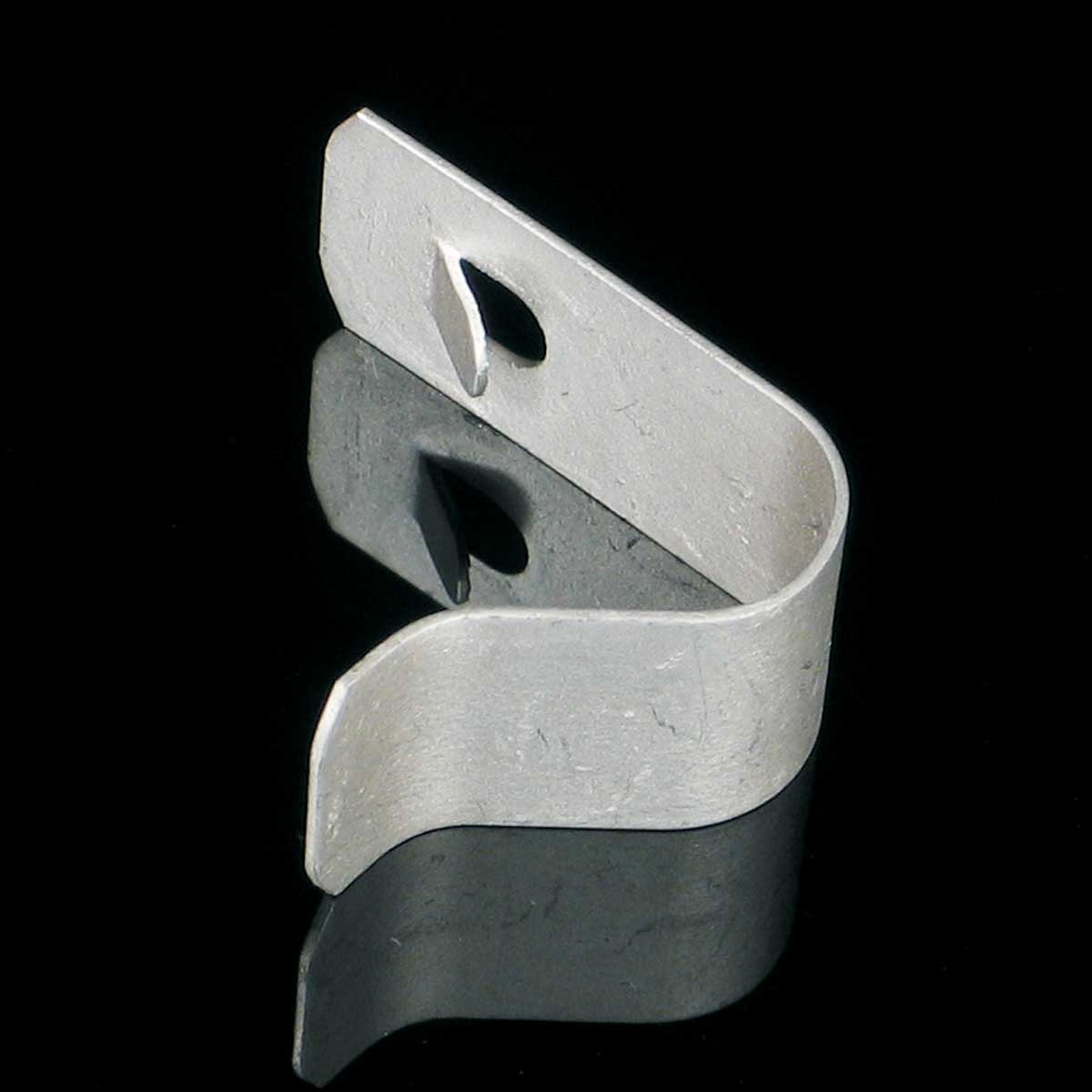

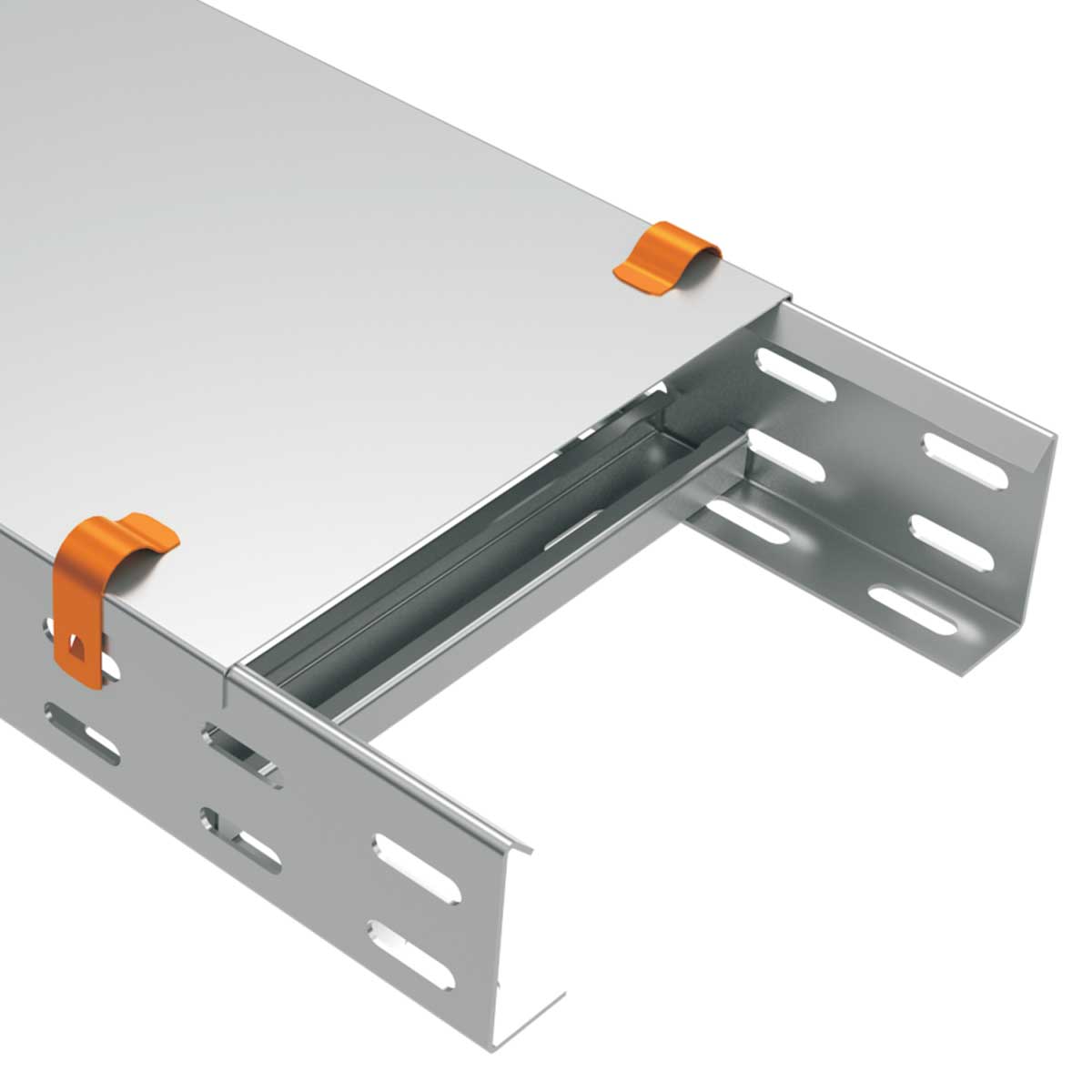

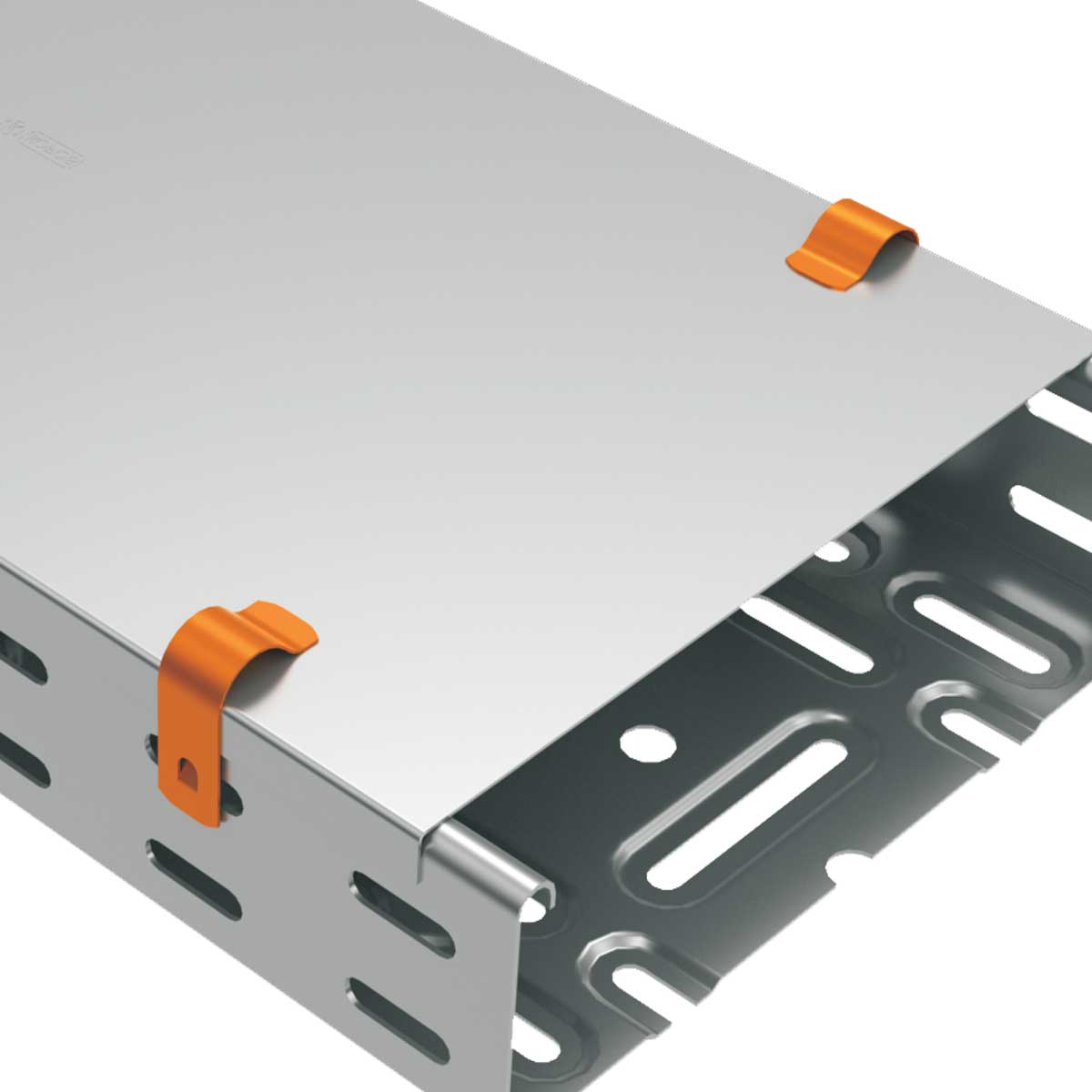

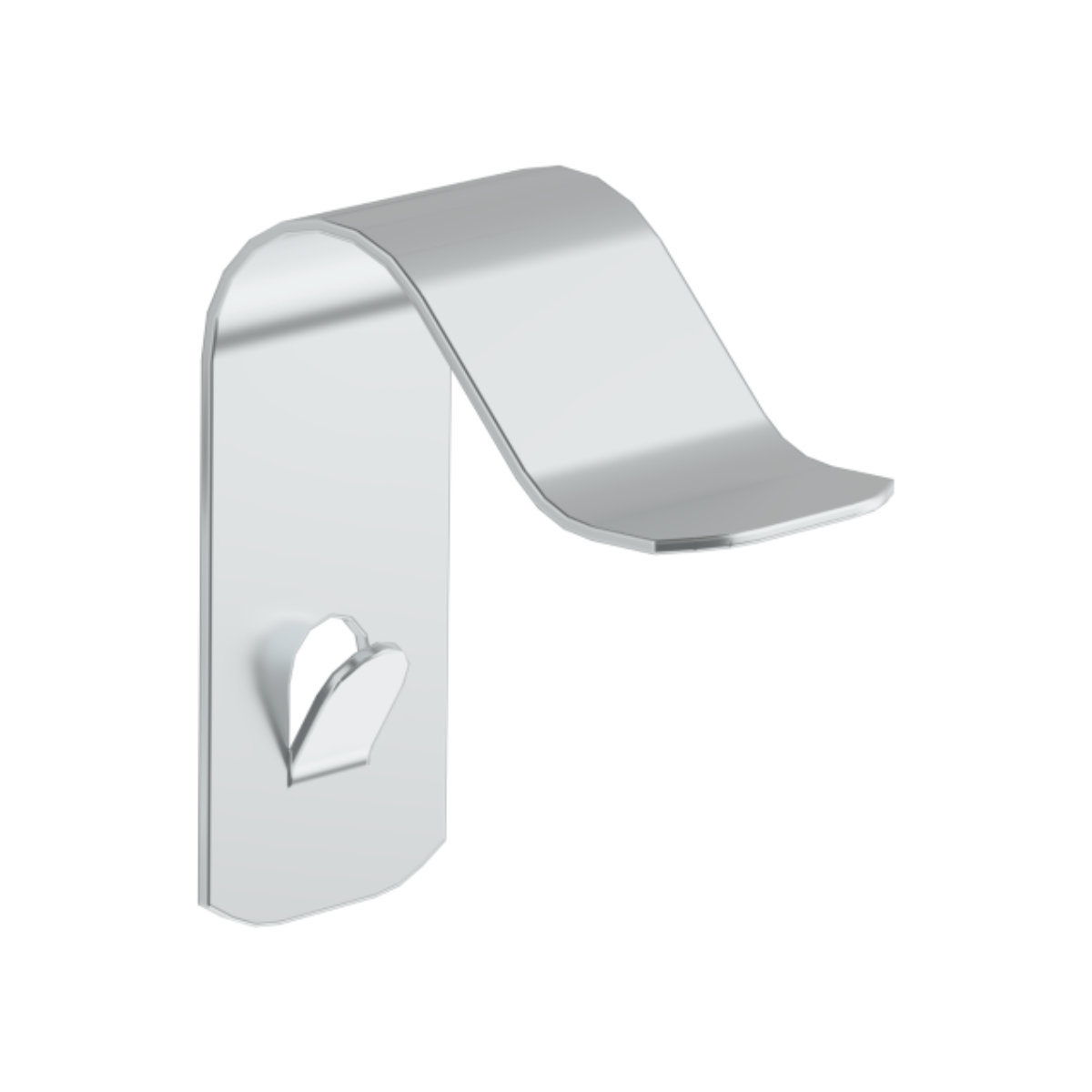

Is used for a bolt free attachment of the cover to the tray and to the accessories. The cover fixture is placed to the cover and the sidewall in the place of the opening and it is slightly pressed so that the fixture lock slides into the opening. Used for perforated and non-perforated trays; non-perforated trays have holes specially designed for these anchors.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
