| Código EAN | 8595568917645 |
| Elcodigo aduanero | 73089059 |
| Peso | 0,5530 kg/unidad |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - +150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 0,8 mm |
| Dimensión A | 372 mm |
| Dimensión B | 127 mm |
| Dimensión H | 102 mm |
| Para la anchura de la bandeja | 125 mm |
| Para la altura de la bandeja | 100 mm |

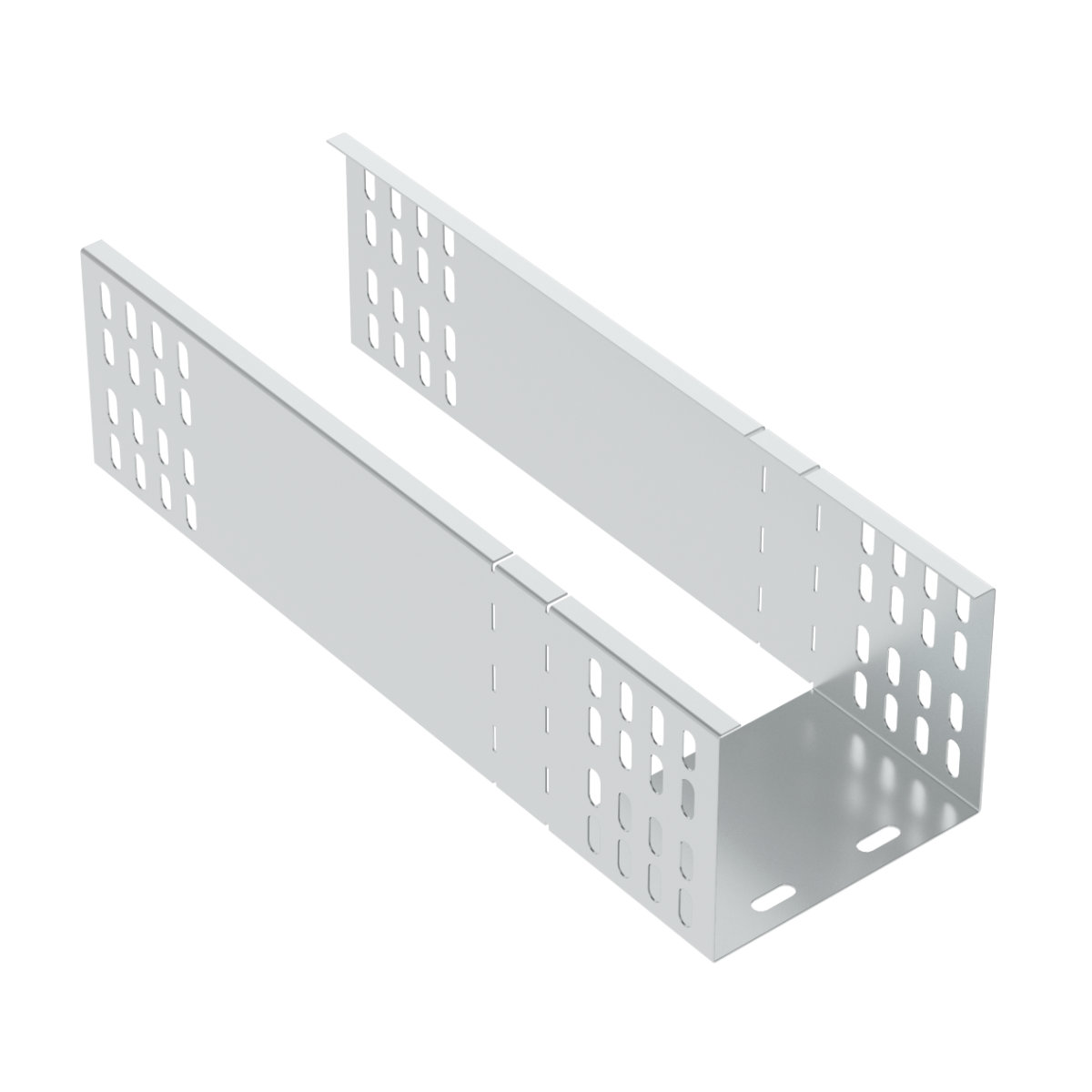

This part enables a vertical route to be switched to horizontal. Particularly suitable for the main cable route, e.g. to machines or other equipment. Used together with a downward arc. Protected by industrial model.
