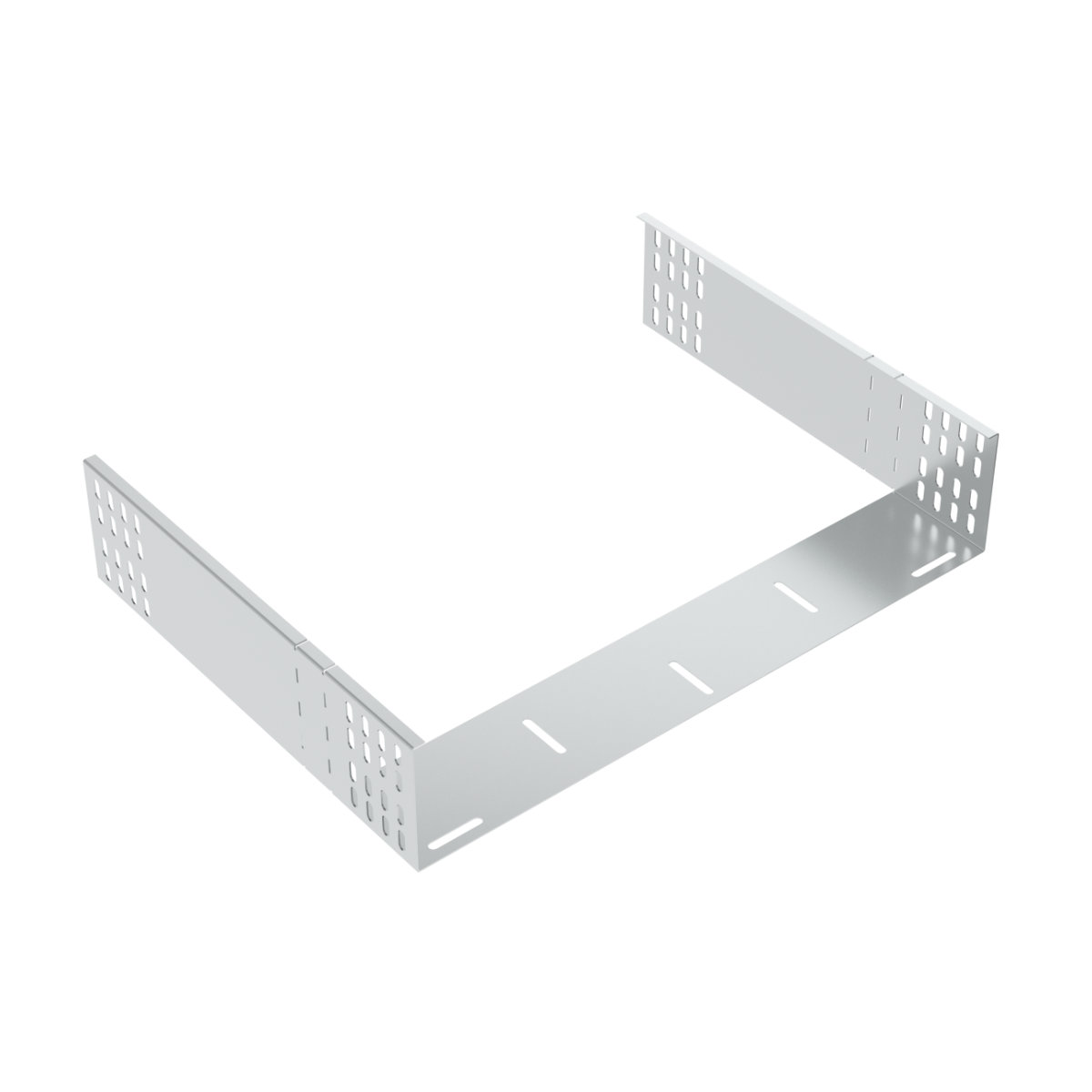

illustrative picture
To download 3D models, please login or create an account and request access.
OSHK_EN
| Código EAN | 8595568917690 |
| Elcodigo aduanero | 73089059 |
| Peso | 1,32 kg/pcs |
| Tratamiento superficial | Hot Dip Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,2 mm |
| Dimensión A | 372 mm |
| Dimensión B | 502 mm |
| Dimensión H | 102 mm |
| Para la anchura de la bandeja | 500 mm |
| Para la altura de la bandeja | 100 mm |

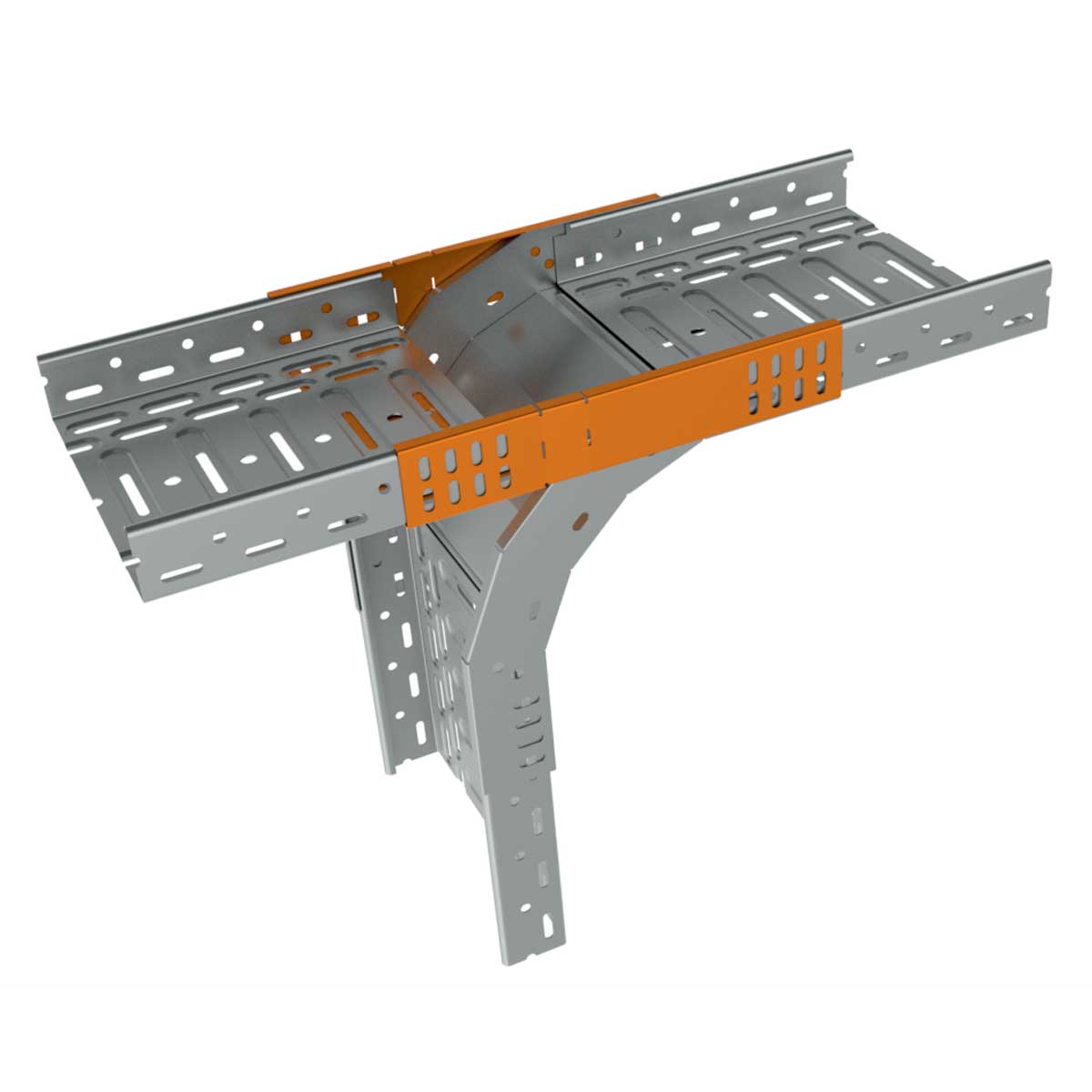

This part enables a vertical route to be switched to horizontal. Particularly suitable for the main cable route, e.g. to machines or other equipment. Used together with a downward arc. Protected by industrial model.
