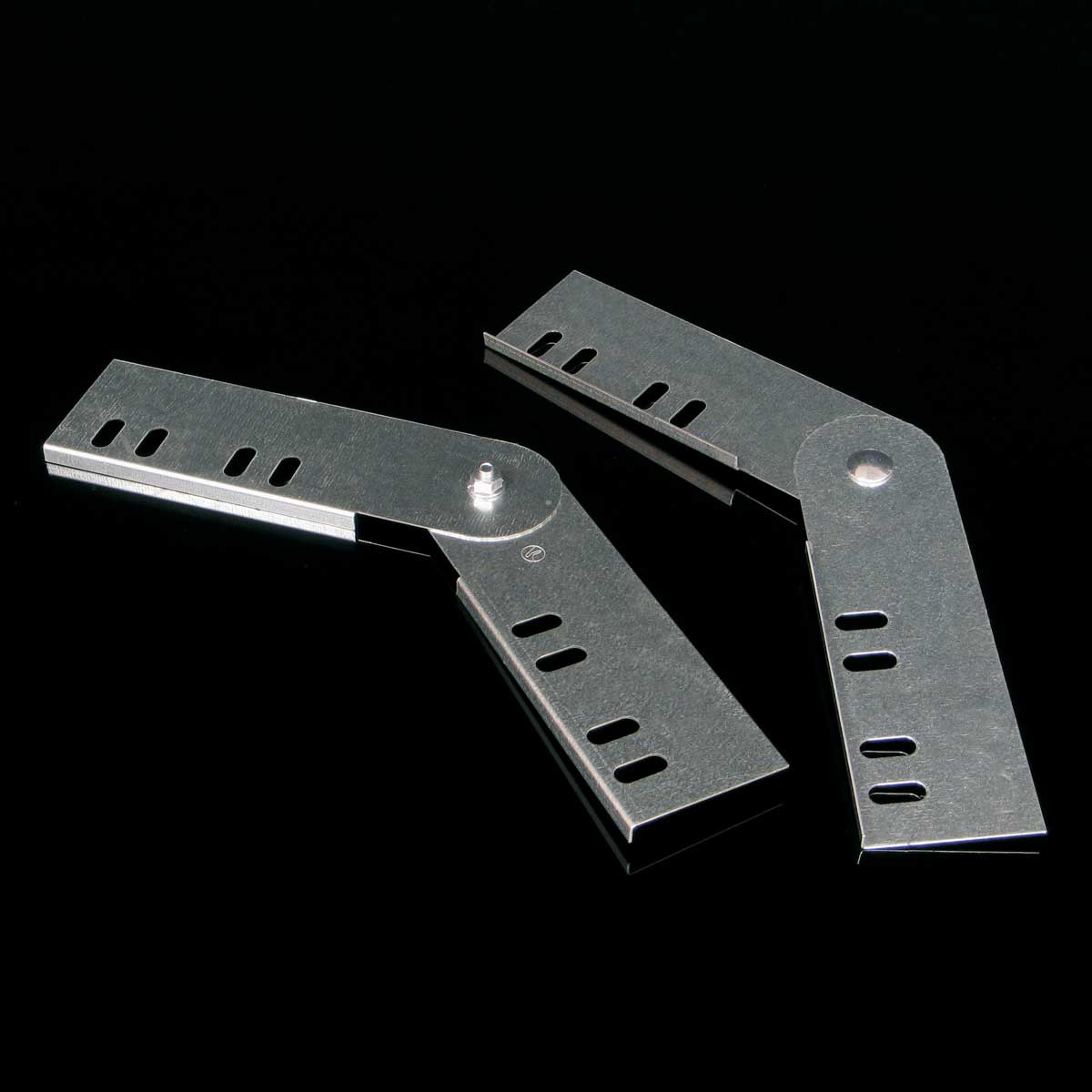

illustrative picture
To download 3D models, please login or create an account and request access.
SK_EN
| Código EAN | 8595057698635 |
| Elcodigo aduanero | 73269098 |
| Peso | 0,34 kg/pcs |
| Tratamiento superficial | Pre-Galvanized |
| Resistencia térmica | -50 - 150 °C |
| Corresponde a las normas | ČSN EN 61537 |
| Espesor de la chapa metálica | 1,2 mm |
| Cantidad de tornillos para la conexión | 8 |
| Dimensión H | 93 mm |
| Para la altura de la bandeja | 100 mm |
For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
