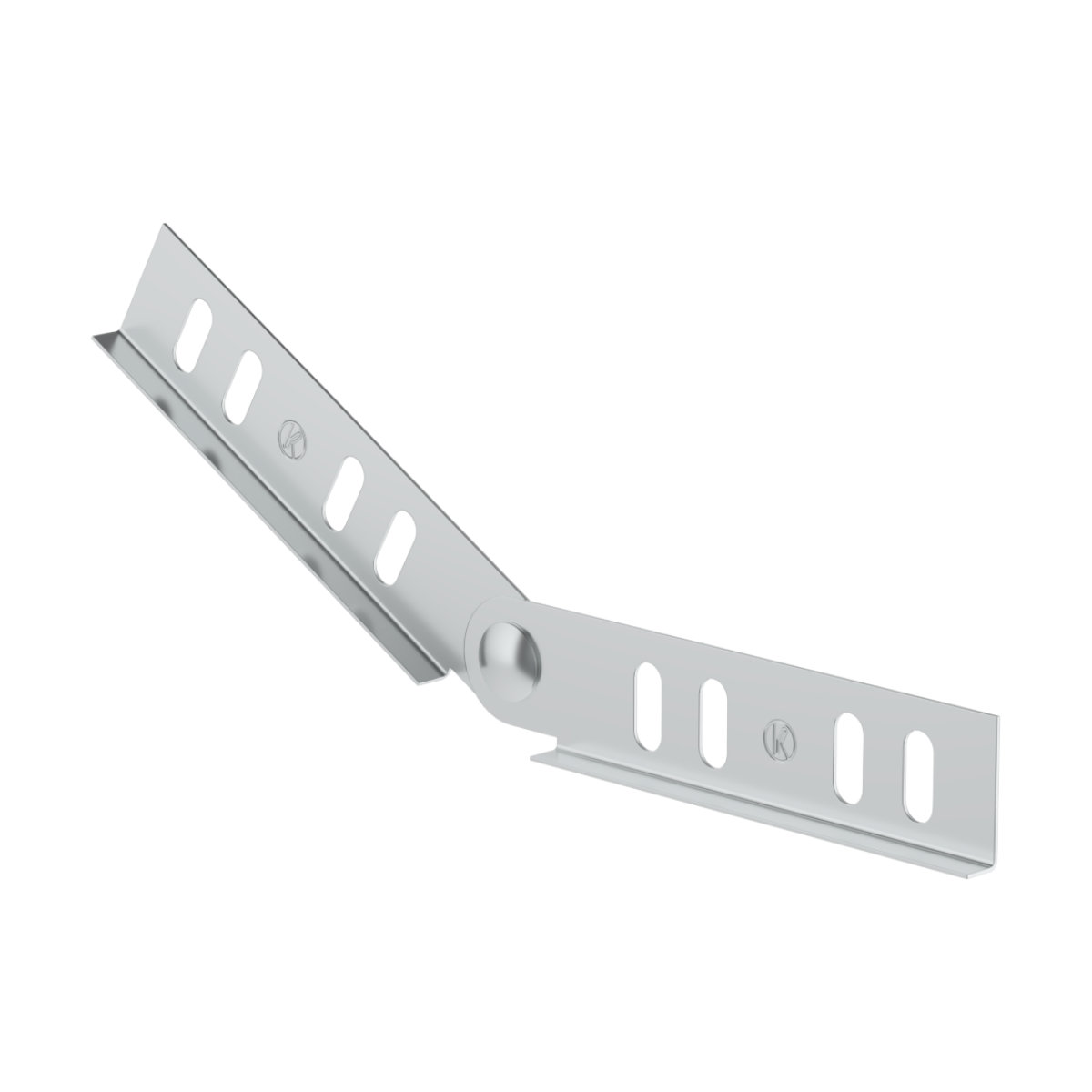

illustrative picture
SK 35_S
SK 35_S
SK 35_S
To download 3D models, please login or create an account and request access.
Código EAN8595057638136
Elcodigo aduanero73269098
Peso0,05 kg/pcs
Tratamiento superficialPre-Galvanized
Resistencia térmica-50 - 150 °C
Corresponde a las normasČSN EN 61537
Espesor de la chapa metálica0,8 mm
Cantidad de tornillos para la conexión4
Dimensión H28 mm
Para la altura de la bandeja35 mm

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
