Rising elbow 90°

SO 90X60X400_F

2D
3D

Adjuntos y certificaciones

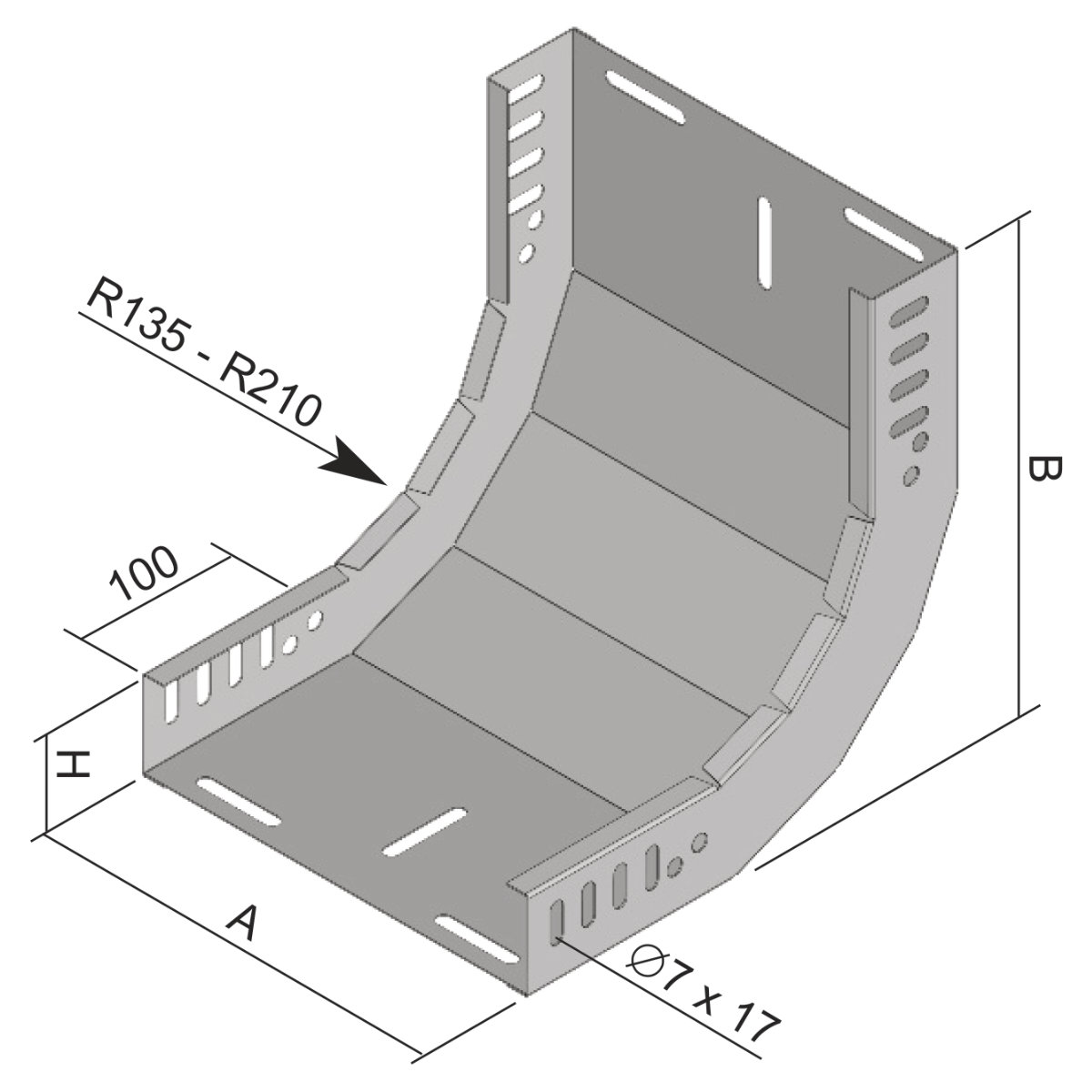

illustrative picture

SO 90X60X400_F

SO 90X60X400_F

SO 90X60X400_F

To download 3D models, please login or create an account and request access.

Hoja de datos
SO_EN
SO_PO_EN

Certificado
Certificate ESČ
Conformity declaration
Declaration REACH
Declaration RoHS

Certificación contra incendios
Certificate DIN
Certification report DIN
Conformity declaration DIN

Código EAN	8595057662872
Elcodigo aduanero	73089059
Peso	1,9732 kg/unidad
Tratamiento superficial	Hot Dip Galvanized
Resistencia térmica	-50 - +150 °C
Funcionalidad en fuego	P90-R, E90, PS90
Corresponde a las normas	ČSN EN 61537
Estándares de resistencia al fuego	ČSN 73 0895, DIN 4102-12, STN 92 0205
Espesor de la chapa metálica	1 mm
Cantidad de tornillos para la conexión	12
Dimensión A	403 mm
Dimensión B	245 mm
Dimensión H	65 mm
Para la anchura de la bandeja	400 mm
Para la altura de la bandeja	60 mm

To fix the connection use the bolt NSM 6X10

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
