Código EAN8595568926029
Elcodigo aduanero73269098
Peso0,24 kg/pcs
Tratamiento superficialNon electrolytic plating Geomet
Resistencia térmica-50 - 150 °C
Funcionalidad en fuegoP90-R, E90, PS90
Corresponde a las normasČSN EN 61537
Estándares de resistencia al fuegoČSN 73 0895, DIN 4102-12, STN 92 0205
Espesor de la chapa metálica1 mm
Cantidad de tornillos para la conexión4

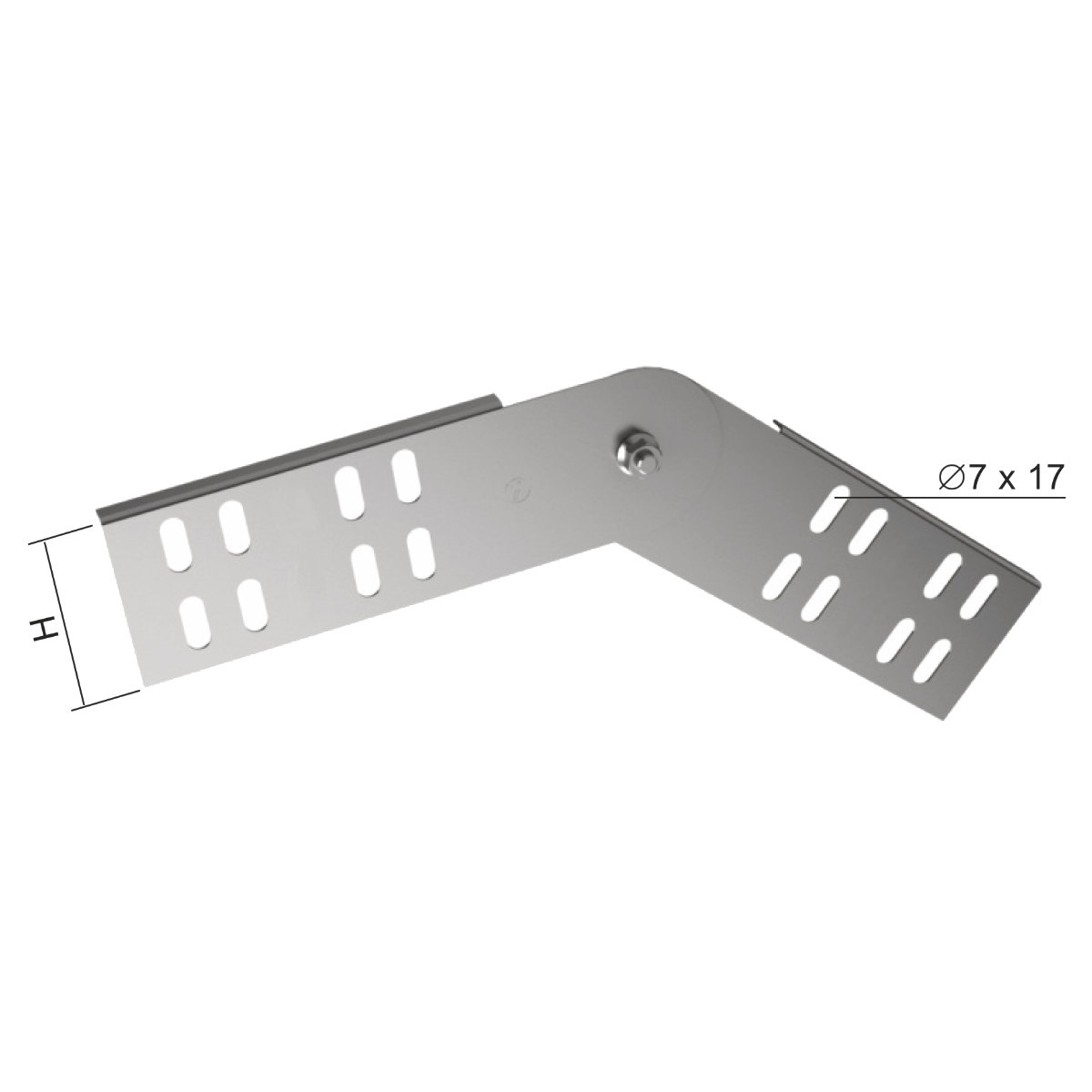

Dimensión H53 mm
Para la altura de la bandeja60 mm

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
